Removing Lower Firewall Cross Member

WARNING: This page is about a different car, the 2023 Porsche Taycan and 2022 Porsche Taycan. However, it is still accessible from the selected car via links, so may be relevant.

Loosen front firewall cross member.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

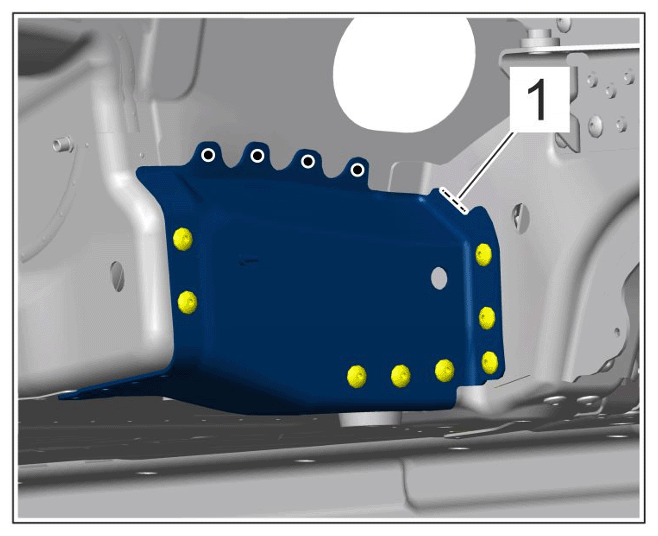

Front firewall cross member
1. 1.1 Unscrew self-tapping screws.
2. 1.2 Loosen friction element welded joints.
  > 5X00IN29 REPLACING FRICTION ELEMENT WELDED JOINT
3. 1.3 Grind down welded seam -1-
Loosen lower firewall cross member.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

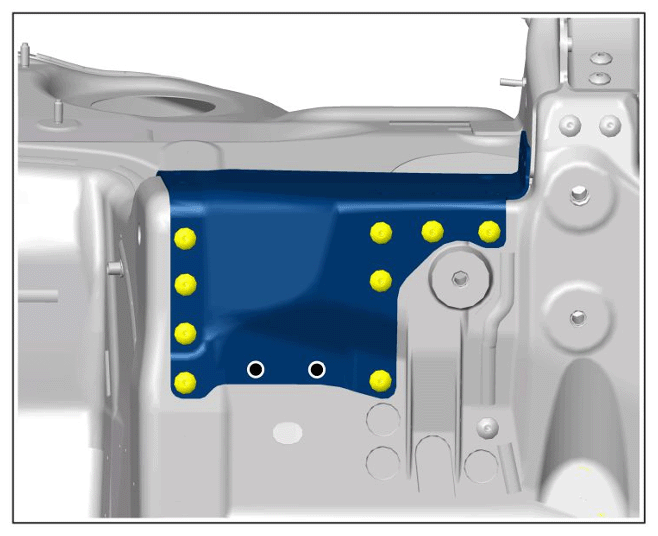

Lower firewall cross member
1. 2.1 Unscrew self-tapping screws.
2. 2.2 Loosen friction element welded joints.
  > 5X00IN29 REPLACING FRICTION ELEMENT WELDED JOINT
Heat bonding areas using > V.A.G 1416 - hot-air blower .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

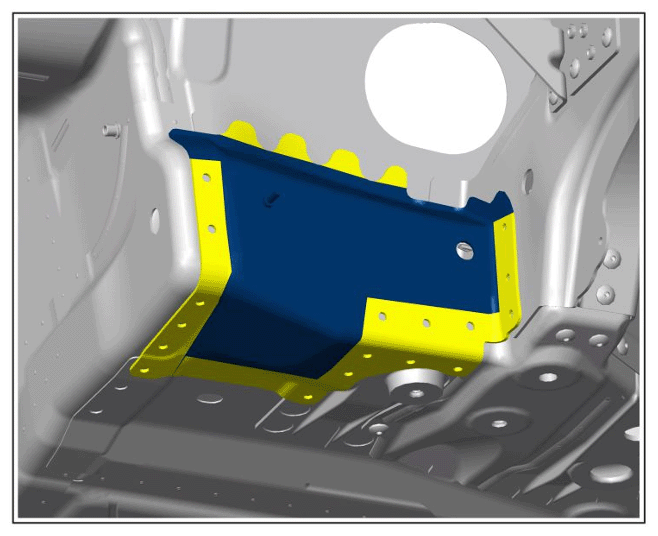

Bonding areas
Remove lower firewall cross member.
