Removing Front Side Member

WARNING: This page is about a different car, the 2023 Porsche Taycan and 2022 Porsche Taycan. However, it is still accessible from the selected car via links, so may be relevant.
  1. Loosen front side member.
    1. 1.1 Mark and make cuts with dimension -A-  > distance 47 mm  and dimension -B-  > distance 107 mm  .

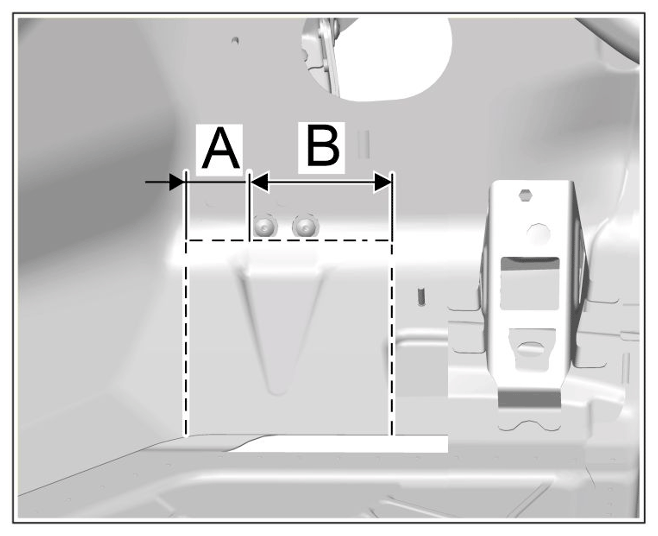

      G15560247Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Cuts

    2. 1.2 Remove section and keep it for re-installation.
    3. 1.3 Unscrew self-tapping screws.

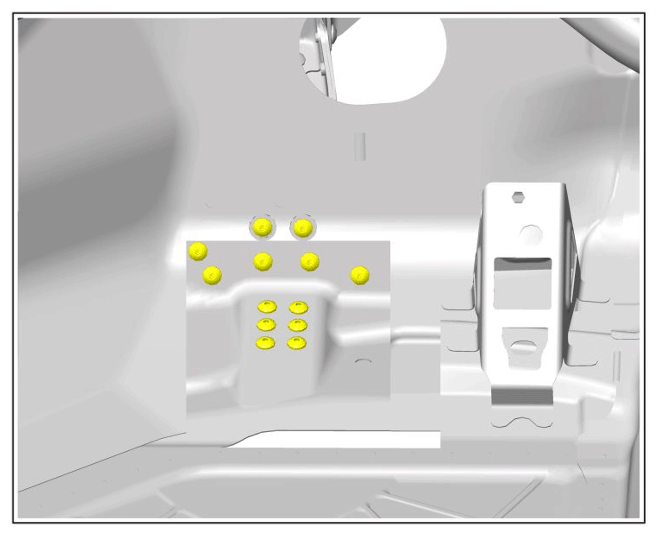

      G15560248Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Self-tapping screws

  2. Unscrew self-tapping screws.

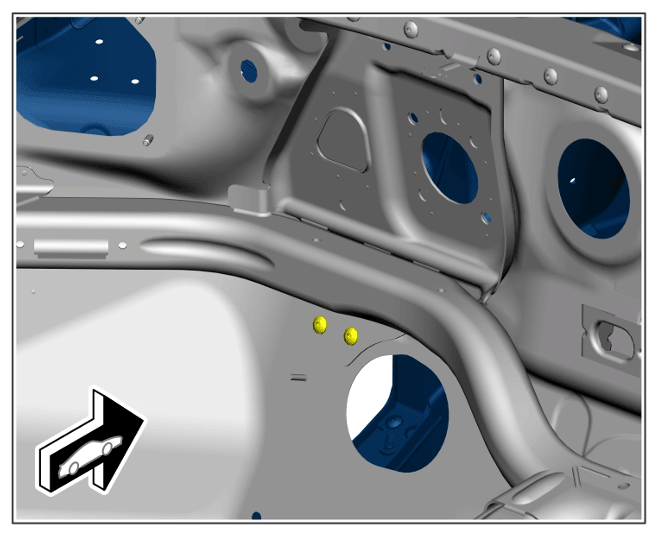

    G15560249Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Self-tapping screws

  3. Remove punch rivets using > VAS 852 001 - aluminium body dent removal unit  and > VAS 6790 - compact booster  .

    > 5X00IN23 REPLACING PUNCH RIVETS AND PENETRATED JOINTS

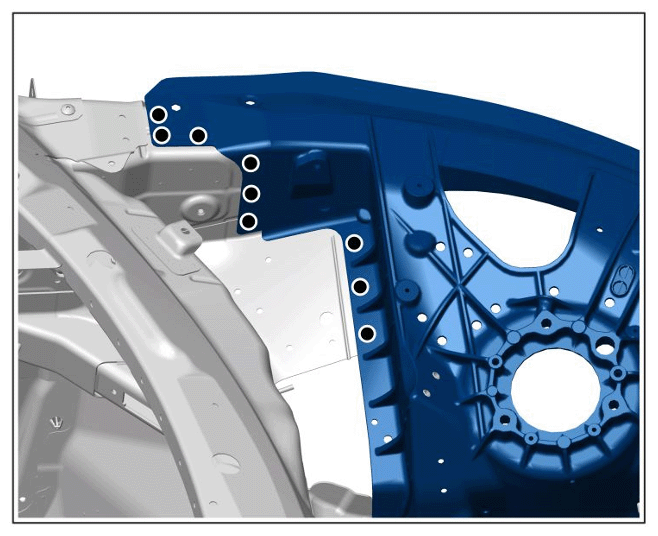

    G15560250Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Punch rivets

  4. Remove punch rivets.

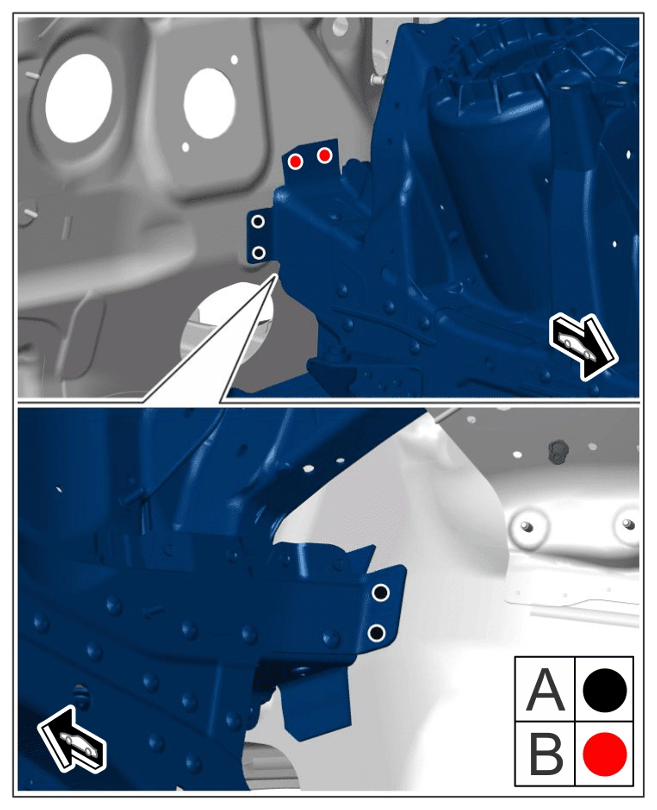

    G15560251Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Punch rivets

    1. 4.1 Grind down punch rivets -A-  from the outside. The heads of the punch rivets remain in the component.
    2. 4.2 Drill -B-  out punch rivets and remove completely.
  5. Loosen front side member.

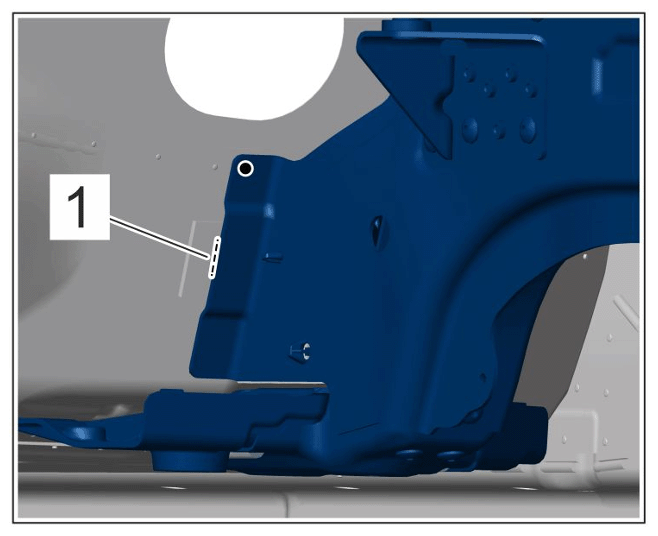

    G15560252Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Joints

    1. 5.1 Loosen friction element welded joint.

      > 5X00IN29 REPLACING FRICTION ELEMENT WELDED JOINT

    2. 5.2 Grind down welded seam -1-
  6. Loosen friction element welded joints.

    > 5X00IN29 REPLACING FRICTION ELEMENT WELDED JOINT

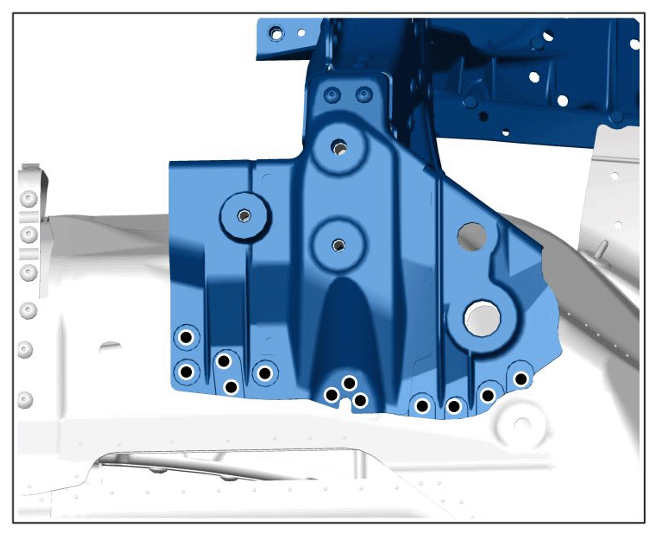

    G15560253Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Friction element welded joints

  7. Heat bonding areas using > V.A.G 1416 - hot-air blower  .

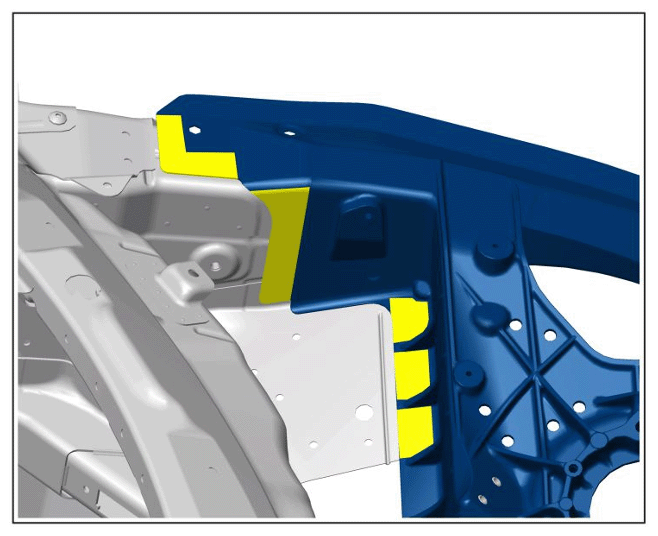

    G15560254Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Bonding areas

  8. Heat bonding area using > V.A.G 1416 - hot-air blower  .

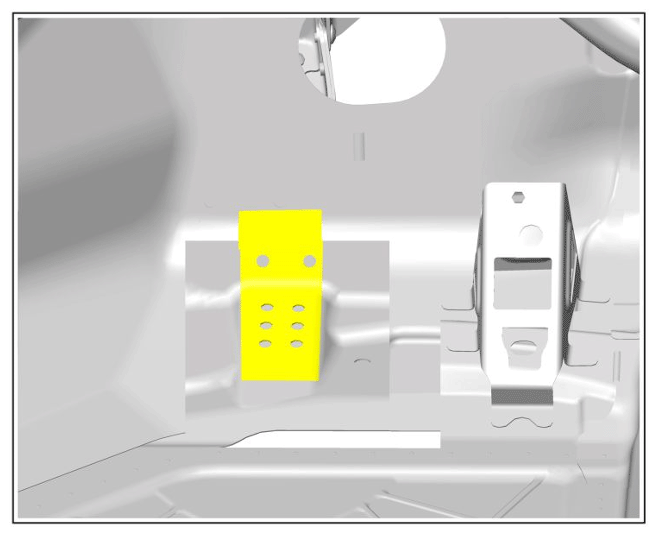

    G15560255Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Bonding area

  9. Heat bonding areas using > V.A.G 1416 - hot-air blower  .

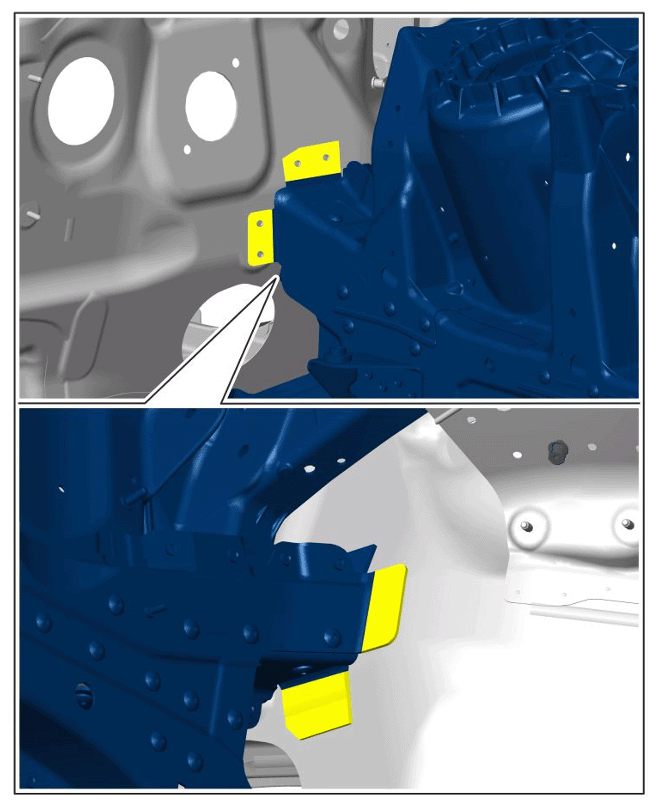

    G15560256Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Bonding areas

  10. Heat bonding areas using > V.A.G 1416 - hot-air blower  .

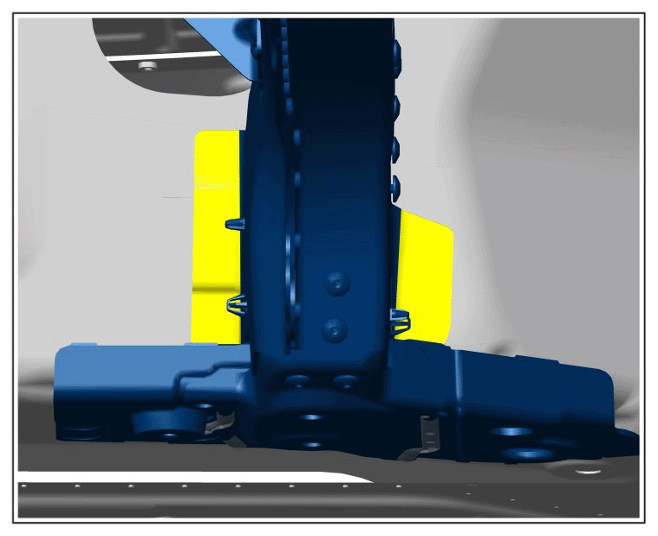

    G15560257Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Bonding areas

  11. Heat bonding area using > V.A.G 1416 - hot-air blower  .

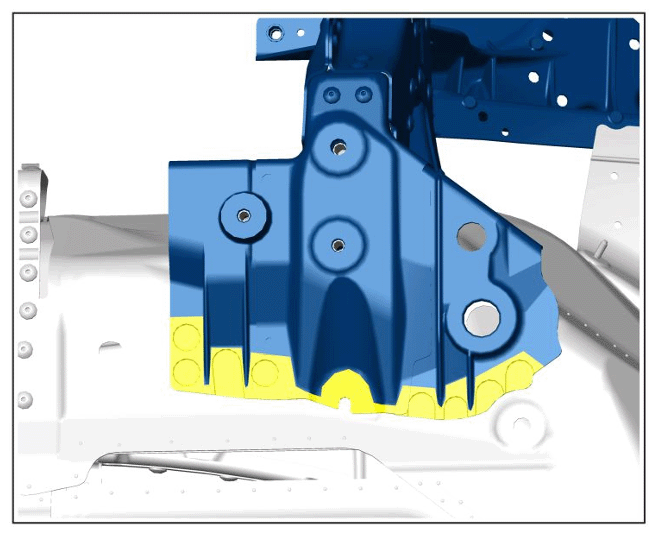

    G15560258Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Bonding area

  12. Remove front longitudinal member.
