Removing Cross Member Reinforcement
WARNING: This page is about a different car, the 2023 Porsche Taycan and 2022 Porsche Taycan. However, it is still accessible from the selected car via links, so may be relevant.

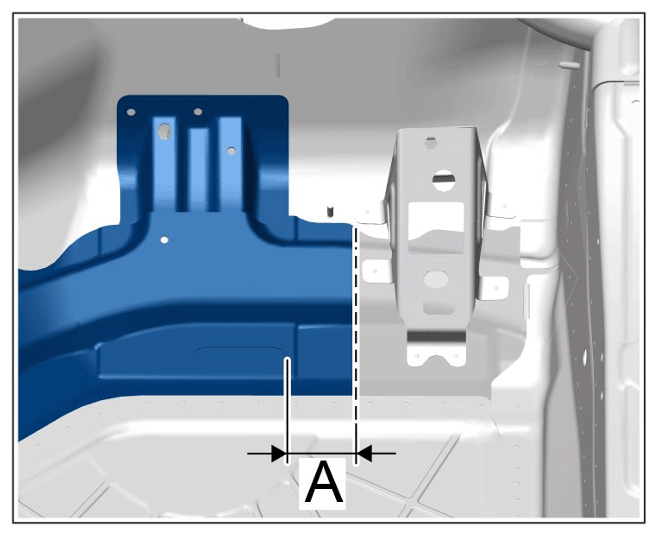

- Mark and make cut -A-
. > Distance 53 mm
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Cut
- Loosen cross member reinforcement.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|

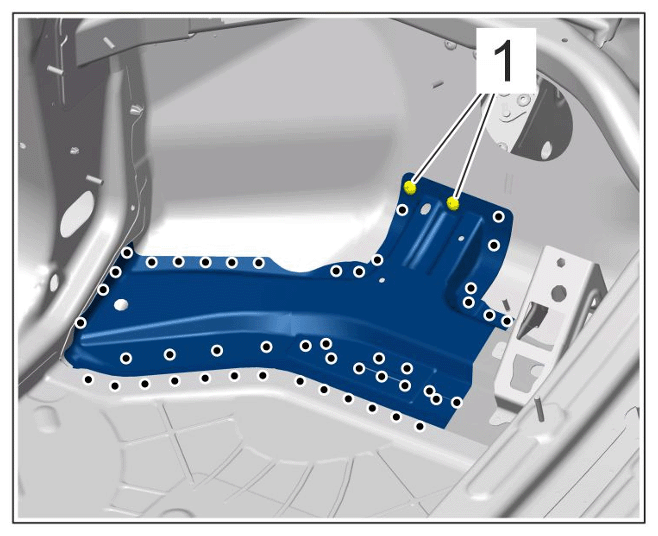

Cross member reinforcement
- 2.1 Unscrew self-tapping screws -1-
.
- 2.2 Drill out spotwelds. > Diameter 6.6 mm
- Heat bonding areas using > V.A.G 1416 - hot-air blower
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|

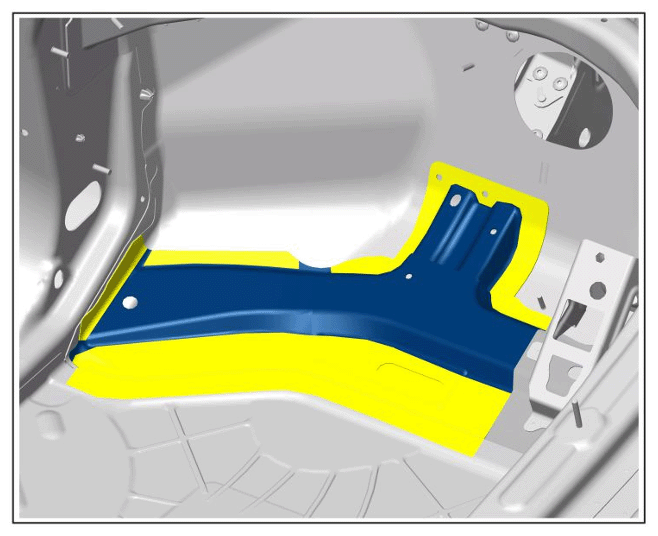

Bonding areas
- Remove cross member reinforcement.
