Preparing Lower Firewall Cross Member For Installation

WARNING: This page is about a different car, the 2023 Porsche Taycan and 2022 Porsche Taycan. However, it is still accessible from the selected car via links, so may be relevant.

Fit in lower firewall cross member and secure it to the body.
Drill bore hole for blind rivets through both sheet metal plates using > diameter 6.6 mm .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

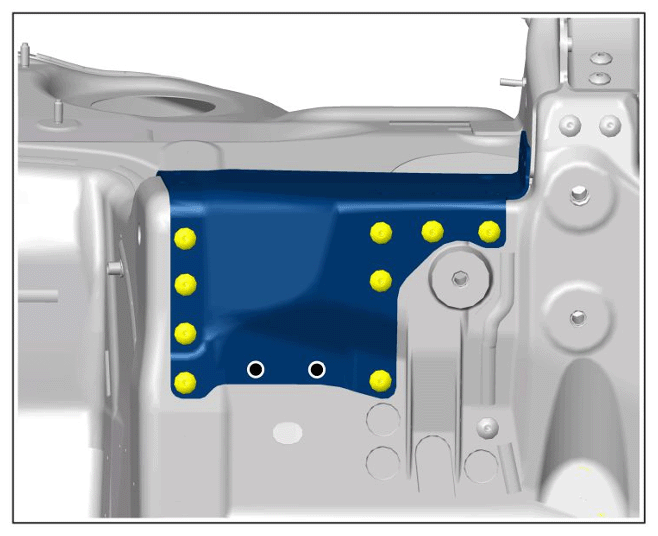

Lower firewall cross member

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

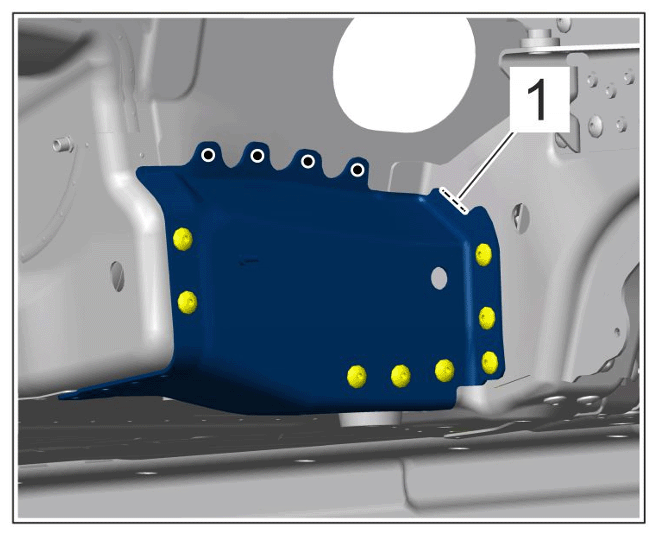

Lower firewall cross member
Pre-drill holes for self-tapping screws using > Diameter 4.0 mm .
> 5X00IN24 SETTING SELF-TAPPING SCREWS

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Lower firewall cross member

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Lower firewall cross member
Remove lower firewall cross member.
Prepare lower firewall cross member for joining.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

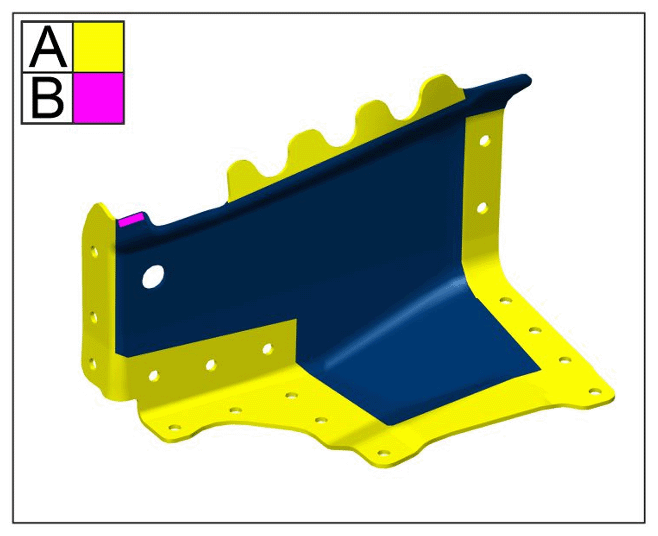

Bonding areas
1. 5.1 Prepare lower firewall cross member for bonding and riveting in areas -A- .
  > 5X00IN21 WORKING WITH BODY STRUCTURAL ADHESIVE PAH.071.781.00
2. 5.2 Prepare lower firewall cross member for aluminium welding in area -B- .
  > 5X00IN10 WELDING ALUMINIUM
