Preparing Filler Plate For Installation

WARNING: This page is about a different car, the 2023 Porsche Taycan and 2022 Porsche Taycan. However, it is still accessible from the selected car via links, so may be relevant.

Fit in filler plate and secure it to the body.

Drill bore holes for blind rivets -A- , -B- and -C- through both sheet metal plates using > diameter 6.6 mm .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

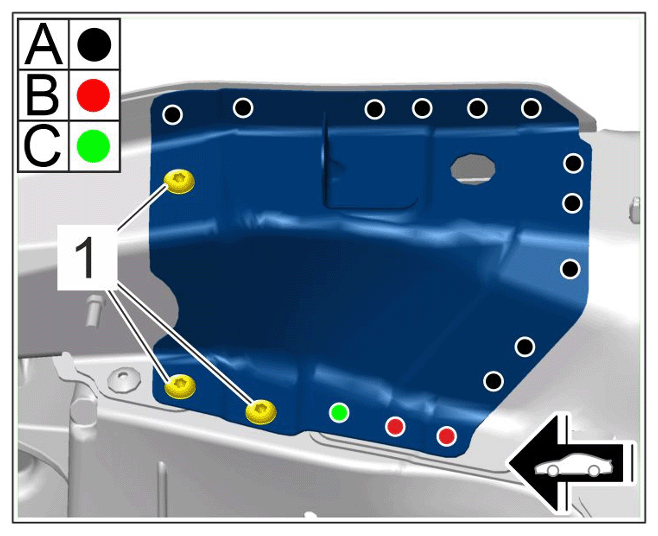

Bore holes for blind rivets
Pre-drill holes for self-tapping screws -1- using > diameter 4.0 mm .
> 5X00IN24 SETTING SELF-TAPPING SCREWS

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Bore holes for self-tapping screws
Removing filler plate.
Prepare closing element for bonding and riveting.
> 5X00IN21 WORKING WITH BODY STRUCTURAL ADHESIVE PAH.071.781.00

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

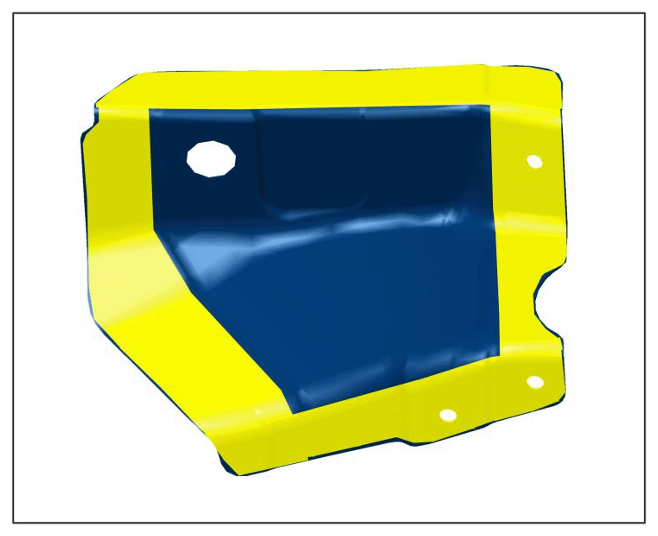

Filler plate bonding areas
