Preparing Connection Areas Of The Body For Installing Cross Member Reinforcement
WARNING: This page is about a different car, the 2023 Porsche Taycan and 2022 Porsche Taycan. However, it is still accessible from the selected car via links, so may be relevant.
- Align the sealing surfaces and connections of the body.
- De-burr connection points and prepare them for joining.
- Prepare connection areas of the body at the front.

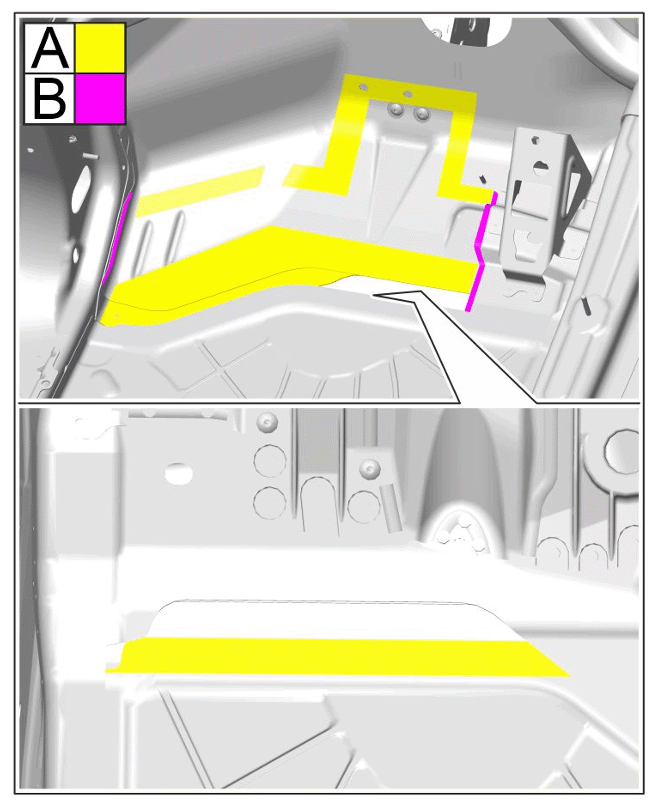

Joint areas
- 3.1 Prepare marked areas -A-
for bonding and riveting.
> 5X00IN21 WORKING WITH BODY STRUCTURAL ADHESIVE PAH.071.781.00
- 3.2 Prepare marked areas -B- for full steel welding.
- 3.1 Prepare marked areas -A-
for bonding and riveting.
