Preparing Connection Areas Of Body For Installing Front Side Member

WARNING: This page is about a different car, the 2023 Porsche Taycan and 2022 Porsche Taycan. However, it is still accessible from the selected car via links, so may be relevant.

Align contact surfaces and connections of the body.
De-burr connection points and prepare them for joining.
Prepare the marked areas for bonding and riveting.
> 5X00IN21 WORKING WITH BODY STRUCTURAL ADHESIVE PAH.071.781.00

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

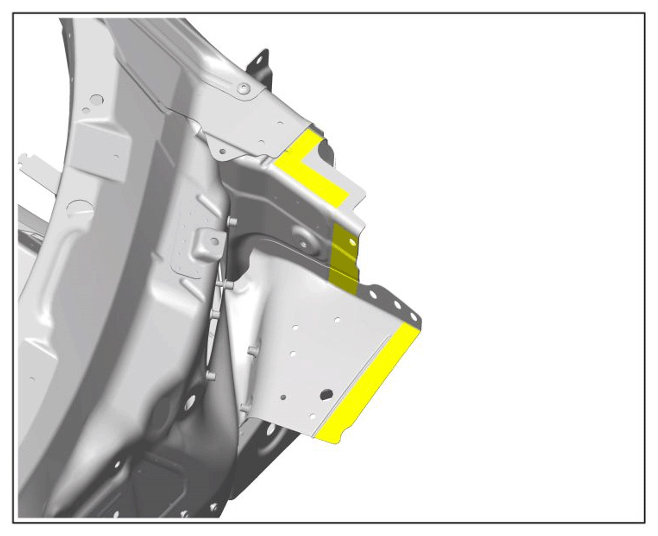

Joint areas
Prepare connection areas of the body.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

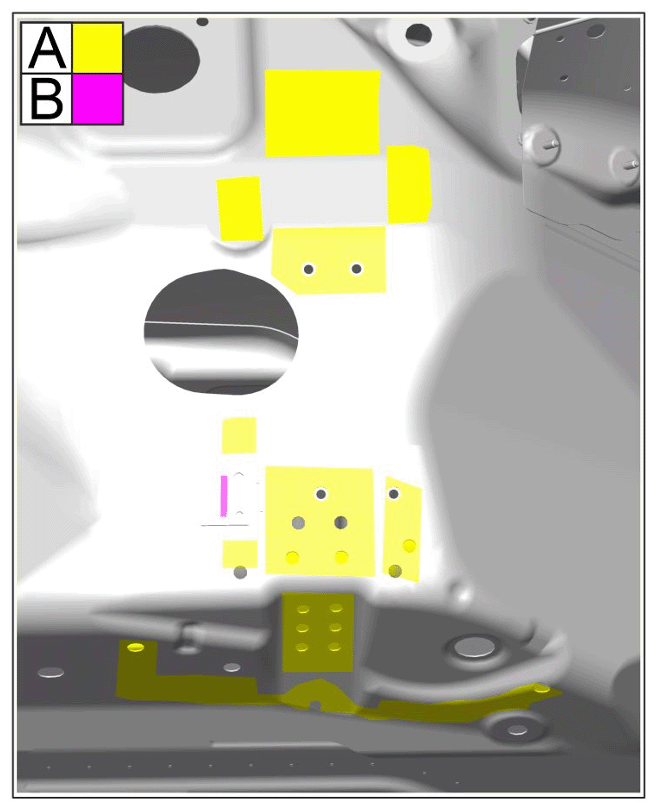

Joint areas
1. 4.1 Prepare marked areas -A- for gluing and riveting.
  > 5X00IN21 WORKING WITH BODY STRUCTURAL ADHESIVE PAH.071.781.00
2. 4.2 Prepare marked area -B- for aluminium welding.
  > 5X00IN10 WELDING ALUMINIUM
