Install Front Side Member

WARNING: This page is about a different car, the 2023 Porsche Taycan and 2022 Porsche Taycan. However, it is still accessible from the selected car via links, so may be relevant.

Information

Before final assembly, make sure you fully understand all the work steps involved and carry out a trial assembly without applying adhesive.
The bonding process can only be carried out reliably when a smooth and swift sequence of operations is guaranteed.
Do not begin bonding work until all materials and tools necessary for later repair work are available.

Fit front side member and check that it fits perfectly.
Information
- Apply adhesive evenly over the entire bonding surface.

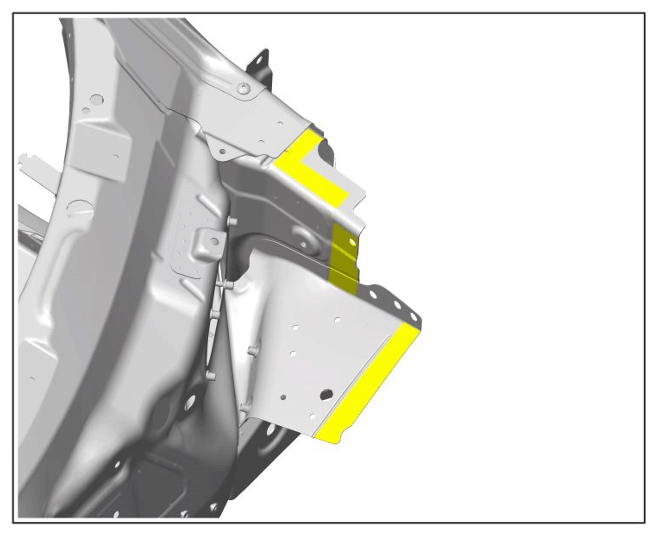

Apply adhesive on bonding areas of body.
> 5X00IN21 PROCESSING OF BODY WORK STRUCTURAL ADHESIVE PAH.071.781.00

> Application height 0.5 mm

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

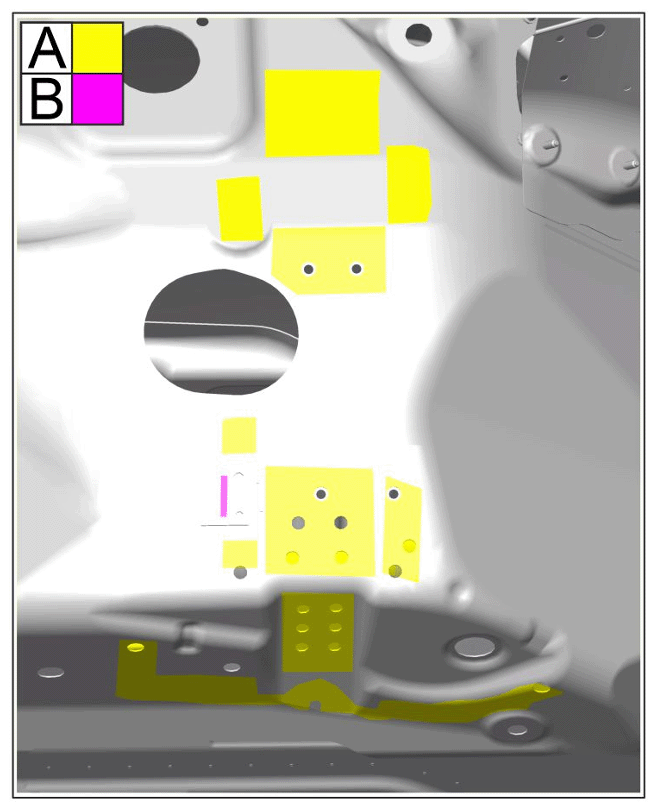

Bonding areas

Information
- Apply adhesive evenly over the entire bonding surface.

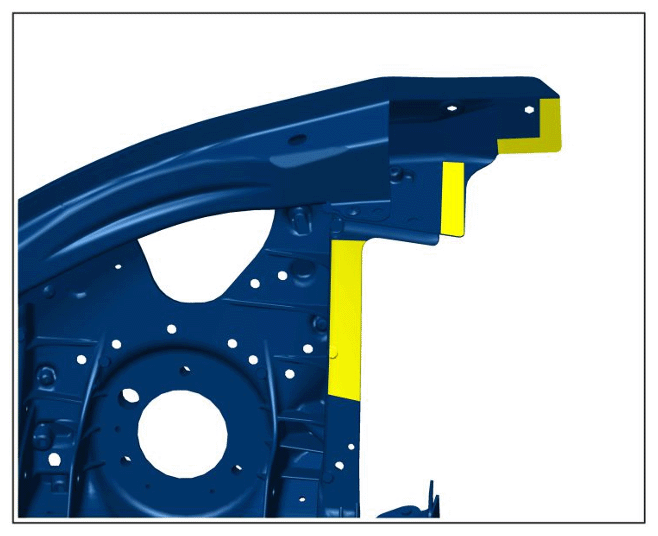

Apply adhesive on bonding areas -A- of the body.
> 5X00IN21 PROCESSING OF BODY WORK STRUCTURAL ADHESIVE PAH.071.781.00

> Application height 0.5 mm

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

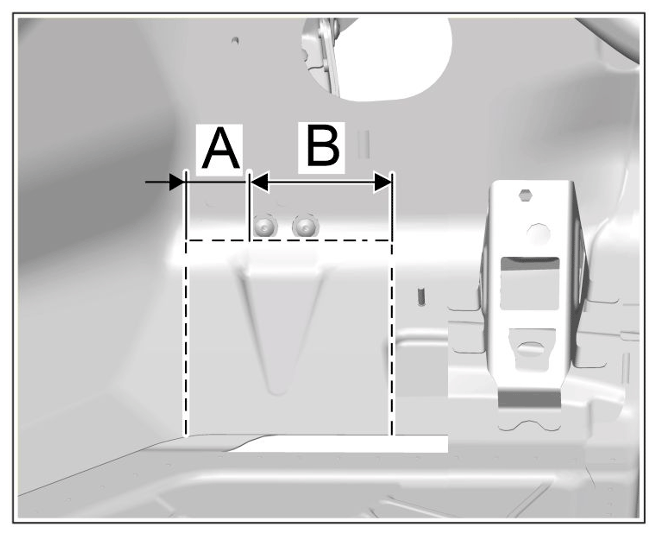

Joint areas

Information
- Apply adhesive evenly over the entire bonding surface.

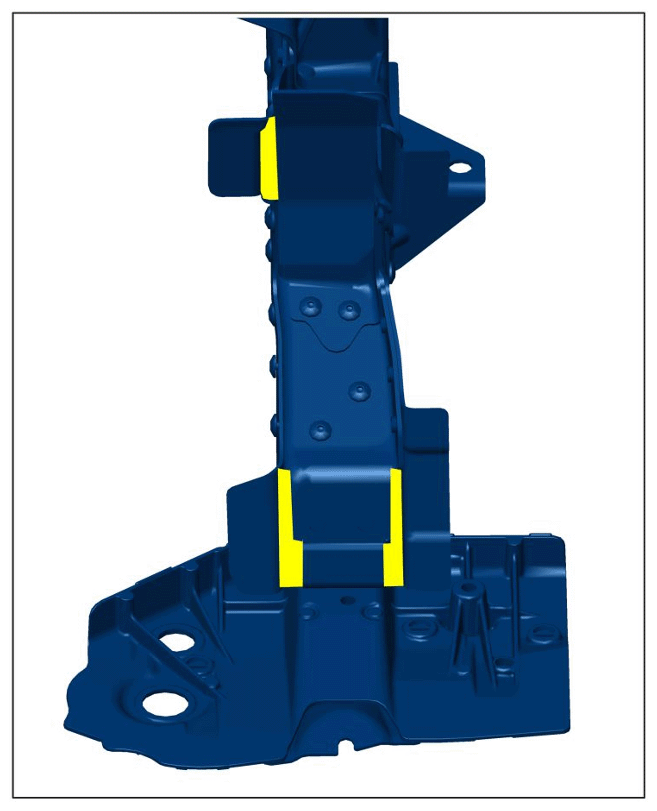

Apply adhesive on front side member.
> 5X00IN21 PROCESSING OF BODY WORK STRUCTURAL ADHESIVE PAH.071.781.00

> Application height 0.5 mm

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

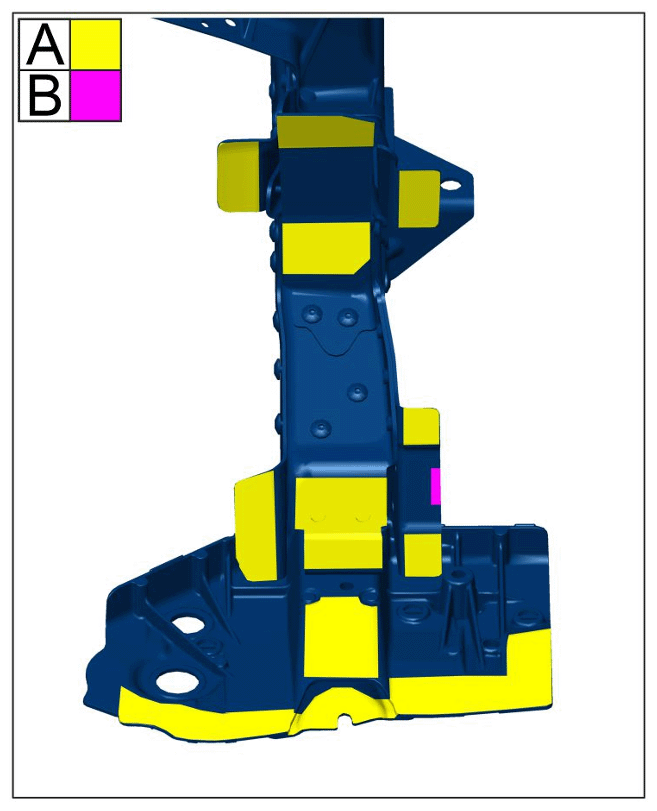

Bonding areas
1. 4.1 In addition, apply a bead of adhesive all around the marked adhesive areas.
  > Application depth 3 mm
Information
- Apply adhesive evenly over the entire bonding surface.
Apply adhesive in areas -A- on front side member.
> 5X00IN21 PROCESSING OF BODY WORK STRUCTURAL ADHESIVE PAH.071.781.00

> Application height 0.5 mm

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Bonding areas
1. 5.1 Also apply a bead of adhesive all around the bonding surface -A- .
  > Application depth 3 mm
Apply body foam filler on front side member.
> 5X00IN22 PROCESSING BODY FOAM FILLER

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Body foam filler
Position front longitudinal member and secure it.
Screw in self-tapping screws.
> 5X00IN24 SETTING SELF-TAPPING SCREWS

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Self-tapping screws

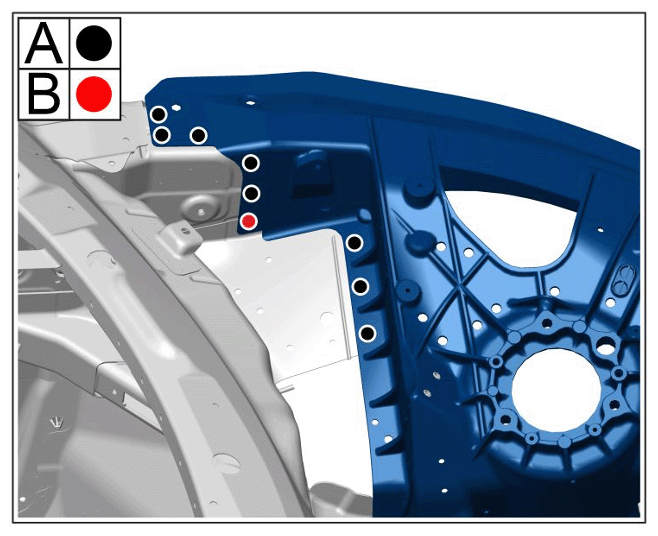

Rivet in front side member.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

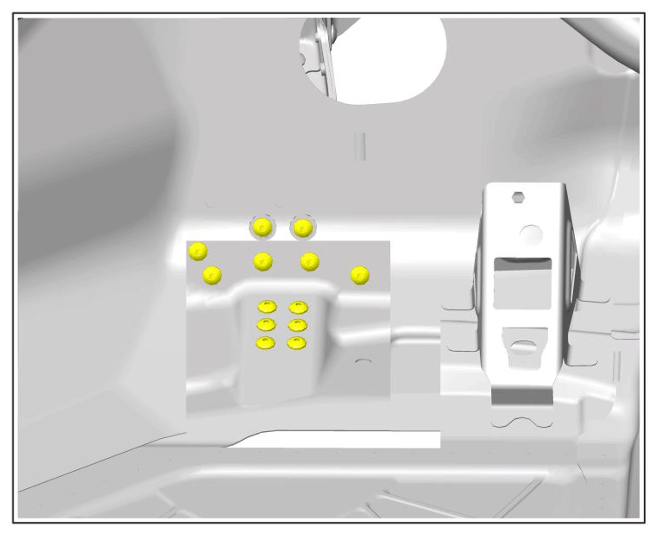

Blind rivets

A	> BLIND RIVET 999.190.227.01
B	> BLIND RIVET 999.190.230.01

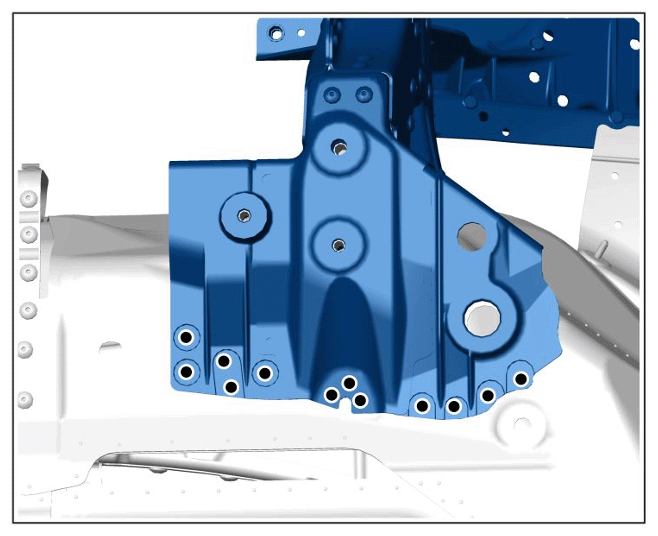

Rivet in front side member. > BLIND RIVET 999.190.230.01

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

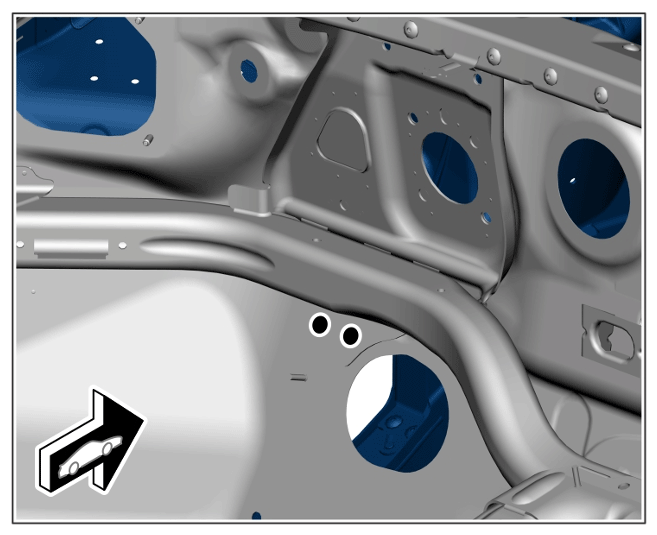

Blind rivets

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Blind rivets

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Blind rivet

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Blind rivets

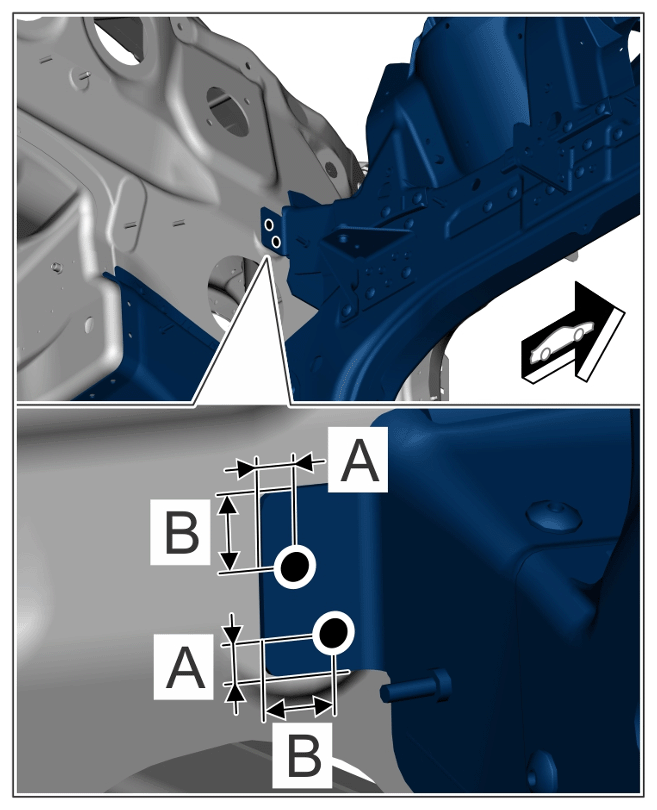

Install front side member.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

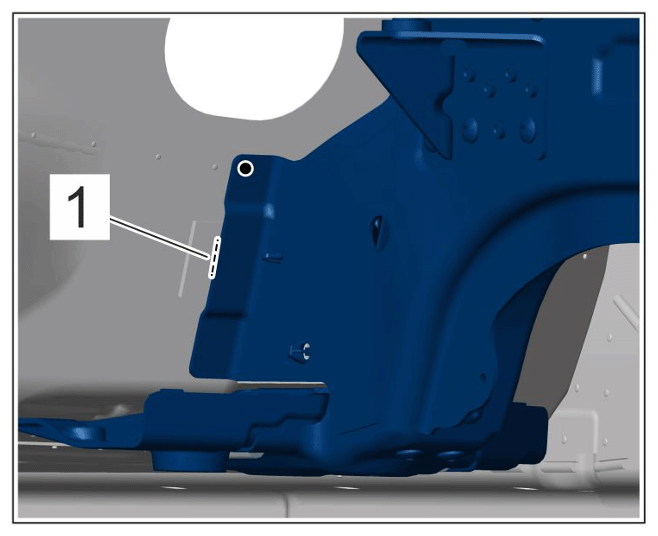

Ground connection
1. 11.1 Rivet in front side member.
  > BLIND RIVET 999.190.227.01
2. 11.2 Make ground connection -1- .
  > 5X00IN10 WELDING ALUMINIUM

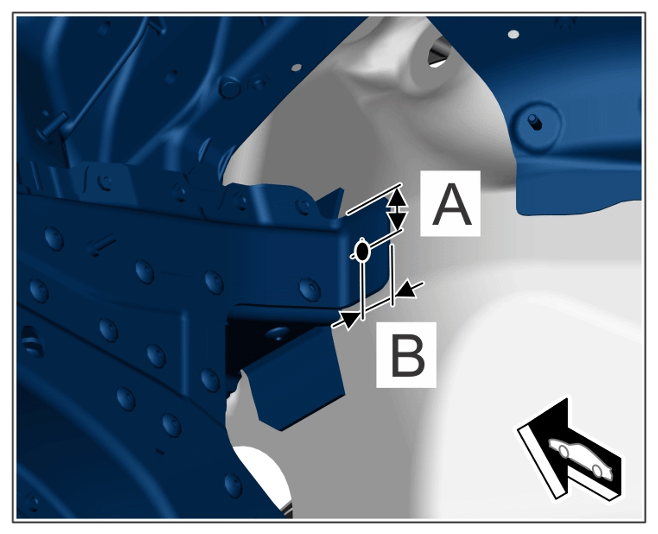

Rivet in front side member.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

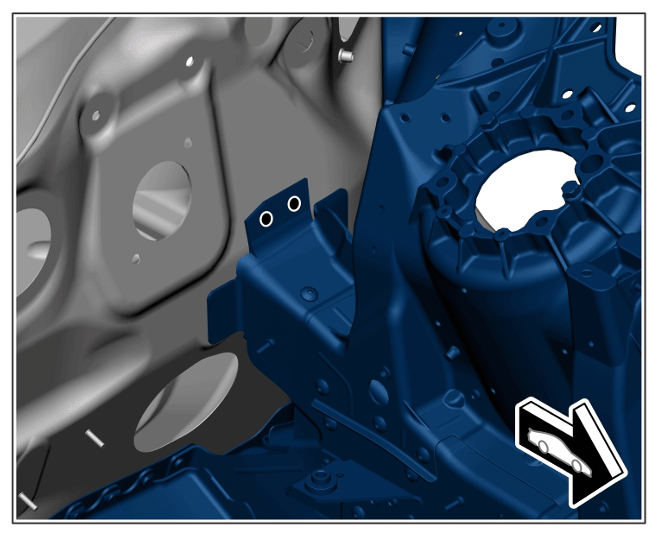

Blind rivets

> BLIND RIVET 999.190.229.01
Apply a full steel weld to the panel you cut out in the firewall.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Panel

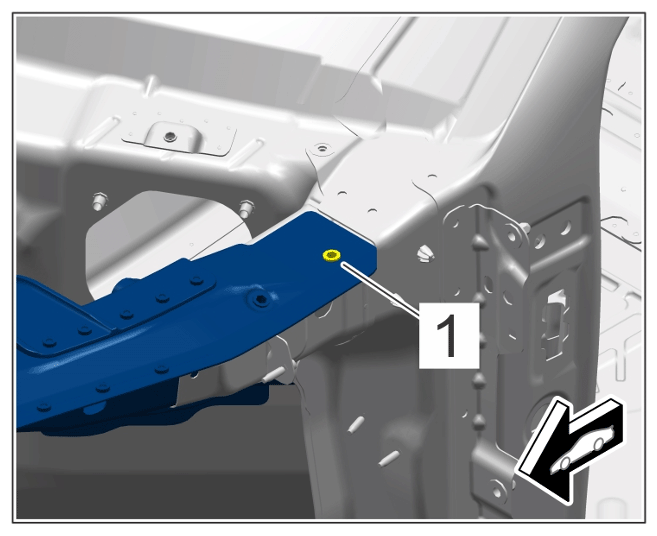

Rivet in > BLIND RIVET NUT PAF.106.185-1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Blind rivet nut
