Removing Longitudinal Member For Wheel Housing Upper Section (Front Section)

WARNING: This page is about a different car, the 2023 Porsche Taycan and 2022 Porsche Taycan. However, it is still accessible from the selected car via links, so may be relevant.

Information

Only make cuts in the top plate. Make sure not to damage the plate underneath when doing this.

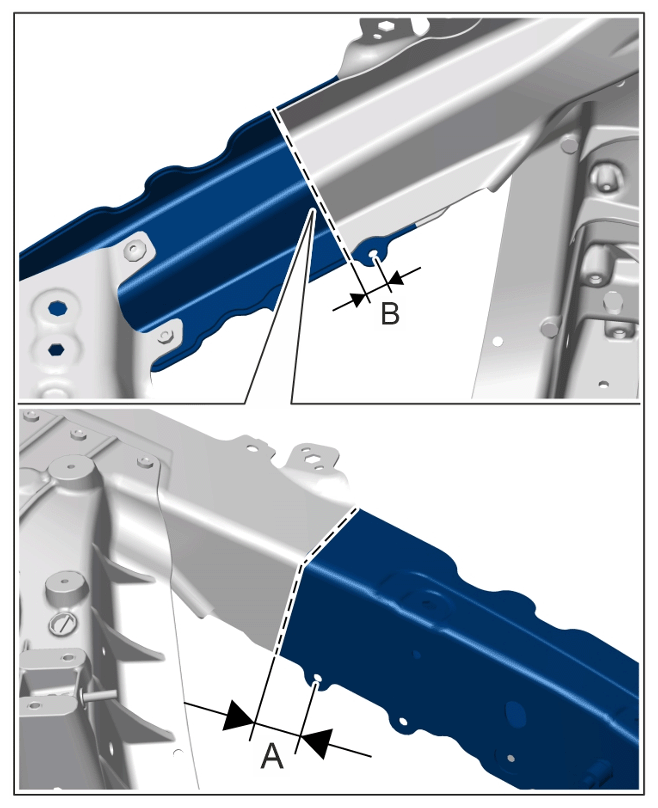

Mark and make cuts -A- > Distance 31 mm and -B- > Distance 14 mm .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Separation points
Remove punch rivets using > VAS 852 001 - Body Dent Removal System, Aluminium and > VAS 6790 - Compact Booster .
> 5X00IN23 REPLACING PUNCH RIVETS AND PENETRATED JOINTS

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

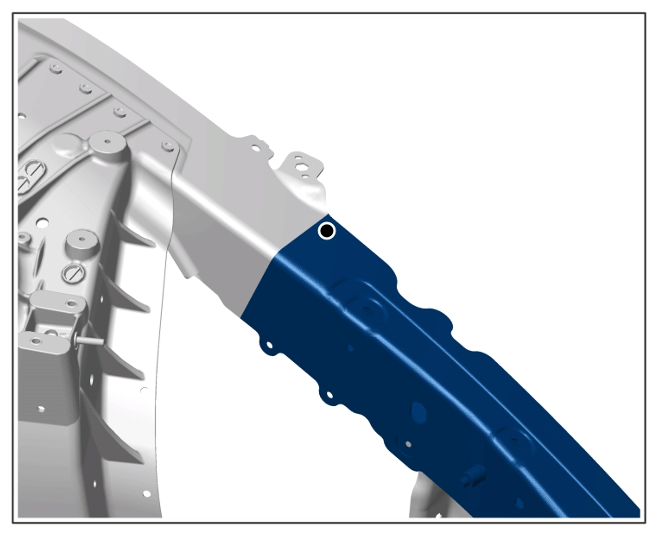

Punch rivets
Detach longitudinal member for wheel housing upper section (front section).

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Longitudinal member for wheel housing upper section (front section)
1. 3.1 Unscrew self-tapping screws -1- .
  > 5X00IN24 SETTING SELF-TAPPING SCREWS
2. 3.2 Remove punch rivets using > VAS 852 001 - Body Dent Removal System, Aluminium and > VAS 6790 - Compact Booster .
  > 5X00IN23 REPLACING PUNCH RIVETS AND PENETRATED JOINTS
Grind down welded seams.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

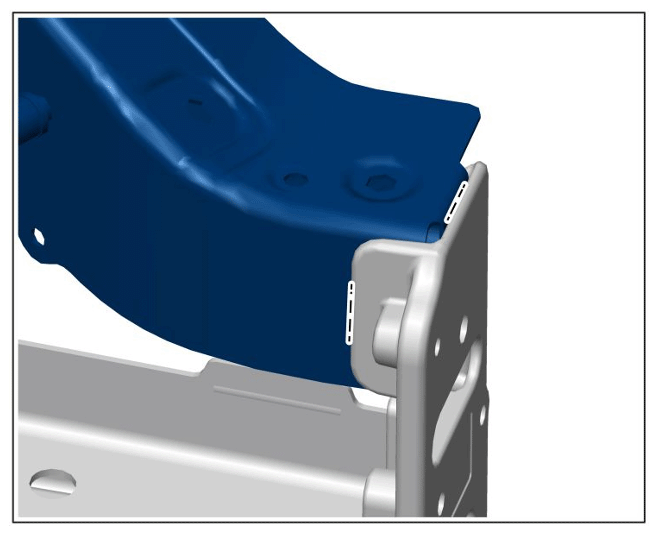

Welded seams
Heat bonding areas using > V.A.G 1416 - Hot-Air Blower .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

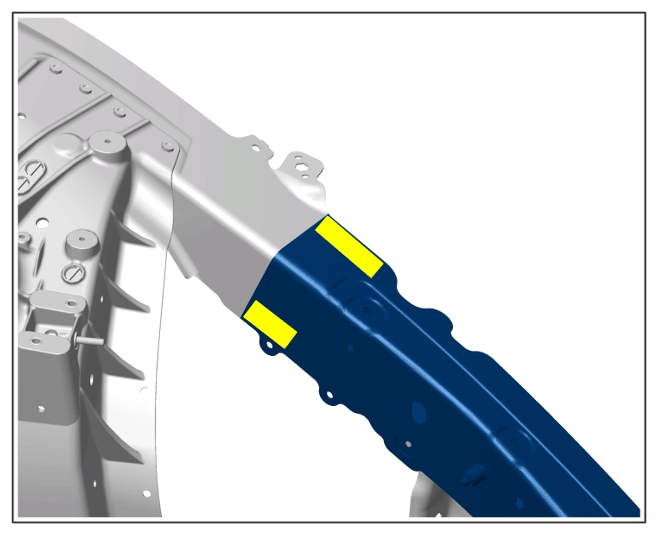

Upper bonding areas
Heat bonding areas using > V.A.G 1416 - Hot-Air Blower .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

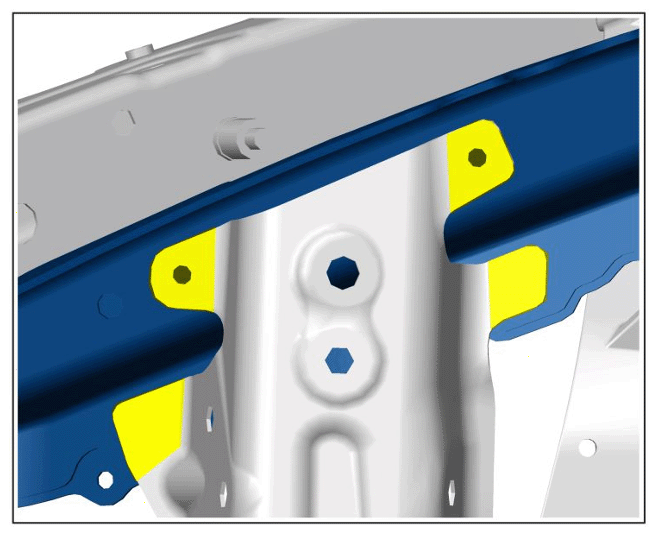

Bonding areas on support
Remove longitudinal member for wheel housing upper section (front section).
