Installing Two-Piece Inner Shoe

WARNING: This page is about a different car, the 2023 Porsche Taycan and 2022 Porsche Taycan. However, it is still accessible from the selected car via links, so may be relevant.

Install inner shoe at the bottom.

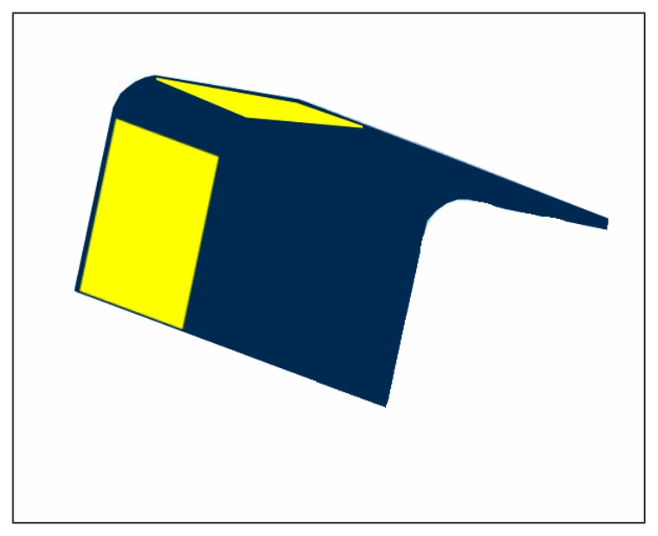

1.1 Apply adhesive on inner shoe at the bottom.

> 5X00IN21 WORKING WITH BODY STRUCTURAL ADHESIVE PAH.071.781.00

> Application depth 0.5 mm

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Inner shoe, bottom

1.1.1 Also apply a bead of adhesive all around the bonding surface.
> Application depth 3 mm

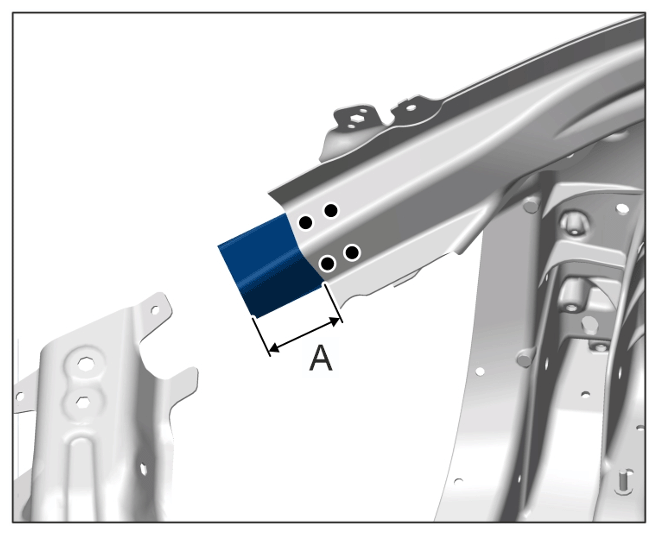

1.2 Rivet in inner shoe at the bottom.
-dimension A- > Overlap 45 mm

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Inner shoe, bottom

> BLIND RIVET 999.190.229.01

Install inner shoe at the top.

2.1 Apply adhesive on inner shoe at the top.

> 5X00IN21 WORKING WITH BODY STRUCTURAL ADHESIVE PAH.071.781.00 1

> Application depth 0.5 mm

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Inner shoe, bottom

2.1.1 Also apply a bead of adhesive all around the bonding surface.

> Application depth 3 mm

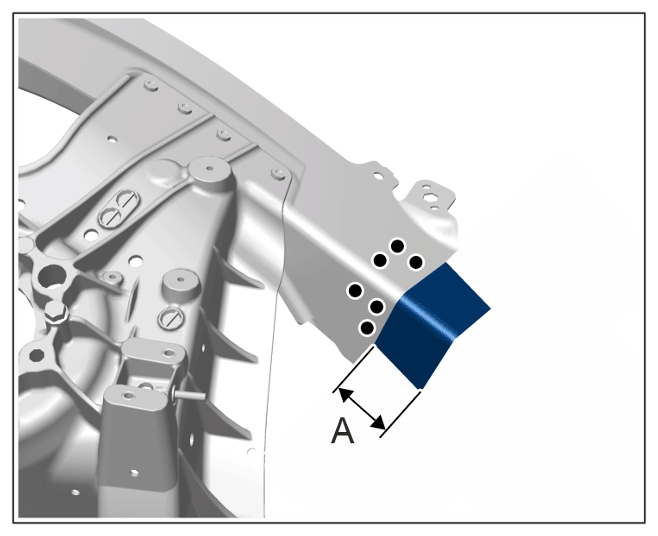

2.2 Rivet in inner shoe at the top.

-dimension A- > Overlap 45 mm

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Inner shoe, top

> BLIND RIVET 999.190.229.01
