Removing Support
WARNING: This page is about a different car, the 2023 Porsche Taycan and 2022 Porsche Taycan. However, it is still accessible from the selected car via links, so may be relevant.
- Loosen support.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|

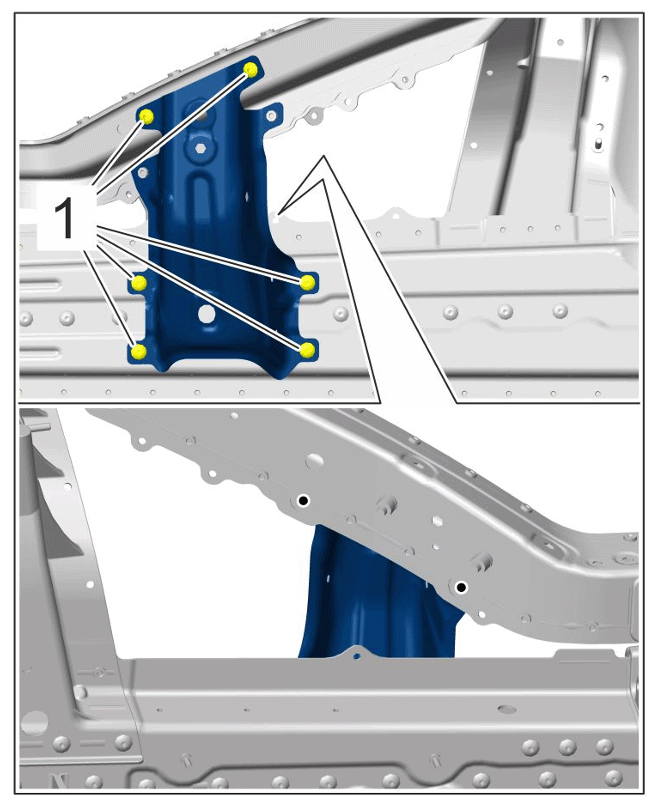

Support
- 1.1 Unscrew self-tapping screws -1-
.
> 5X00IN24 SETTING SELF-TAPPING SCREWS
- 1.2 Remove punch rivets using > VAS 852 001 - body dent removal system, aluminium
and > VAS 6790 - Compact Booster
.
> 5X00IN23 REPLACING PUNCH RIVETS AND PENETRATED JOINTS
- Heat bonding areas using > V.A.G 1416 - hot-air blower
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|

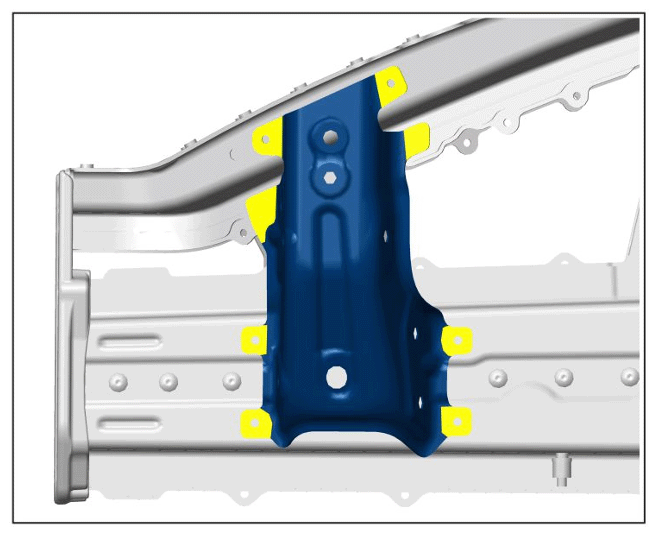

Bonding areas
- Remove support.
