Removing Longitudinal Member For Outer Wheel Housing Upper Section

WARNING: This page is about a different car, the 2023 Porsche Taycan and 2022 Porsche Taycan. However, it is still accessible from the selected car via links, so may be relevant.
  1. Loosen longitudinal member for outer wheel housing upper section.

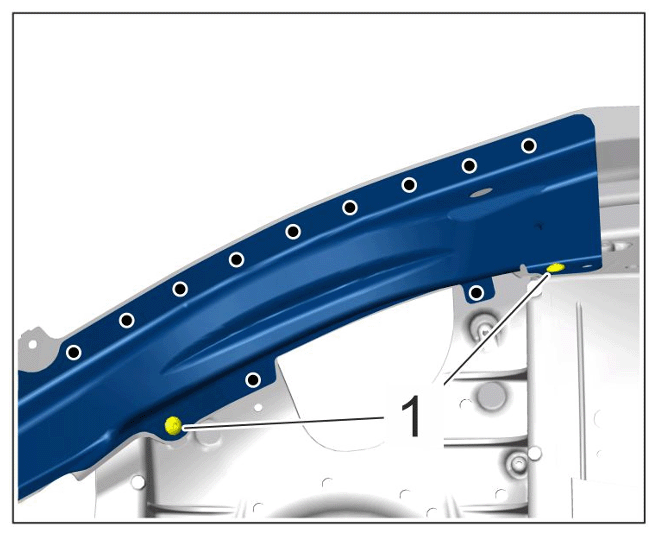

    G15560073Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Self-tapping screw

    1. 1.1 Unscrew self-tapping screw -1-  .
    2. 1.2 Remove punch rivets using > VAS 852 001 - body dent removal system, aluminium  and > VAS 6790 - Compact Booster  .

      > 5X00IN23 REPLACING PUNCH RIVETS AND PENETRATED JOINTS

  2. Heat bonding areas using > V.A.G 1416 - hot-air blower  .

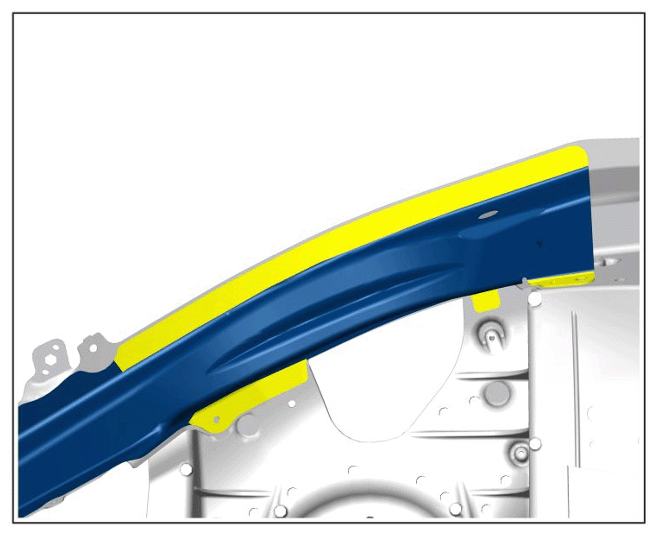

    G15560074Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Bonding areas

  3. Remove longitudinal member for outer wheel housing upper section.
