Removing Longitudinal Member For Inner Wheel Housing Upper Section

1. Loosen longitudinal member for inner wheel housing upper section.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

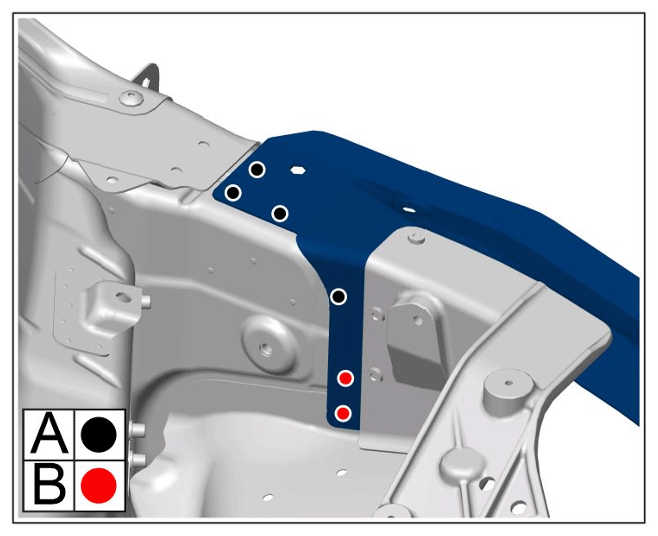

   Punch rivets

   1. 1.1 Remove punch rivets -A-  using > VAS 852 001 - dent removal unit  and > VAS 6790 - Compact Booster  .

      > 5X00IN23 REPLACING PUNCH RIVETS AND PENETRATED JOINTS

   2. 1.2 Drill through punch rivets -B-  from the inside.
2. Remove punch rivets using > VAS 852 001 - body dent removal system, aluminium  and > VAS 6790 - Compact Booster  .

   > 5X00IN23 REPLACING PUNCH RIVETS AND PENETRATED JOINTS 1 Fit longitudinal member for inner wheel housing upper section and secure it to the body.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

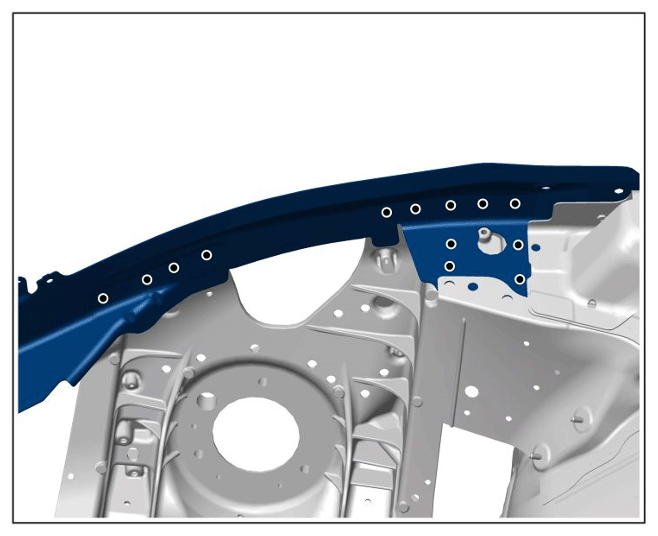

   Punch rivets

3. Heat bonding areas using > V.A.G 1416 - hot-air blower  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

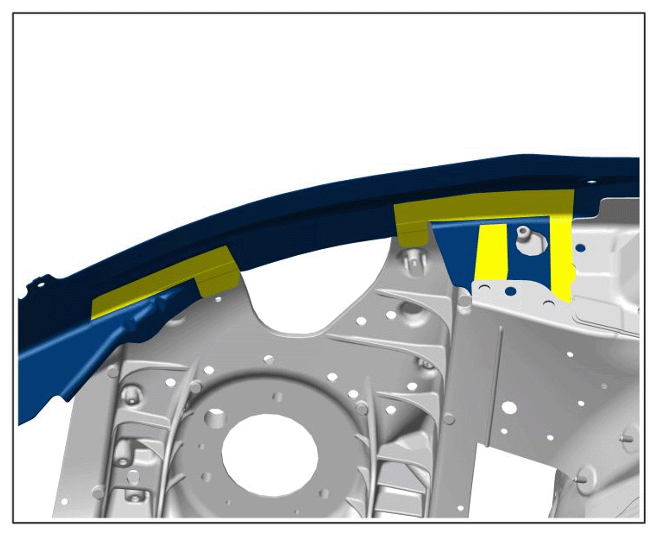

   Bonding areas

4. Heat bonding areas using > V.A.G 1416 - hot-air blower  .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

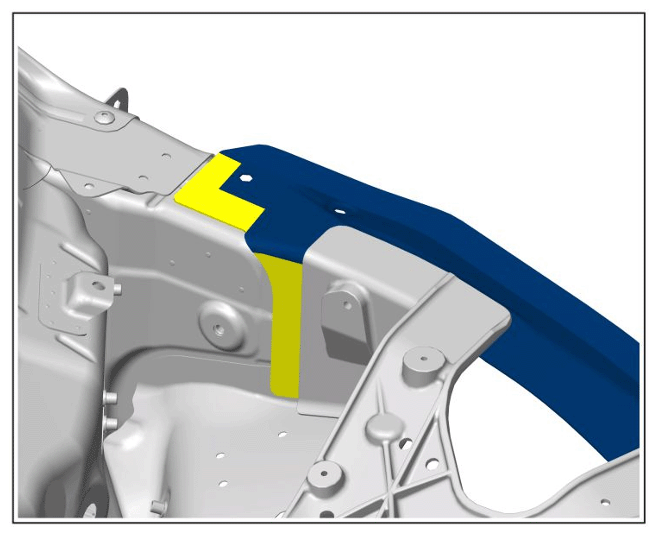

Bonding areas
