Removing Longitudinal Member For Front Wheel Housing Upper Section

WARNING: This page is about a different car, the 2023 Porsche Taycan and 2022 Porsche Taycan. However, it is still accessible from the selected car via links, so may be relevant.
  1. Grind down welded seams.

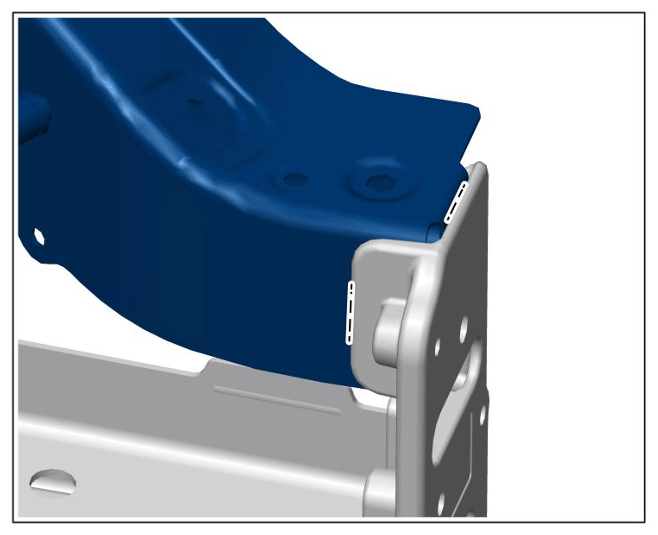

    G15560071Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Welded seams

  2. Separate longitudinal member for front wheel housing upper section with a rough cut and remove it.

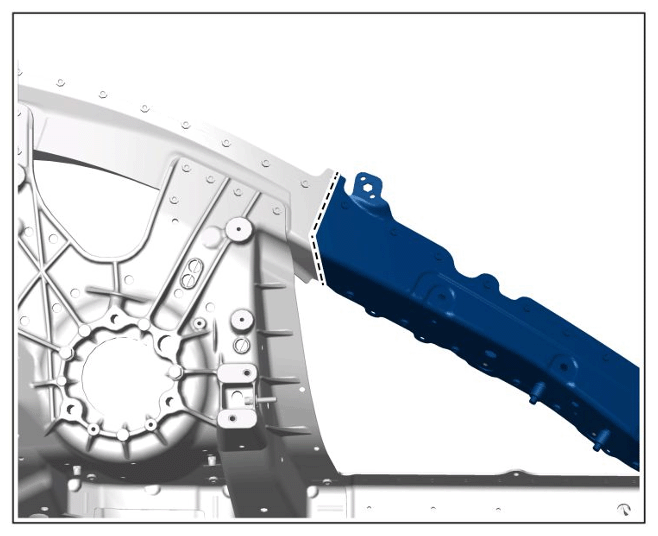

G15560072Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Longitudinal member for front wheel housing upper section
