Installing Longitudinal Member For Outer Wheel Housing Upper Section

Information

• Before final assembly, make sure you fully understand all the work steps involved and carry out a trial assembly without applying adhesive.
• The bonding process can only be carried out reliably when a smooth and swift sequence of operations is guaranteed.
• Do not begin bonding work until all materials and tools necessary for later repair work are available.

1. Fit longitudinal member for outer wheel housing upper section and check that it fits perfectly.

   Information

   • Apply adhesive evenly over the entire bonding surface.
2. Apply adhesive on bonding areas of body.

   > 5X00IN21 WORKING WITH BODY STRUCTURAL ADHESIVE PAH.071.781.00

   > Application depth 0.5 mm

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

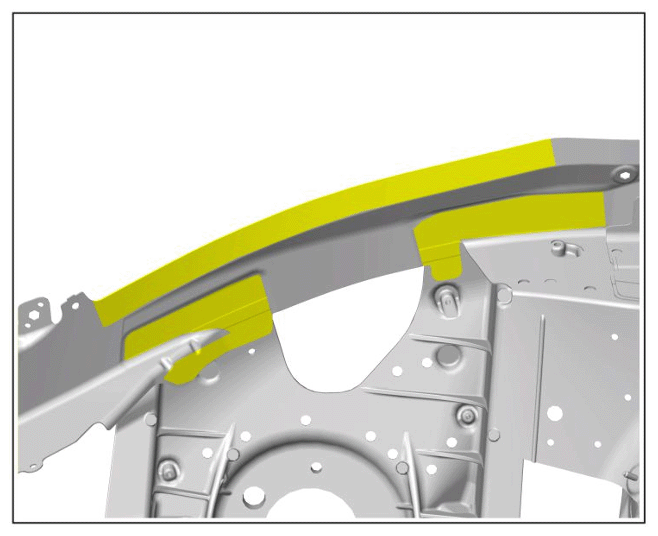

   Bonding areas

   Information

   • Apply adhesive evenly over the entire bonding surface.
3. Apply adhesive on longitudinal member for outer wheel housing upper section.

   > 5X00IN21 WORKING WITH BODY STRUCTURAL ADHESIVE PAH.071.781.00

   > Application depth 0.5 mm

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

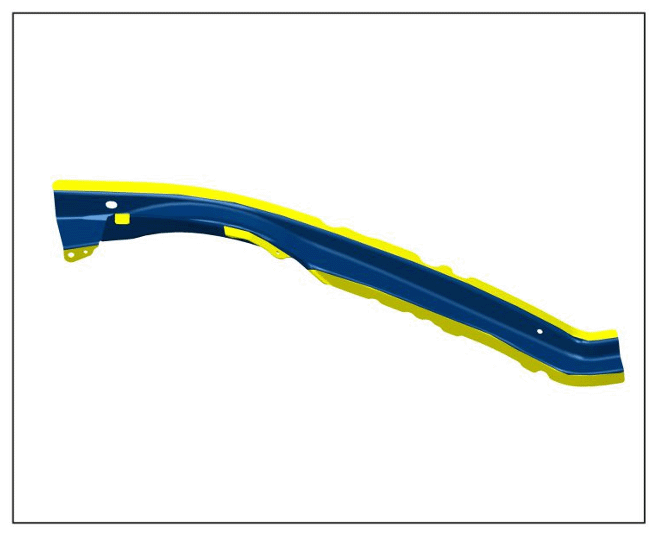

   Bonding areas

   1. 3.1 Also apply a bead of adhesive all around the bonding surface.

      > Application depth 3 mm

4. Secure longitudinal member for outer wheel housing upper section.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

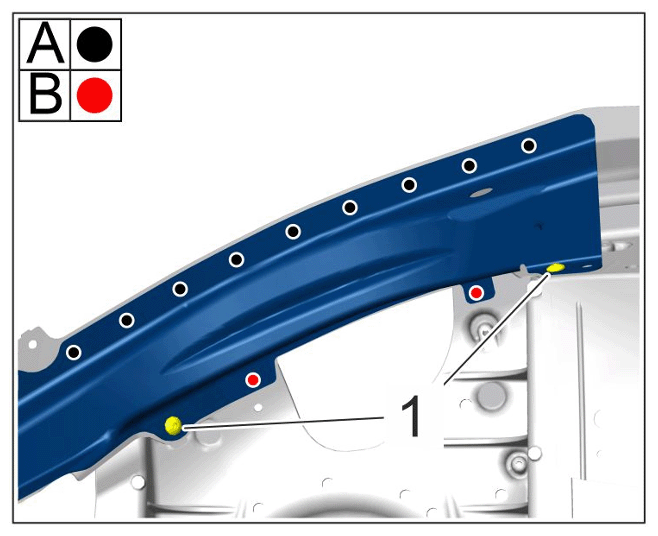

   Self-tapping screws

   1. 4.1 Rivet in longitudinal member for outer wheel housing upper section.

      -A -  > BLIND RIVET 999.190.229.01

      -B -  > BLIND RIVET 999.190.227.01

   2. 4.2 Screw in self-tapping screws -1-  .

      > 5X00IN24 SETTING SELF-TAPPING SCREWS

5. Rivet in longitudinal member for outer wheel housing upper section. > BLIND RIVET 999.190.229.01

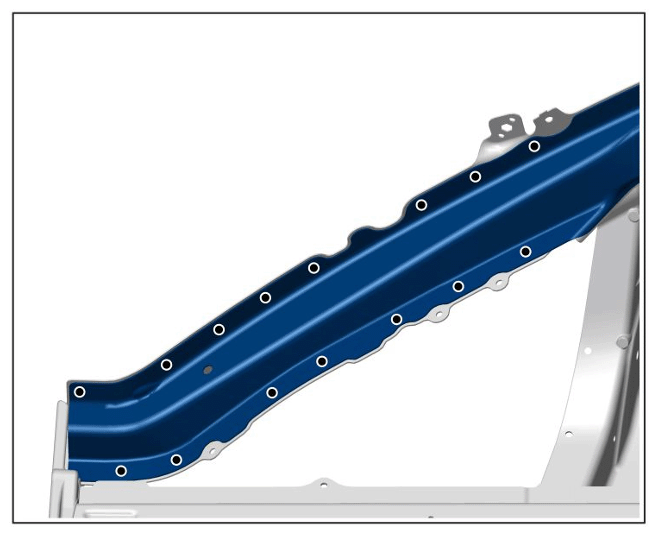

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Punch rivets
