Installing Longitudinal Member For Inner Wheel Housing Upper Section

Information

• Before final assembly, make sure you fully understand all the work steps involved and carry out a trial assembly without applying adhesive.
• The bonding process can only be carried out reliably when a smooth and swift sequence of operations is guaranteed.
• Do not begin bonding work until all materials and tools necessary for later repair work are available.

1. Fit longitudinal member for inner wheel housing upper section and check that it fits perfectly.

   Information

   • Apply adhesive evenly over the entire bonding surface.
2. Apply adhesive on bonding areas of the body.

   > 5X00IN21 WORKING WITH BODY STRUCTURAL ADHESIVE PAH.071.781.00

   > Application depth 0, 5 mm

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

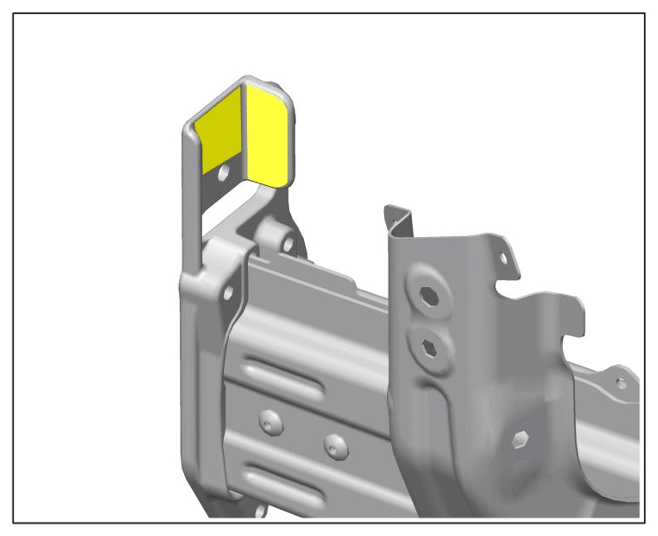

   Front bonding areas

   Information

   • Apply adhesive evenly over the entire bonding surface.
3. Apply adhesive on bonding areas of the body.

   > 5X00IN21 WORKING WITH BODY STRUCTURAL ADHESIVE PAH.071.781.00

   > Application depth 0, 5 mm

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

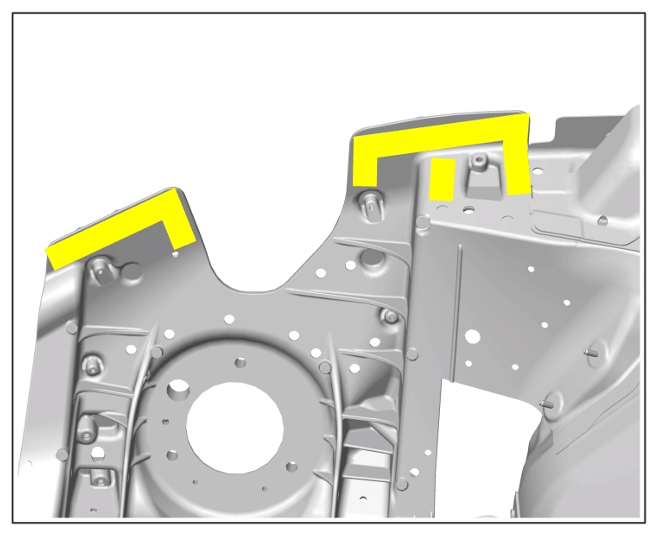

   Outer bonding areas

   Information

   • Apply adhesive evenly over the entire bonding surface.
4. Apply adhesive on bonding areas of the body.

   > 5X00IN21 WORKING WITH BODY STRUCTURAL ADHESIVE PAH.071.781.00

   > Application depth 0, 5 mm

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

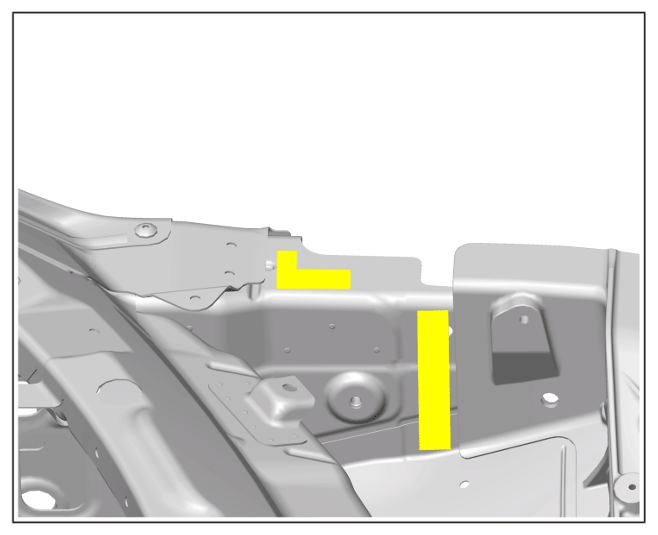

   Upper bonding areas

   Information

   • Apply adhesive evenly over the entire bonding surface.
5. Apply adhesive on longitudinal member for wheel housing upper section.

   > 5X00IN21 WORKING WITH BODY STRUCTURAL ADHESIVE PAH.071.781.00

   > Application depth 0.5 mm

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

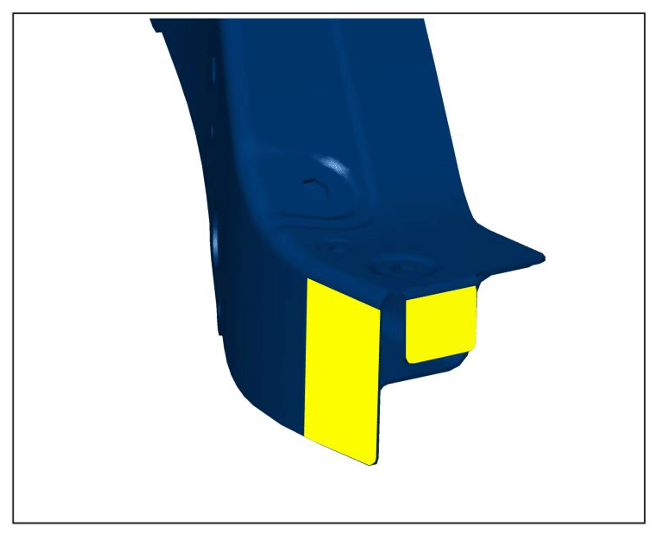

   Front bonding areas

   1. 5.1 Also apply a bead of adhesive all around the bonding surface.

      > Application depth 3 mm

   Information

   • Apply adhesive evenly over the entire bonding surface.
6. Apply adhesive on longitudinal member for wheel housing upper section.

   > 5X00IN21 WORKING WITH BODY STRUCTURAL ADHESIVE PAH.071.781.00

   > Application depth 0.5 mm

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

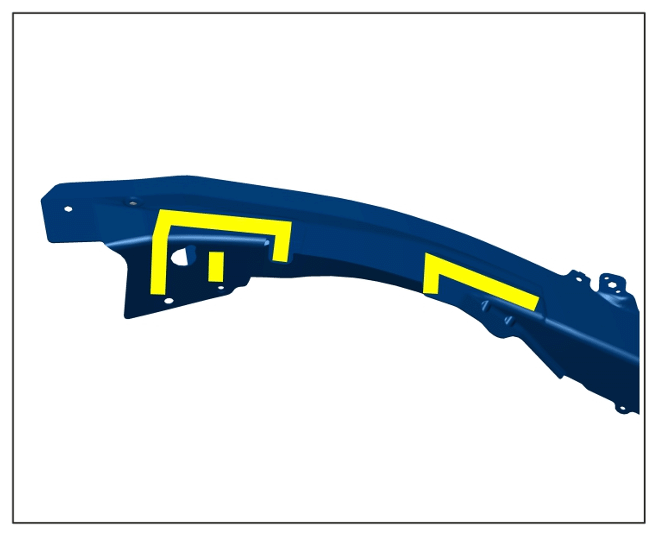

   Inner bonding areas

   1. 6.1 Also apply a bead of adhesive all around the bonding surface.

      > Application depth 3 mm

7. Rivet in longitudinal member for inner wheel housing upper section.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

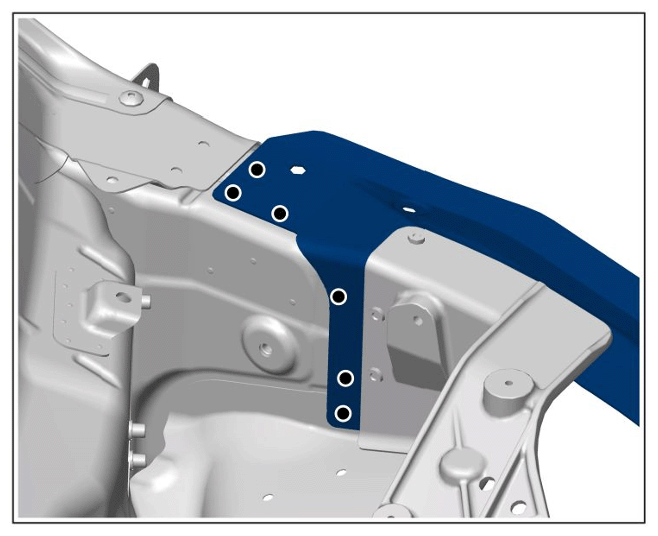

   Top punch rivets

   > BLIND RIVET 999.190.227.01

8. Rivet in longitudinal member for inner wheel housing upper section.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

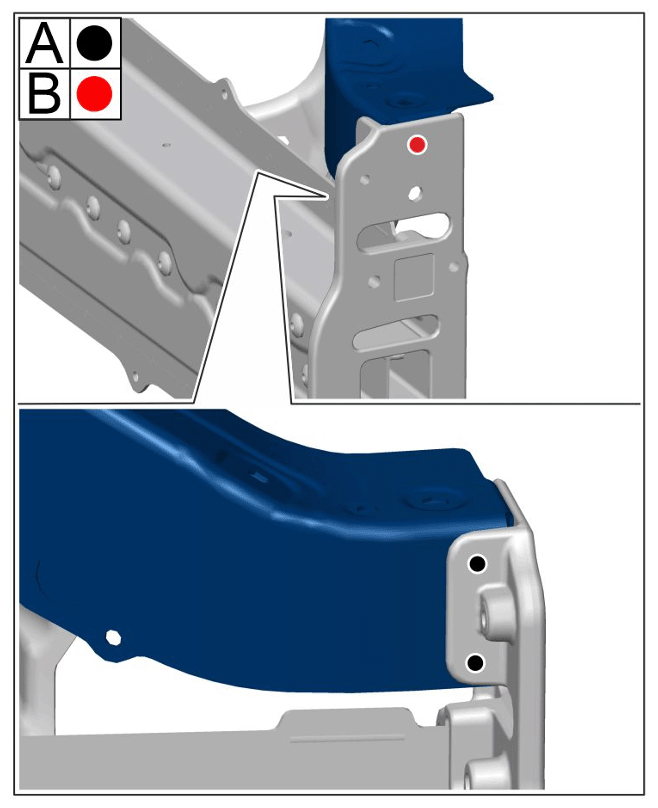

Blind rivets, front
