Removing Front Wheel Housing Liner (Front Section)

WARNING: This page is about a different car, the 2023 Porsche Taycan and 2022 Porsche Taycan. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove front wheel housing liner (front section) -1-  .

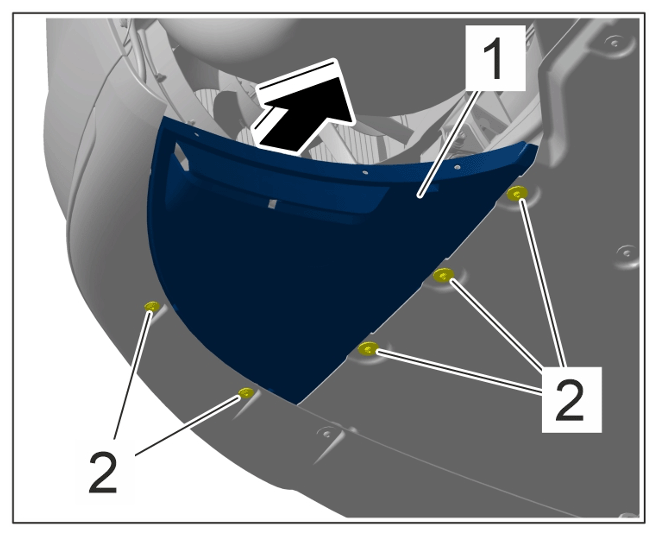

    G15560009Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Front wheel housing liner (front section)

    1. 1.1 Unscrew and remove screws -2-  .
    2. 1.2 Pull front wheel housing liner (front section) -1-  out of the front apron -Arrow-  and remove it.
