Removing Front Wheel Housing Liner

WARNING: This page is about a different car, the 2023 Porsche Taycan and 2022 Porsche Taycan. However, it is still accessible from the selected car via links, so may be relevant.

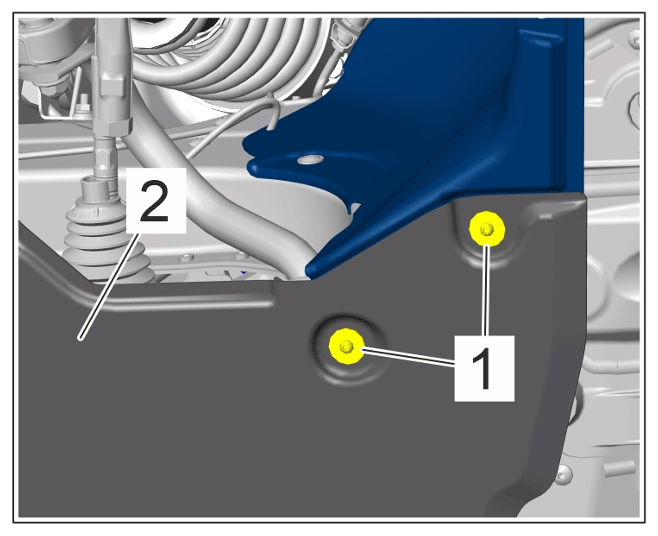

  1. Unscrew bottom screws -1-  from cover for front underbody -2-  .
    G15560017Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Bottom screws

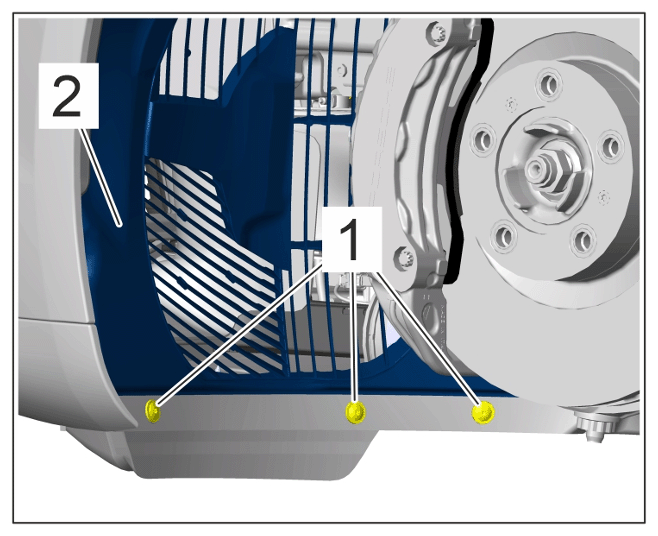

  2. Unscrew bottom screws -1-  from front wheel housing liner -2-  .
    G15560018Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Bottom screws

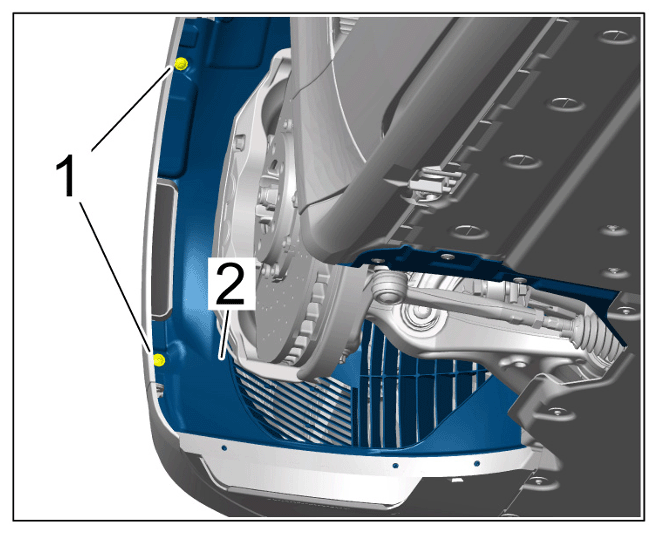

  3. Unscrew side screws -1-  from front wheel housing liner -2-  .
    G15560019Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Side screws

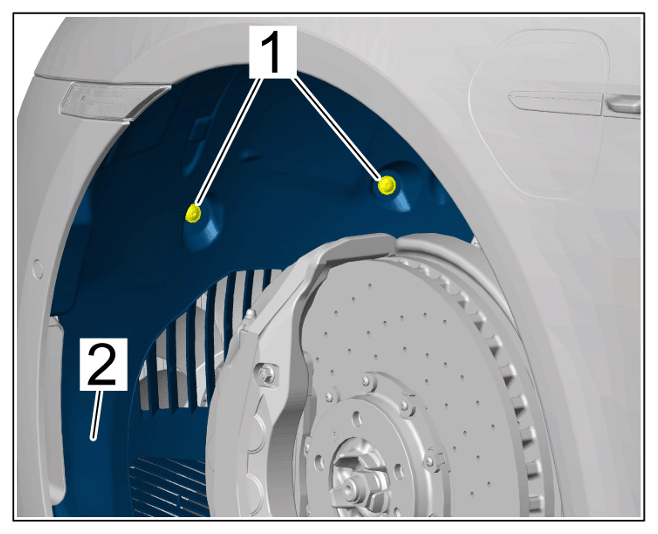

  4. Unscrew top screws -1-  from front wheel housing liner -2-  .
    G15560020Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Top screws

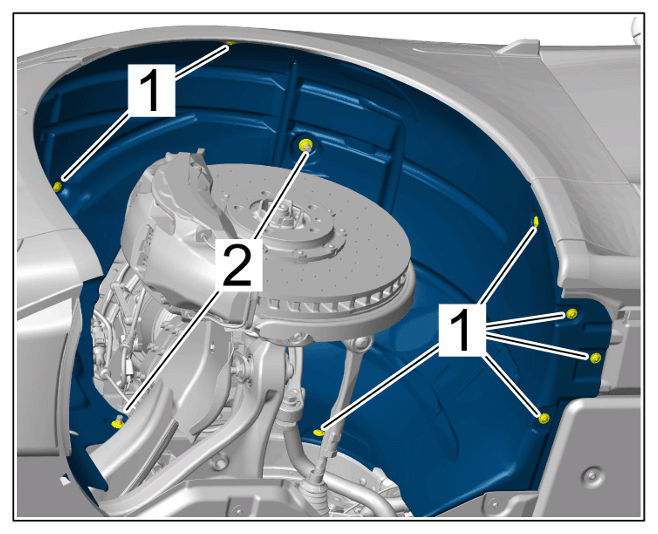

  5. Unscrew bottom screws -1-  and screw off nuts -2-  .
    G15560021Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Bottom screws

  6. Remove front wheel housing liner.
