Technical Values

WARNING: This page is about a different car, the 2023 Porsche Taycan and 2022 Porsche Taycan. However, it is still accessible from the selected car via links, so may be relevant.

Location	Des...	Type	Basic val...

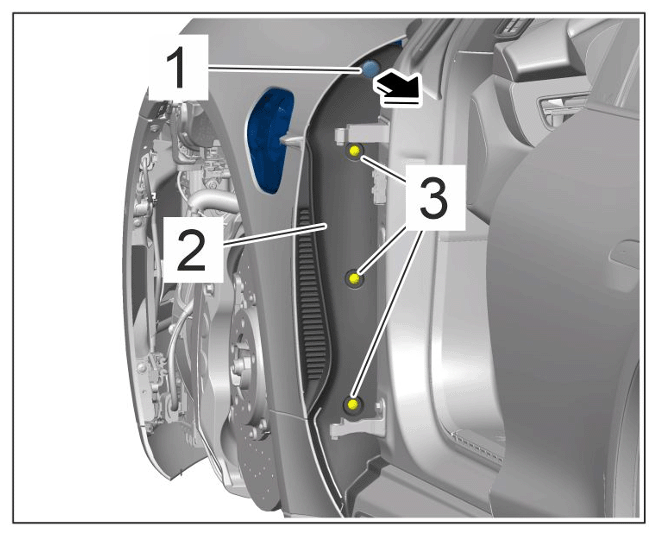

Screws securing wing trim panel to wing mounting rail Courtesy of PORSCHE CARS NORTH AMERICA, INC. Wing trim panel	Item 3	Tightening torque	2.8 Nm (2 ftlb.)

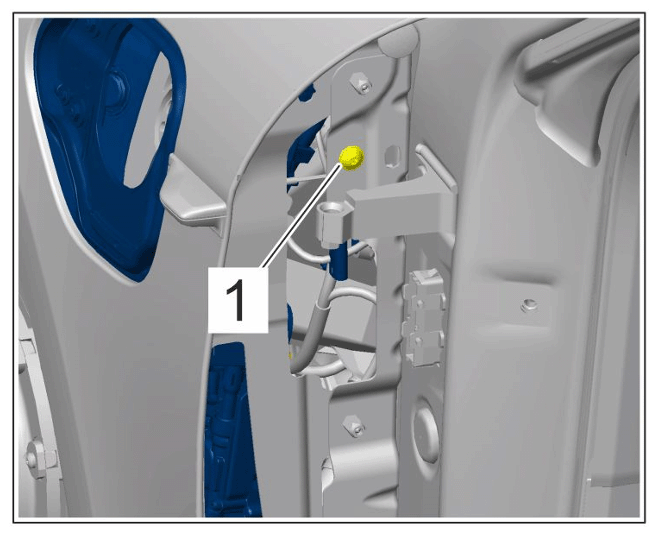

Screw securing left charging socket to wing mounting rail Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screw	Item 1	Tightening torque	4.5 Nm (3.25 ftlb.)

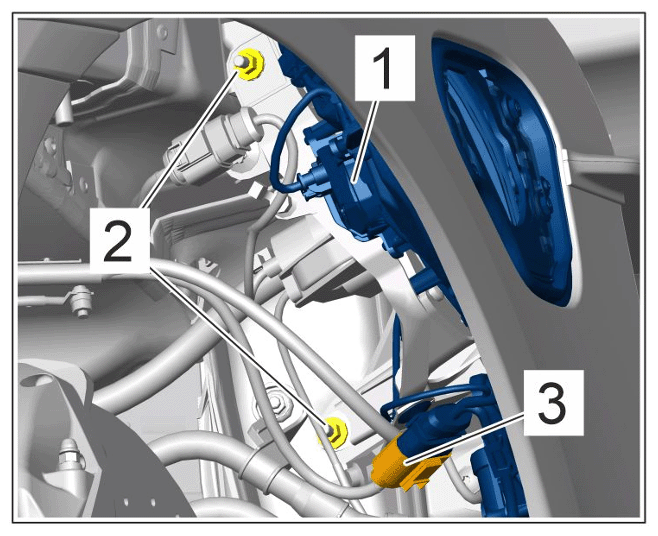

Nuts securing left charging socket to body Courtesy of PORSCHE CARS NORTH AMERICA, INC. Nuts	Item 2	Tightening torque	8 Nm (6 ftlb.)

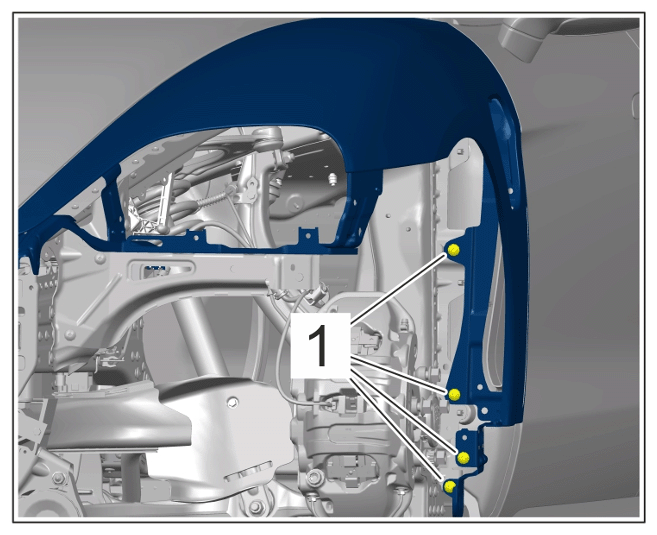

Screws securing front wing to upper longitudinal member Courtesy of PORSCHE CARS NORTH AMERICA, INC.PORSCHE CARS NORTH AMERICA, INC. Screws Courtesy of PORSCHE CARS NORTH AMERICA, INC.PORSCHE CARS NORTH AMERICA, INC. Screw	Items 1 and 2	Tightening torque	8 Nm (6 ftlb.)

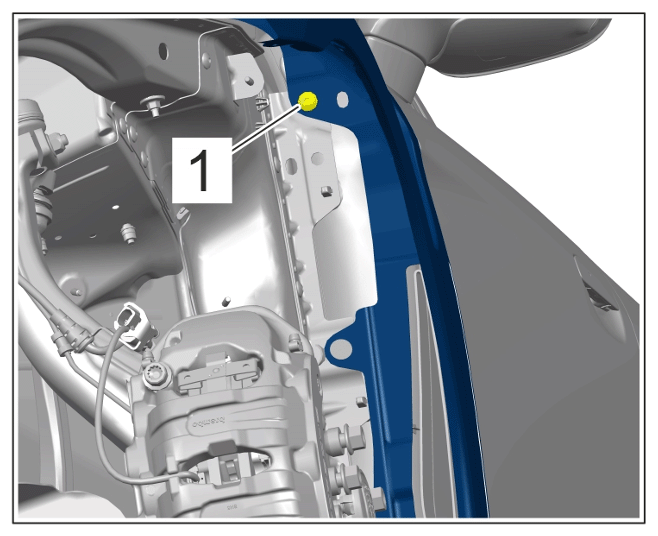

Screws securing front wing to wing trim holder Courtesy of PORSCHE CARS NORTH AMERICA, INC. Wing at wheel housing	Item 1	Tightening torque	8 Nm (6 ftlb.)

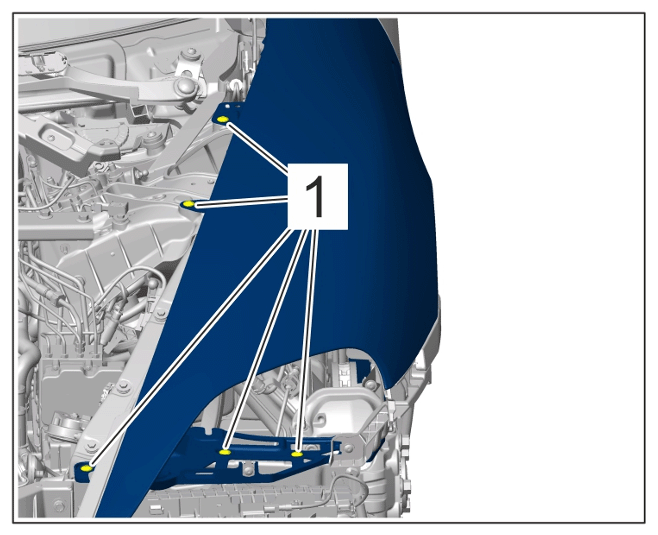

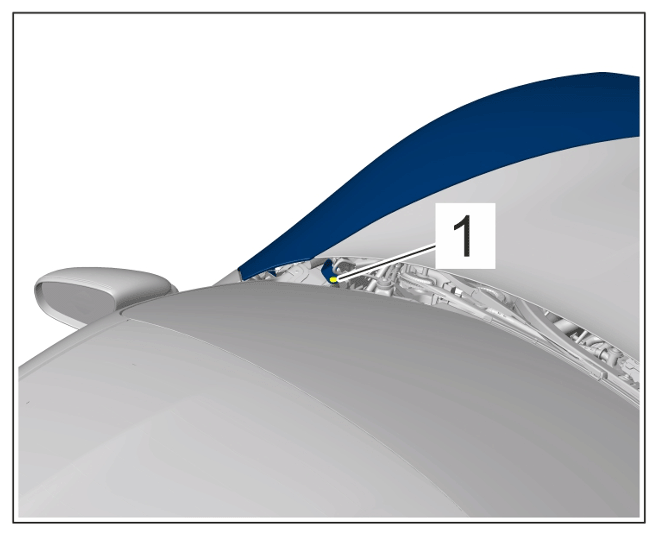

Screw securing front wing to wing mounting rail Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws	Item 1	Tightening torque	8 Nm (6 ftlb.)

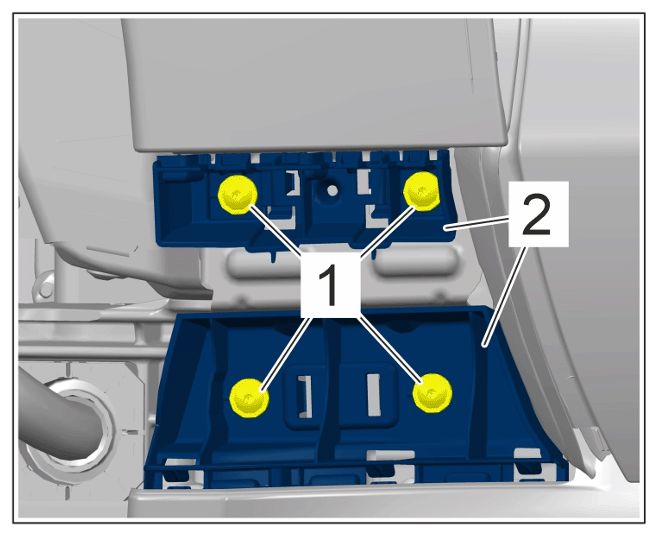

Screws securing retaining strip for side skirts to wing trim holder Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws at wheel housing	Item 1	Tightening torque	2.8 Nm (2 ftlb.)
