Removing Front Wing

WARNING: This page is about a different car, the 2023 Porsche Taycan and 2022 Porsche Taycan. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Incorrect handling of high-voltage components

Electric shock
Short circuit
Fire
Explosion
→ Only appropriately trained and authorised persons are permitted to work on high-voltage vehicles and components.

→ Required qualification: High voltage technician or high voltage expert.

→ Observe national requirements and legislation for this work.

→ Always use insulated tools, e.g. > VAS 6883 - Insulated Tool Set when working on these components.

→ Observe general warning notes for working on the high-voltage system.

> 2X00IN GENERAL WARNING NOTES FOR WORKING ON THE HIGH-VOLTAGE SYSTEM

Information

Handling high-voltage lines:

Do not support yourself or your tools on high-voltage lines and their components.
Work involving metal-removing, deforming and sharp-edged tools close to high-voltage components and lines is prohibited.
Work involving heat sources such as welding, soldering, hot air and thermal bonding close to high-voltage components and lines is prohibited.
High-voltage lines must not be extensively bent or kinked.
A visual inspection of the high-voltage connectors must be performed before installing the high-voltage lines. If there are signs of damage to the connectors, contacts and seals, the high-voltage line must be replaced.
In the event of queries or uncertainties, consult the relevant high voltage technician.

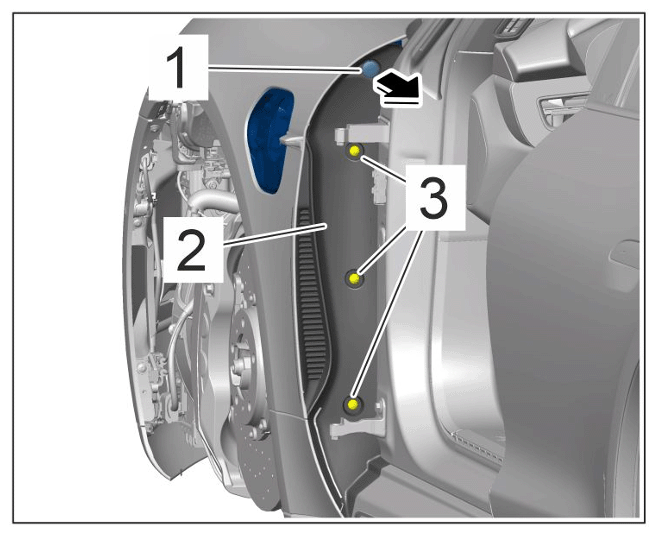

Remove wing trim panel -2- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Wing trim panel
1. 1.1 Unclip pull knob -1- (-Arrow- ).
2. 1.2 Unscrew screws -3- .
3. 1.3 Remove wing trim panel -2- and feed out pull knob -1- .
Unscrew screw -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screw

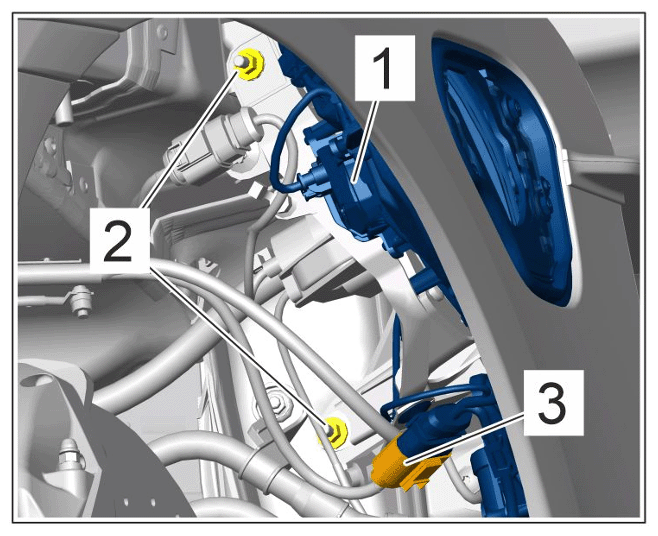

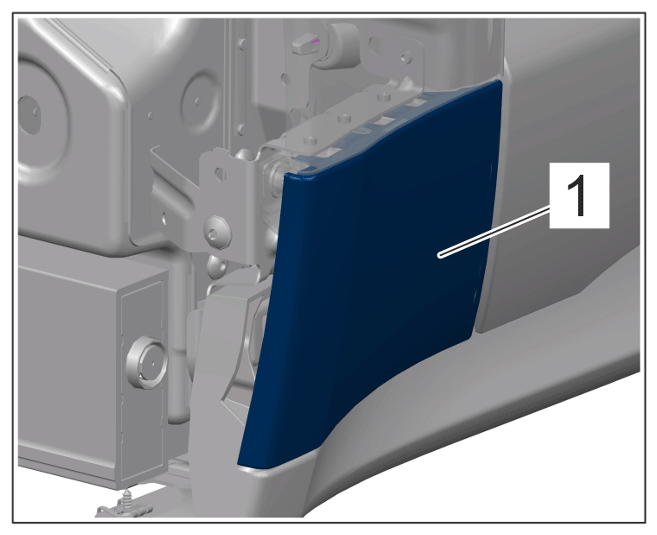

Disconnect electric power supply flap (module) -1- with charging socket.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Nuts
1. 3.1 Release and disconnect electric plug connection -3- .
2. 3.2 Unscrew nuts -2- .
Swivel out electric power supply flap (module) -1- with charging socket and secure it -Arrow- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Electric power supply flap (module)

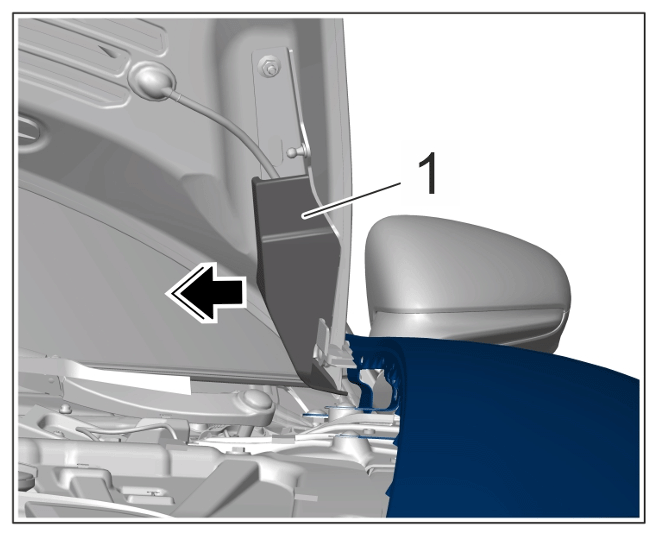

Unclip cover on hinge -1- and remove it by pulling it inwards -Arrow- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Cover on hinge

Information

The front lid must be closed in order to reach the screw at the very back.

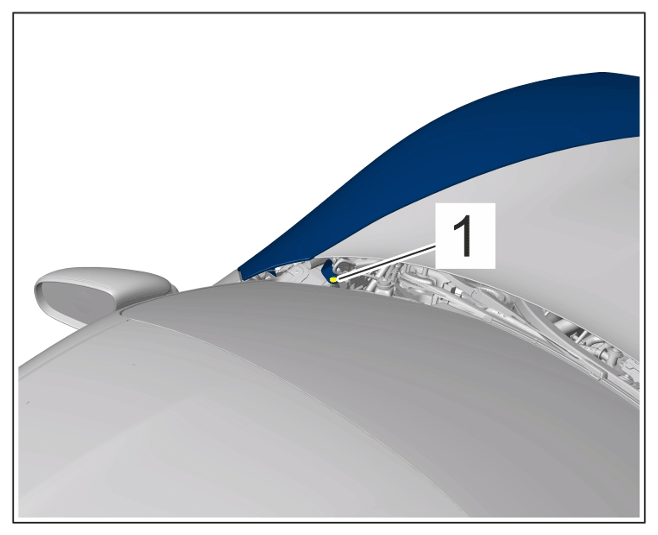

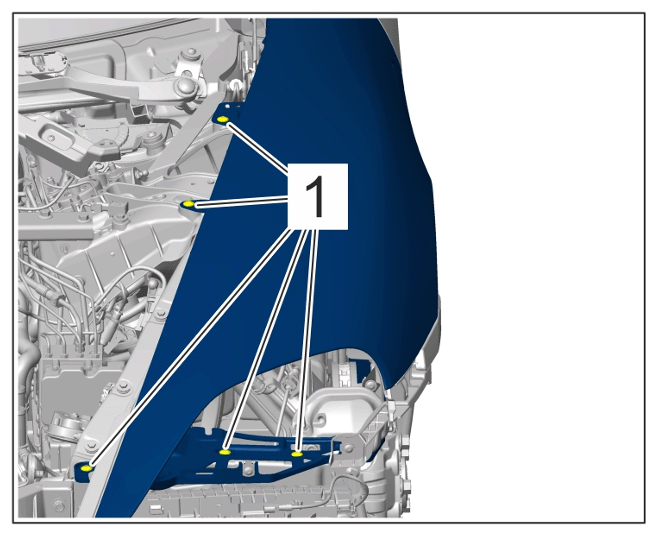

Unscrew screws -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

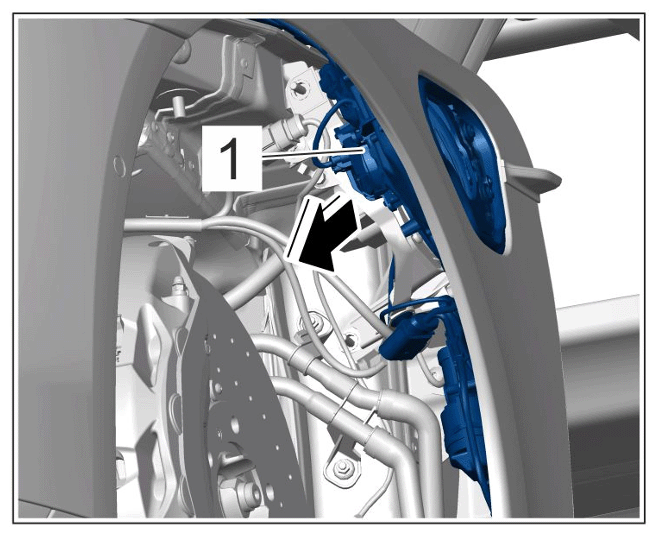

Front wing

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Wing

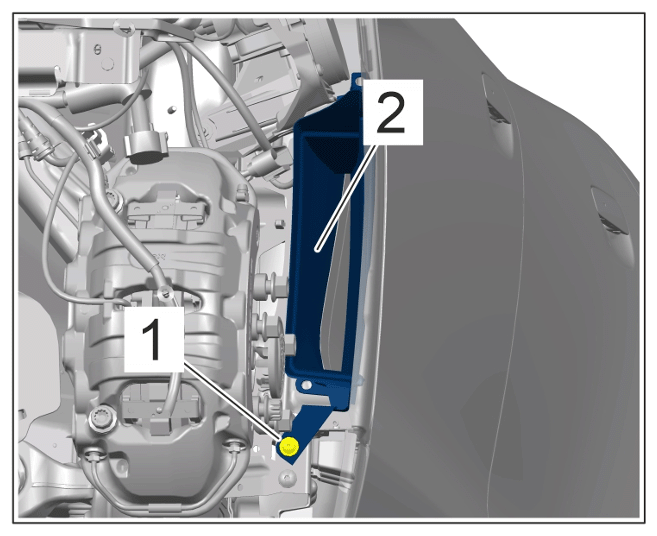

Unscrew screw -1- and remove air guide -2- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Air guide
Unclip cover on front wing -1- and remove it.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Cover on front wing

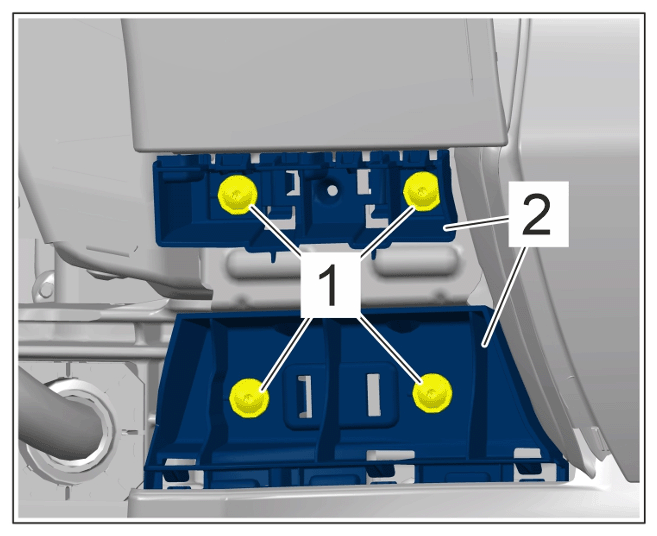

Unscrew screws -1- and remove retaining strips for side skirts -2- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Retaining strip for side skirts

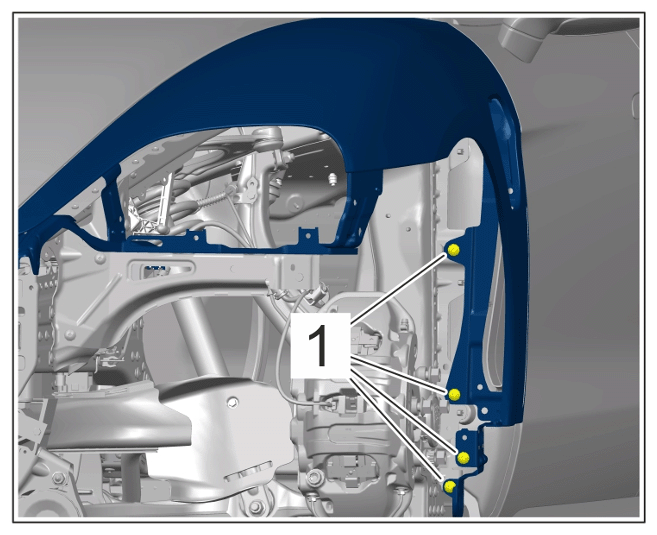

Unscrew screws -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Front wing

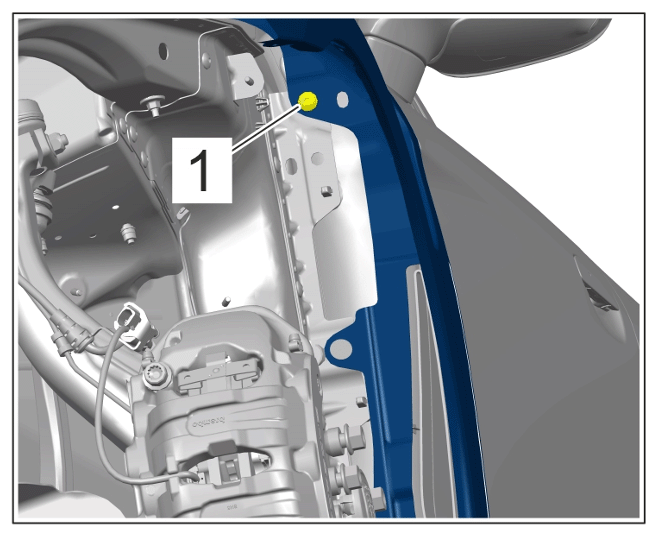

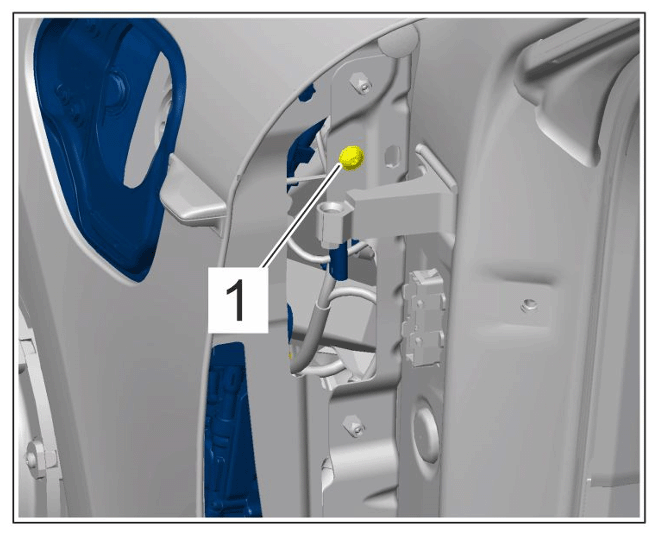

Unscrew screw -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screw
Guide out and remove front wing.
