Removing Front Wing Connection Panel

WARNING: This page is about a different car, the 2023 Porsche Taycan and 2022 Porsche Taycan. However, it is still accessible from the selected car via links, so may be relevant.

Information

Only drill through one plate thickness on the spotwelds. Do not damage the component underneath.

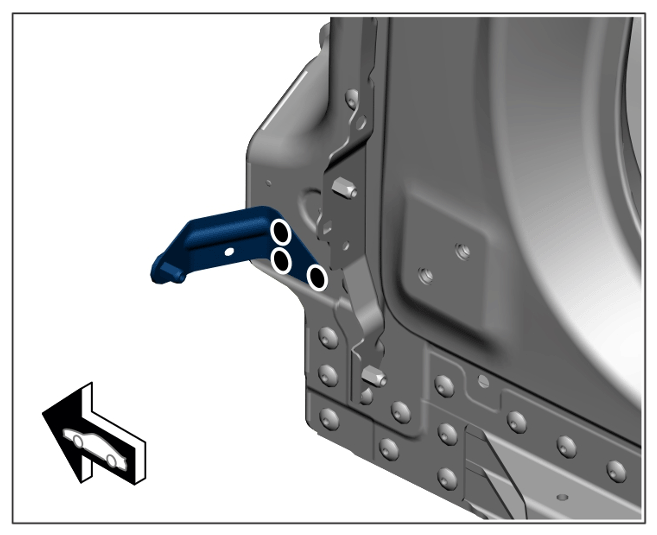

  1. Drill out spotwelds.
    G15559968Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Spotwelds

  2. Remove front wing connection panel.
