Preparing Rear Wing Joining Plate For Installation

WARNING: This page is about a different car, the 2023 Porsche Taycan and 2022 Porsche Taycan. However, it is still accessible from the selected car via links, so may be relevant.
  1. Fit in rear wing joining plate on the body, check that it fits perfectly and remove it.
  2. Prepare marked area for bonding.

    > 5X00IN21 WORKING WITH BODY STRUCTURAL ADHESIVE PAH.071.781.00

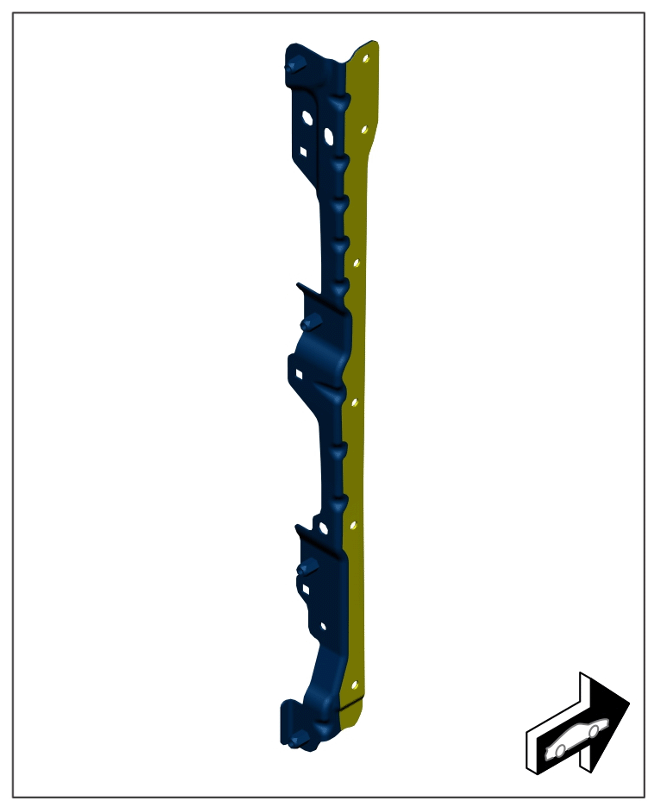

G15559981Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Bonding area
