Preparing Front Wing Joining Plate For Installation

WARNING: This page is about a different car, the 2023 Porsche Taycan and 2022 Porsche Taycan. However, it is still accessible from the selected car via links, so may be relevant.

Fit front wing joining plate on the body using the front wing, check that it fits perfectly and mark the position.

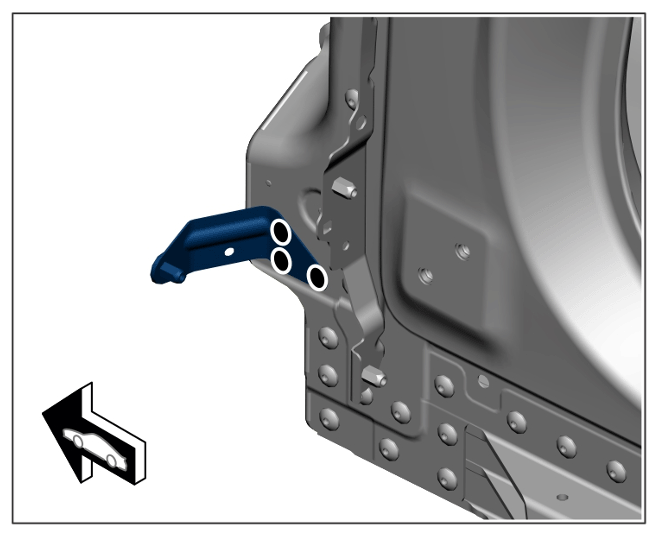

Drill bores for blind rivets through both sheet metal panels using > Diameter 6.6 mm .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Bore holes

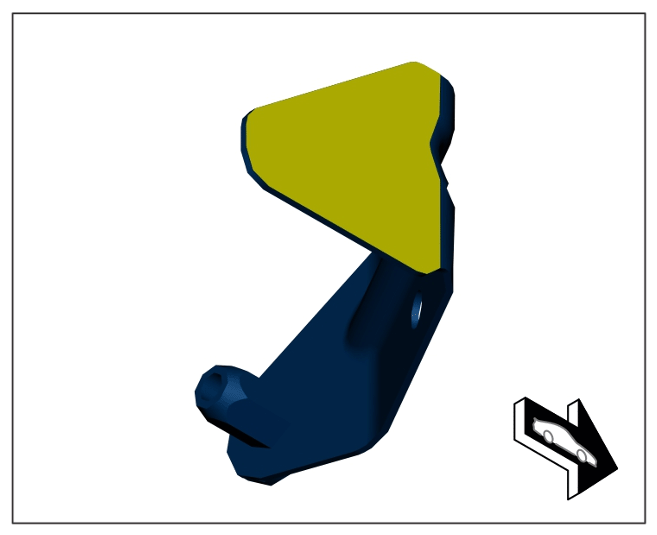

Prepare marked area for bonding and riveting.
> 5X00IN21 WORKING WITH BODY STRUCTURAL ADHESIVE PAH.071.781.00

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Bonding area
