Preparing Connection Areas Of The Body For Installation

WARNING: This page is about a different car, the 2023 Porsche Taycan and 2022 Porsche Taycan. However, it is still accessible from the selected car via links, so may be relevant.

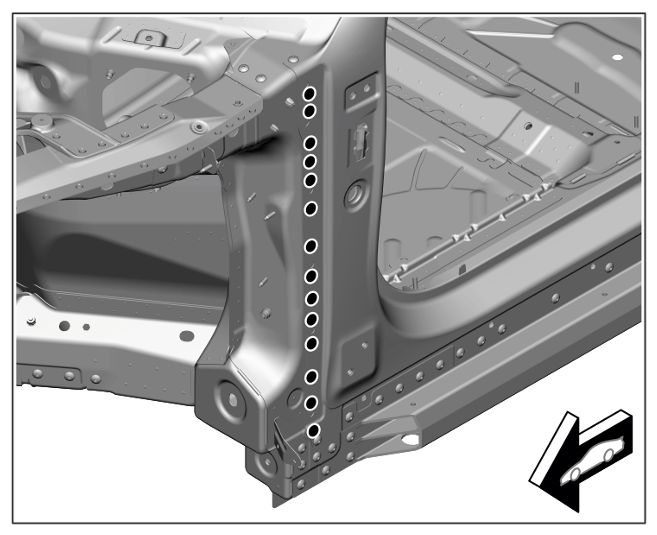

De-burr contact surfaces and connection points.

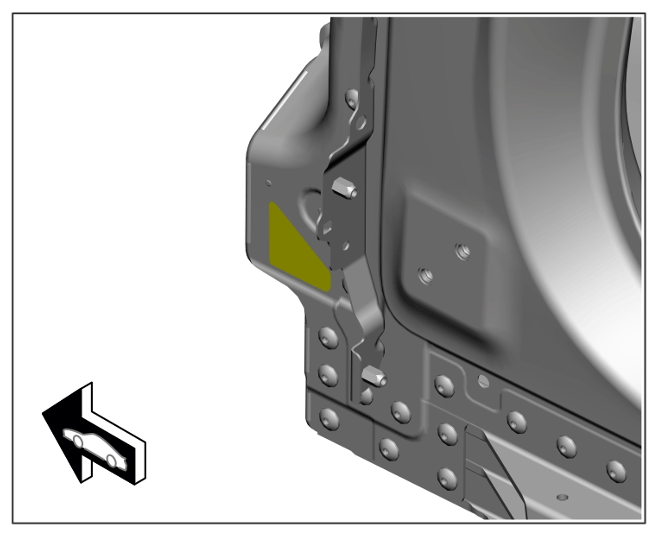

Prepare marked area for bonding and riveting.
> 5X00IN21 WORKING WITH BODY STRUCTURAL ADHESIVE PAH.071.781.00

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Bonding area

Carefully reshape the protruding areas of the penetrated joints using a hammer from the > V.A.G 2010/2A - Aluminium tool set so that a flat contact surface is formed.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Contact surface
Prepare marked area for bonding.
> 5X00IN21 WORKING WITH BODY STRUCTURAL ADHESIVE PAH.071.781.00

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Bonding area
