Installing Front Wing Joining Plate

WARNING: This page is about a different car, the 2023 Porsche Taycan and 2022 Porsche Taycan. However, it is still accessible from the selected car via links, so may be relevant.

Information

Before final assembly, make sure you fully understand all the work steps involved and carry out a trial assembly without applying adhesive.
The bonding process can only be carried out reliably when a smooth and swift sequence of operations is guaranteed.
Do not begin bonding work until all materials and tools necessary for later repair work are available.

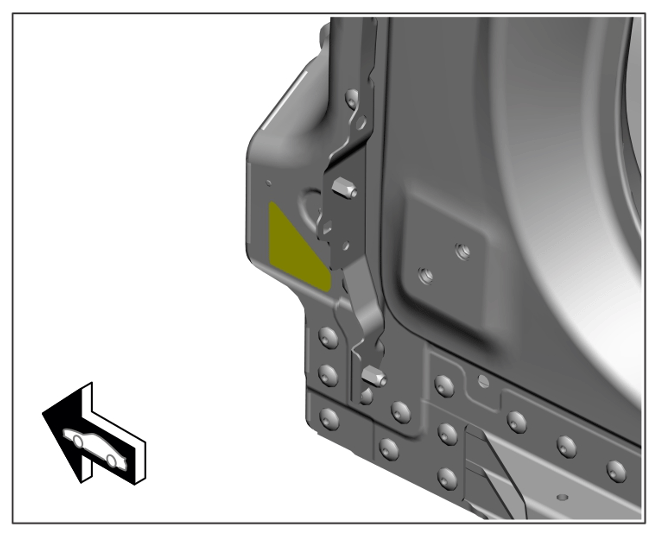

Apply adhesive evenly on the bonding area of the body.
> 5X00IN21 WORKING WITH BODY STRUCTURAL ADHESIVE PAH.071.781.00

> Application depth 0.5 mm

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Bonding area

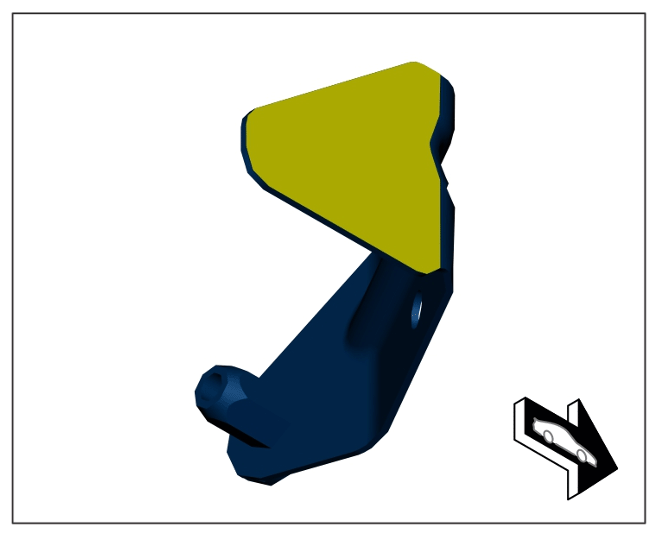

Apply adhesive evenly on the bonding area of the front wing joining plate.
> 5X00IN21 WORKING WITH BODY STRUCTURAL ADHESIVE PAH.071.781.00

> Application depth 0.5 mm
1. 2.1 Also apply a bead of adhesive all around the bonding surface.
  > Application depth 3 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Bonding area

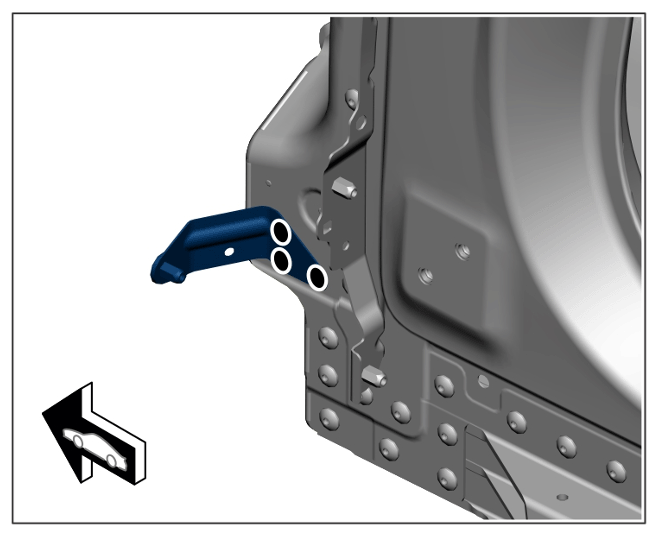

Rivet in front wing joining plate. > BLIND RIVET 999.190.227.01

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Blind rivets
