Installing Support

WARNING: This page is about a different car, the 2023 Porsche Taycan and 2022 Porsche Taycan. However, it is still accessible from the selected car via links, so may be relevant.

Information

Before final assembly, make sure you fully understand all the work steps involved and carry out a trial assembly without applying adhesive.
The bonding process can only be carried out reliably when a smooth and swift sequence of operations is guaranteed.
Do not begin bonding work until all materials and tools necessary for later repair work are available.

Fit support and check that it fits perfectly.
Information
- Apply adhesive evenly over the entire bonding surface.
Apply adhesive on bonding areas of the body.
> 5X00IN21 WORKING WITH BODY STRUCTURAL ADHESIVE PAH.071.781.00

> Application depth 3 mm

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

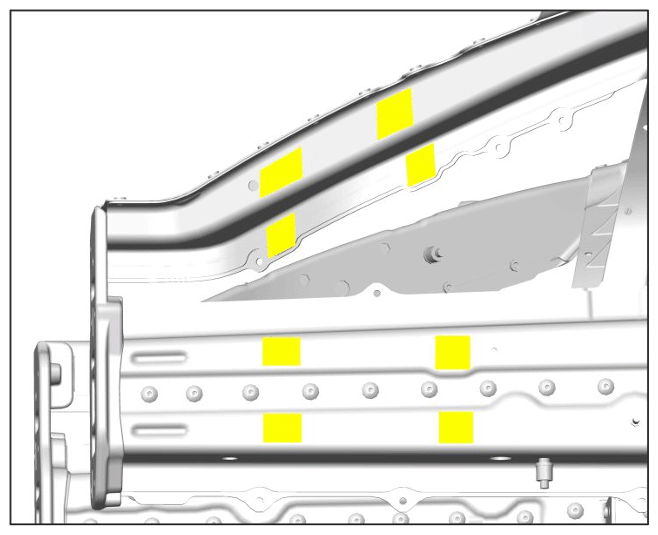

Bonding areas

Information
- Apply adhesive evenly over the entire bonding surface.
Apply adhesive on support.
> 5X00IN21 WORKING WITH BODY STRUCTURAL ADHESIVE PAH.071.781.00

> Application depth 0.5 mm

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

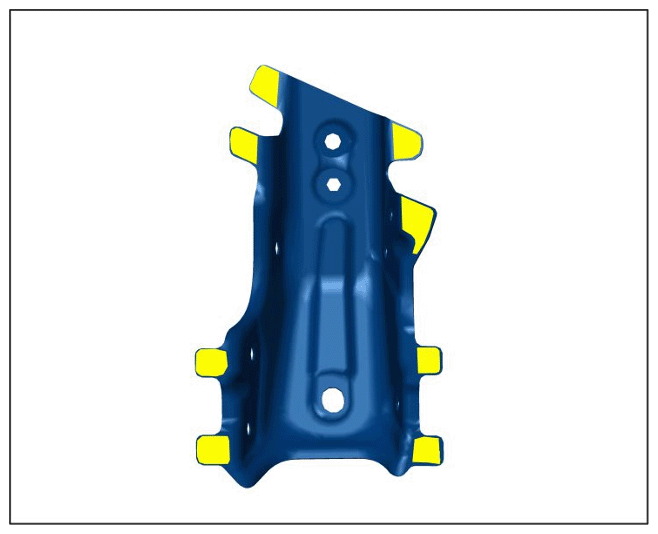

Bonding areas
1. 3.1 Also apply a bead of adhesive all around the bonding surface.
  > Application depth 3 mm
Install support.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

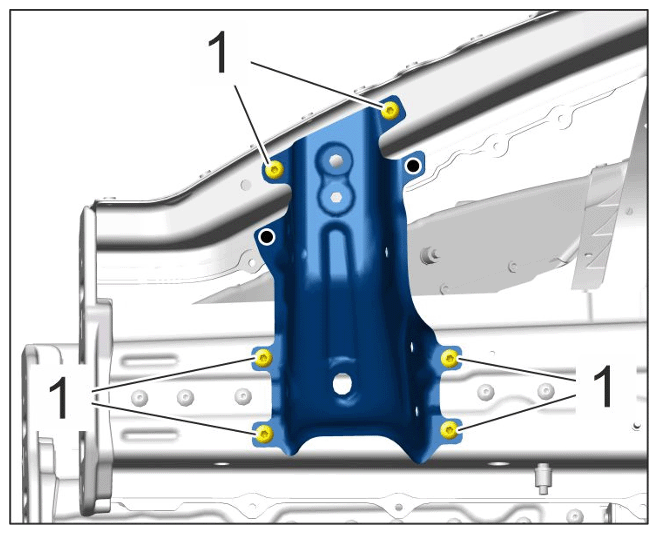

Support
1. 4.1 Screw in self-tapping screws -1- .
  > 5X00IN24 SETTING SELF-TAPPING SCREWS
2. 4.2 Rivet in support.
  > BLIND RIVET 999.190.229.01
