Removing Spring Strut Mount

WARNING: This page is about a different car, the 2023 Porsche Taycan and 2022 Porsche Taycan. However, it is still accessible from the selected car via links, so may be relevant.

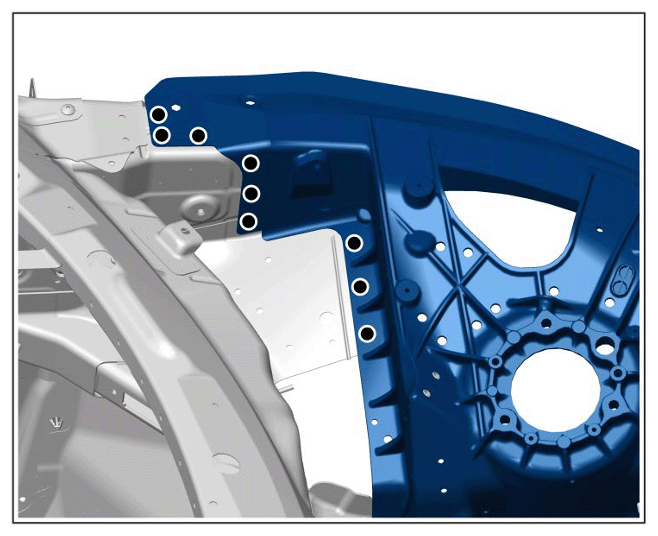

Remove punch rivets using > VAS 852 001 - Body Dent Removal System, Aluminium and > VAS 6790 - Compact Booster .
> 5X00IN23 REPLACING PUNCH RIVETS AND PENETRATED JOINTS

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Punch rivets

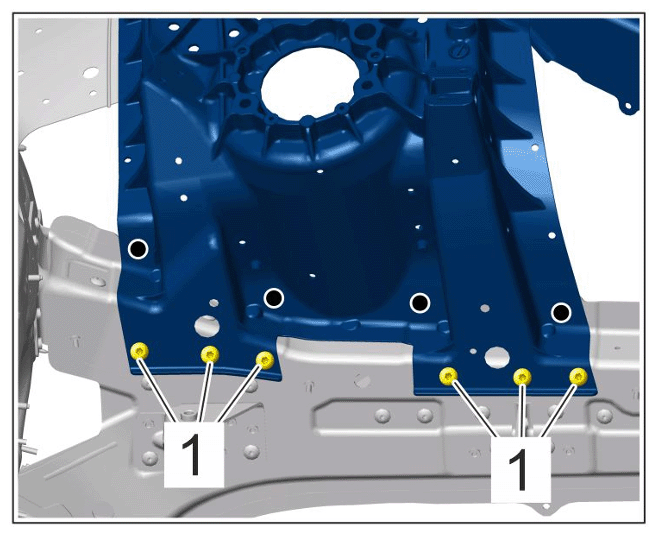

Loosen spring strut mount at the bottom.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Spring strut mount, bottom
1. 2.1 Unscrew self-tapping screws -1- .
2. 2.2 Remove punch rivets using > VAS 852 001 - Body Dent Removal System, Aluminium and > VAS 6790 - Compact Booster .
  > 5X00IN23 REPLACING PUNCH RIVETS AND PENETRATED JOINTS

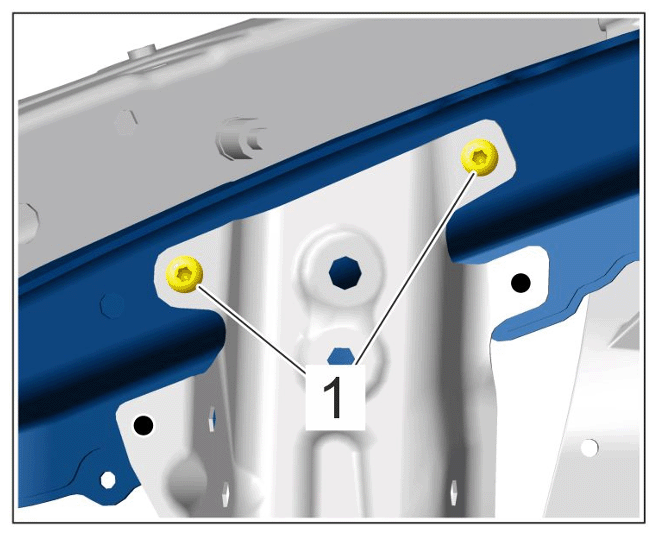

Loosen spring strut mount at the top.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Spring strut mount, top
1. 3.1 Unscrew self-tapping screws -1- .
2. 3.2 Remove punch rivets using > VAS 852 001 - Body Dent Removal System, Aluminium and > VAS 6790 - Compact Booster .
  > 5X00IN23 REPLACING PUNCH RIVETS AND PENETRATED JOINTS

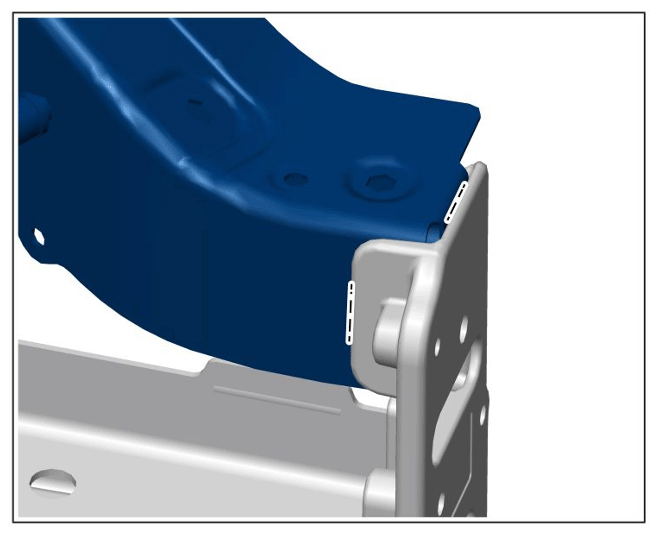

Grind down welded seams.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Welded seams

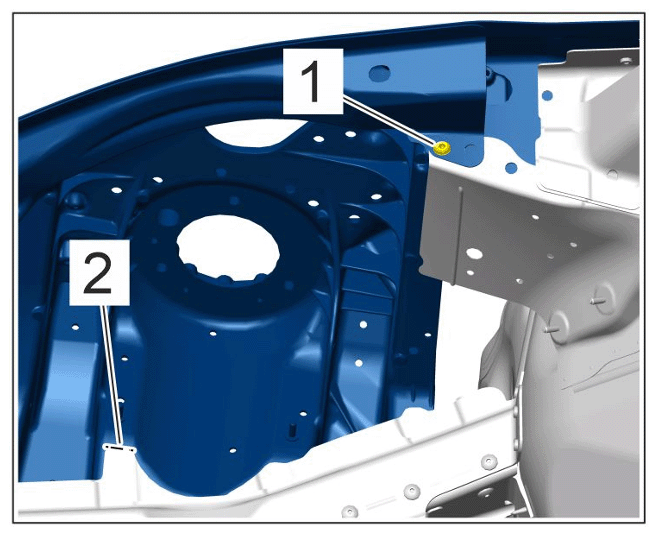

Loosen spring strut mount.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Self-tapping screw
1. 5.1 Unscrew self-tapping screw -1- .
2. 5.2 Grind down welded seam -2- .
Heat inner bonding areas using > V.A.G 1416 - Hot-Air Blower .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Inner bonding areas

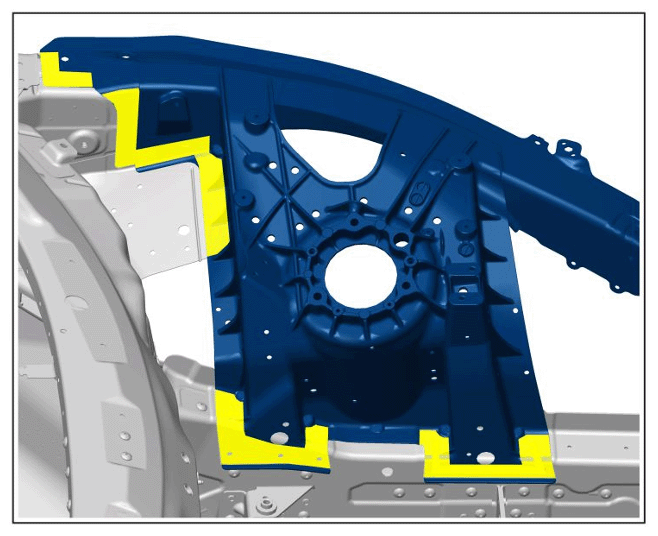

Heat outer bonding areas using > V.A.G 1416 - Hot-Air Blower .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Outer bonding areas
Remove spring strut mount.
