Removing Striker Plate
WARNING: This page is about a different car, the 2023 Porsche Taycan and 2022 Porsche Taycan. However, it is still accessible from the selected car via links, so may be relevant.
- Loosen striker plate.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|

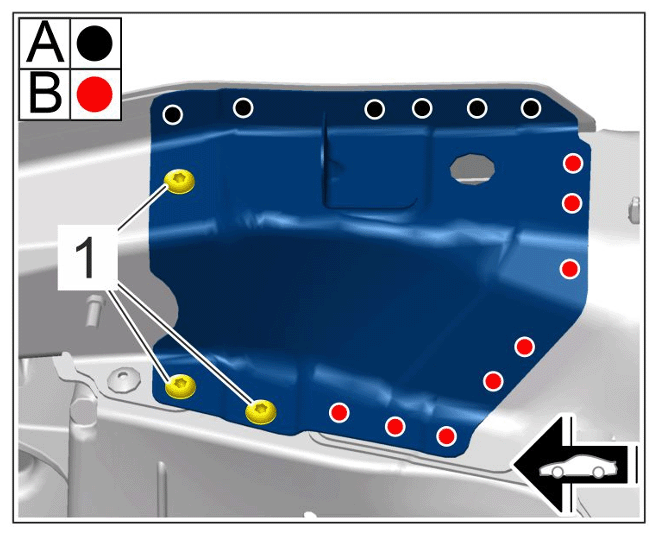

Striker plate
- 1.1 Unscrew self-tapping screws -1-
.
- 1.2 Loosen friction element welded joints -A-
.
> 5X00IN29 REPLACING FRICTION ELEMENT WELDED JOINT
- 1.3 Drill out spotwelds -B-
using > VAS 882 001 - spot-weld breaker
.
- Heat bonding areas using > V.A.G 1416 - hot-air blower
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|

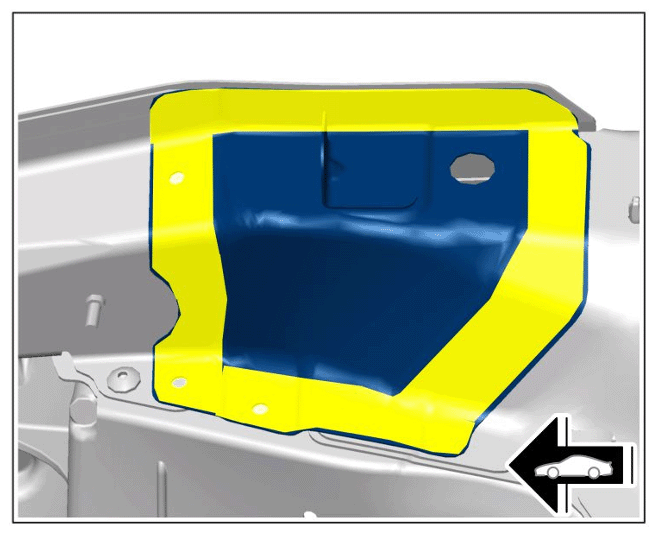

Bonding areas
- Removing striker plate.
