Preparing Spring Strut Mount For Installation

Information

• Before final assembly, make sure you fully understand all the work steps involved and carry out a trial assembly without applying adhesive.
• The bonding process can only be carried out reliably when a smooth and swift sequence of operations is guaranteed.
• Do not begin bonding work until all materials and tools necessary for later repair work are available.

1. Fit in spring strut mount and secure it to the body.
2. Drill bore holes for blind rivets through both sheet metal plates using > diameter 6.6 mm  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

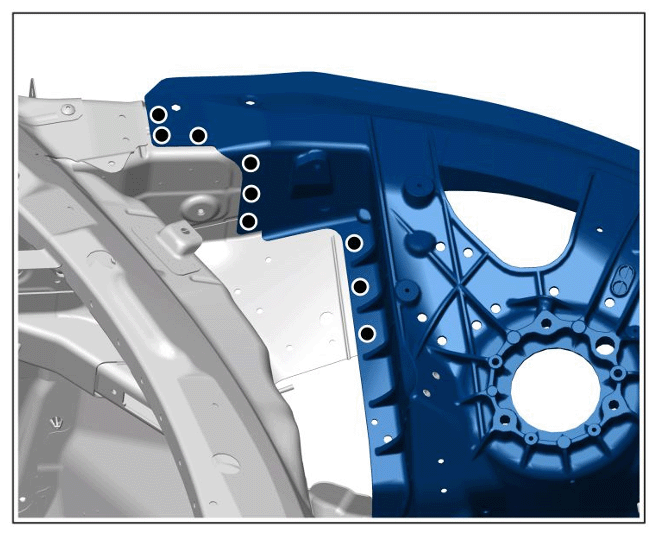

   Blind rivets, rear

3. Drill bore holes for blind rivets through both sheet metal plates using > diameter 6.6 mm  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

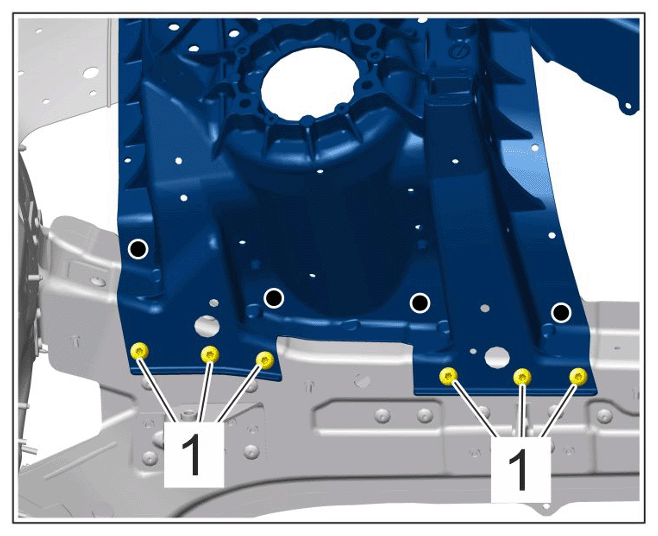

   Blind rivets, bottom

4. Drill bore holes for blind rivets through both sheet metal plates using > diameter 6.6 mm  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

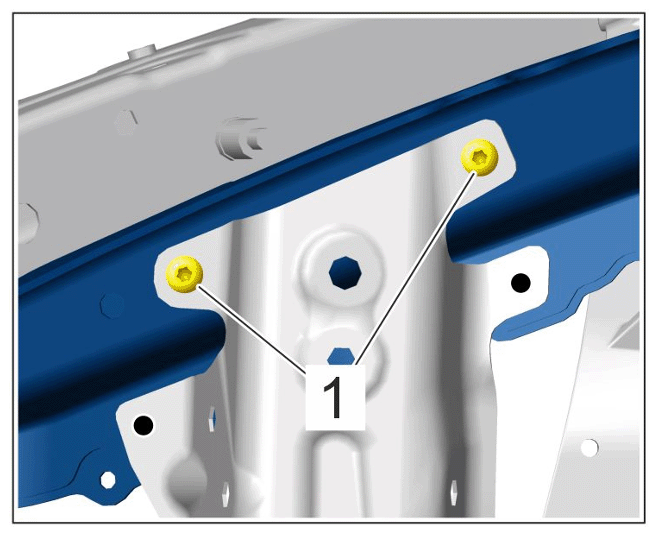

   Blind rivets, top

5. Prepare joints at the front.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

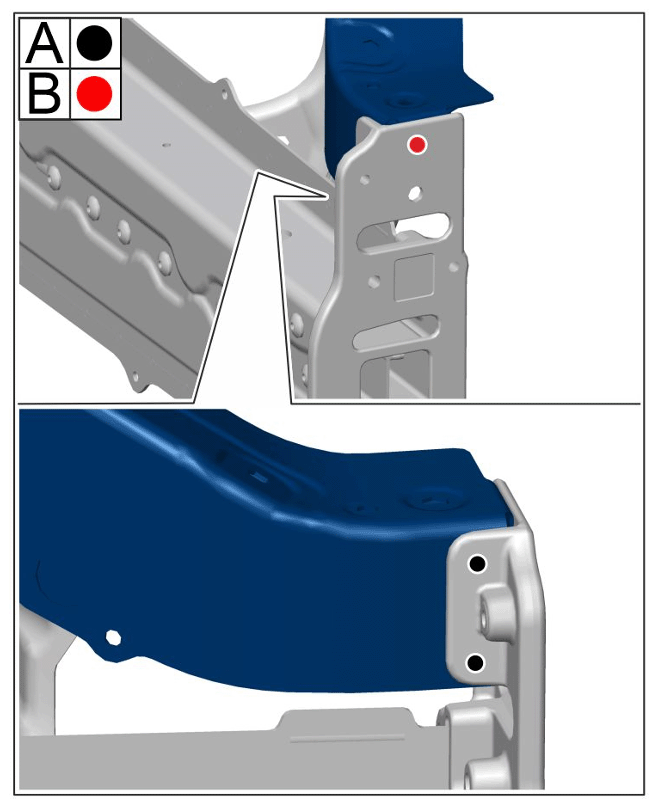

   Front joints

   1. 5.1 Drill bore holes for blind rivets -A-  using a drill bit with a diameter of > Diameter 6.6 mm  .
   2. 5.2 Drill bore hole for countersunk blind rivet -B-  using a drill bit with a diameter of > Diameter 6.5 mm  .
   3. 5.3 Make counterbore at the rivet hole -B-  using > VAS 6957 - 100° countersink  .
6. Remove spring strut mount.
7. Prepare front spring strut mount for bonding and riveting.

   > 5X00IN21 WORKING WITH BODY STRUCTURAL ADHESIVE PAH.071.781.00

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

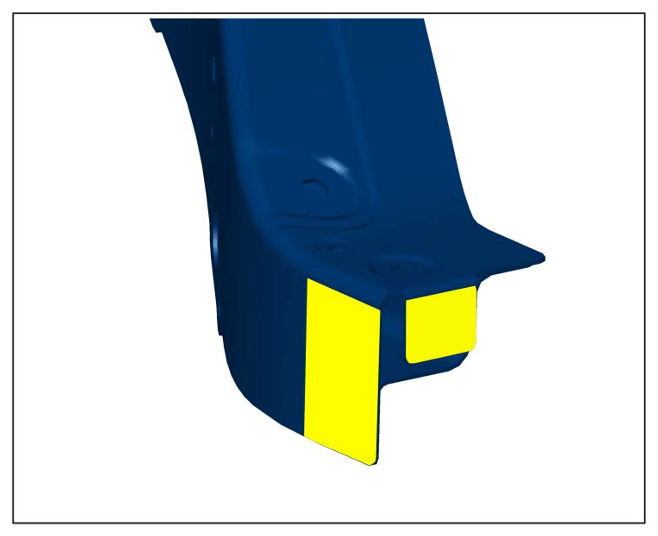

   Front bonding areas

8. Prepare joint areas of spring strut mount.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

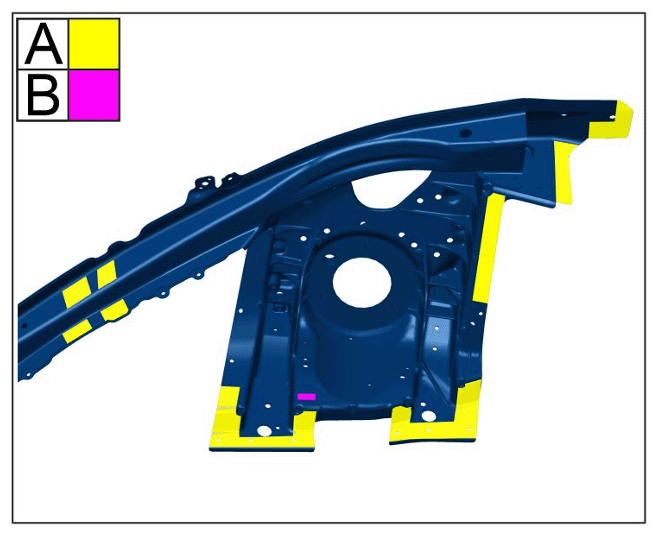

Joint areas

1. 8.1 Prepare spring strut mount in areas -A-  for bonding and riveting.

   > 5X00IN21 WORKING WITH BODY STRUCTURAL ADHESIVE PAH.071.781.00

2. 8.2 Prepare spring strut mount in area -B-  for aluminium welding.

   > 5X00IN10 WELDING ALUMINIUM
