Preparing Connection Areas Of Body For Installing Spring Strut Mount

WARNING: This page is about a different car, the 2023 Porsche Taycan and 2022 Porsche Taycan. However, it is still accessible from the selected car via links, so may be relevant.

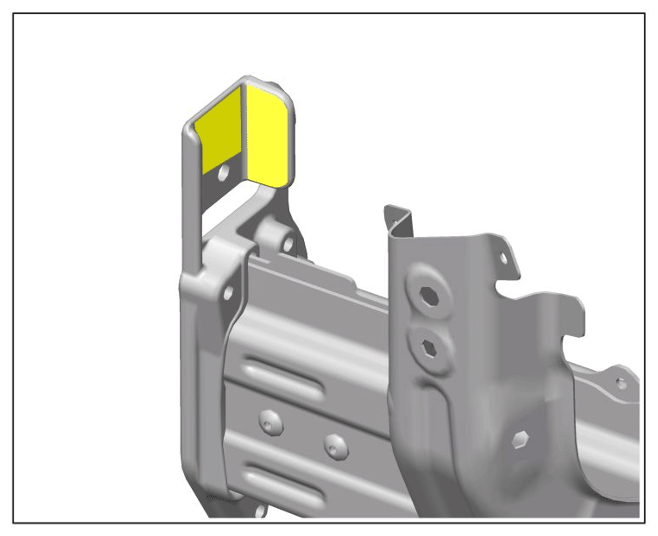

Align the sealing surfaces and connections of the body.
De-burr connection points and prepare them for joining.
Prepare marked areas for bonding and riveting.
> 5X00IN21 WORKING WITH BODY STRUCTURAL ADHESIVE PAH.071.781.00

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

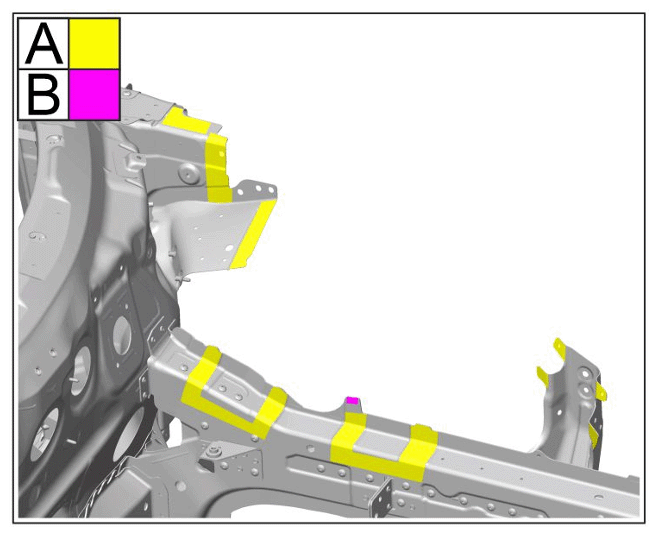

Front bonding areas
Prepare connection areas of the body for joining.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Connection areas
1. 4.1 Prepare marked areas -A- for bonding and riveting.
  > 5X00IN21 WORKING WITH BODY STRUCTURAL ADHESIVE PAH.071.781.00
2. 4.2 Prepare marked area -B- for aluminium welding.
  > 5X00IN10 WELDING ALUMINIUM
