Installing Spring Strut Mount

Information

Apply adhesive evenly over the entire bonding surface.

Information

• Before final assembly, make sure you fully understand all the work steps involved and carry out a trial assembly without applying adhesive.
• The bonding process can only be carried out reliably when a smooth and swift sequence of operations is guaranteed.
• Do not begin bonding work until all materials and tools necessary for later repair work are available.

1. Fit spring strut mount and check that it fits perfectly.

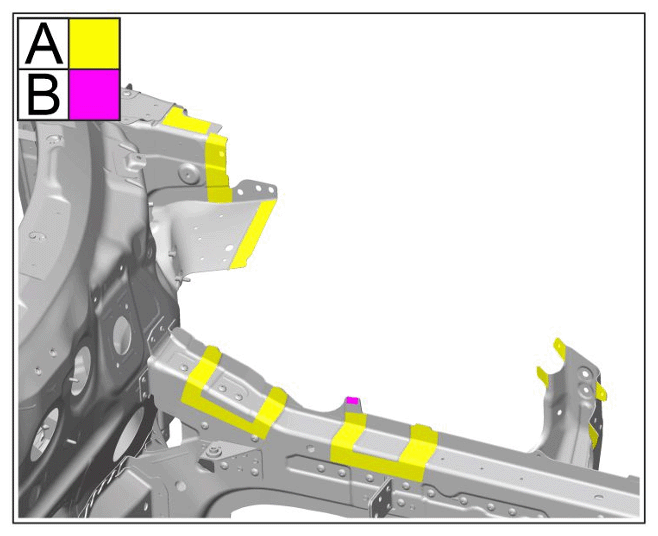

2. Apply adhesive on bonding areas of the body.

   > 5X00IN21 WORKING WITH BODY STRUCTURAL ADHESIVE PAH.071.781.00

   > Application depth 3 mm

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

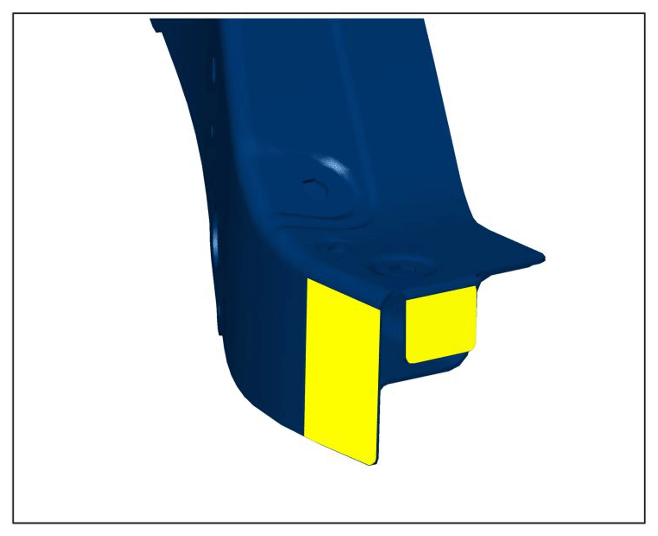

   Front bonding areas

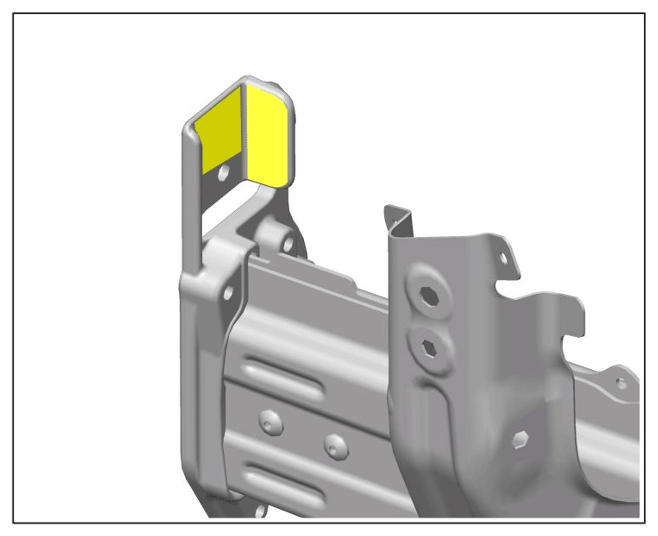

3. Apply adhesive on bonding areas -A-  of the body.

   > 5X00IN21 WORKING WITH BODY STRUCTURAL ADHESIVE PAH.071.781.00

   > Application depth 3 mm

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Bonding areas

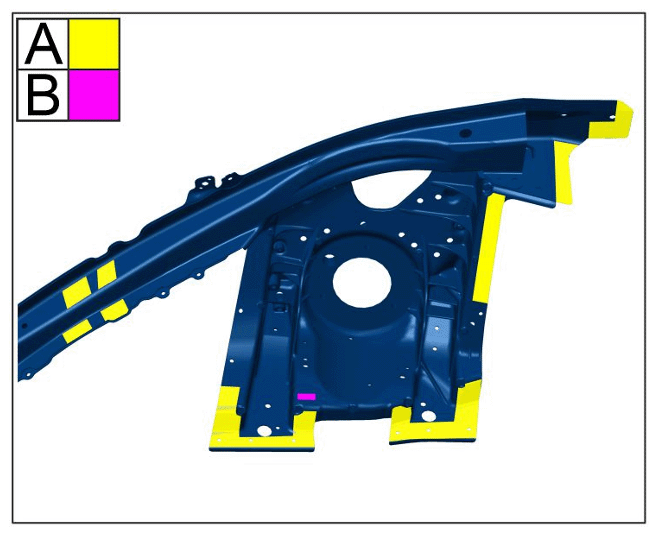

4. Apply adhesive on spring strut mount.

   > 5X00IN21 WORKING WITH BODY STRUCTURAL ADHESIVE PAH.071.781.00

   > Application depth 0.5 mm

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Front bonding areas

   1. 4.1 Also apply a bead of adhesive all around the bonding surface.

   > Application depth 3 mm

5. Apply adhesive to the spring strut mount in areas -A-  .

   > 5X00IN21 WORKING WITH BODY STRUCTURAL ADHESIVE PAH.071.781.00

   > Application depth 0.5 mm

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Bonding areas

   1. 5.1 Also apply a bead of adhesive all around the bonding surface -A-  .

   > Application depth 3 mm

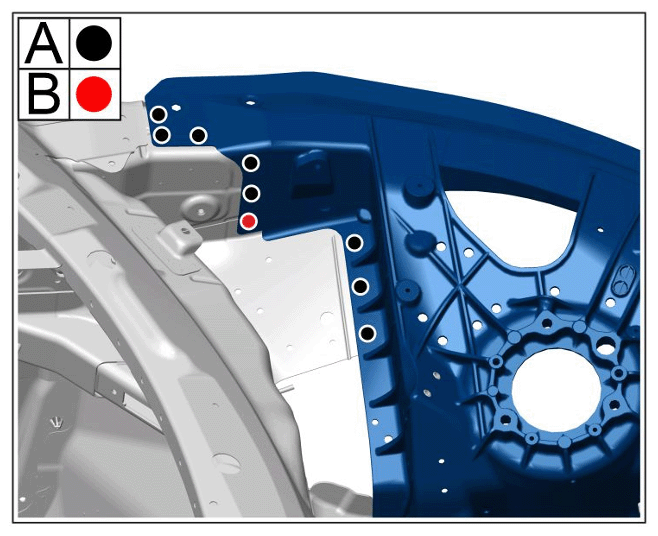

6. Rivet in spring strut mount.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Blind rivets

   A	> BLIND RIVET 999.190.229.01
   B	> BLIND RIVET 999.190.227.01

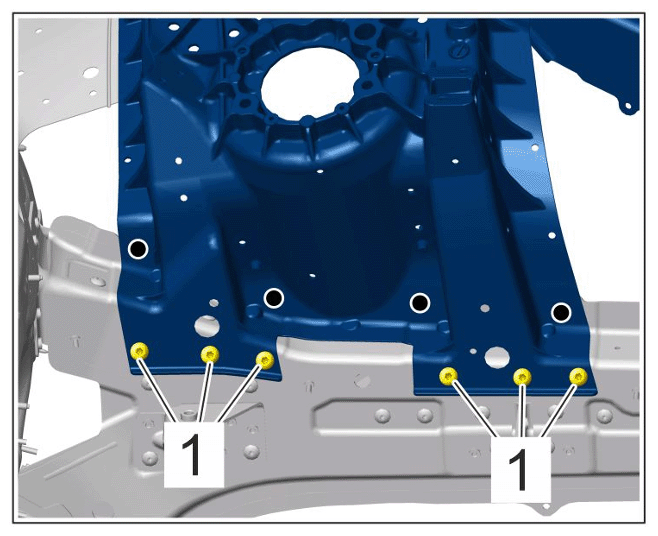

7. Rivet in spring strut mount and screw in self-tapping screws -1-  .

   > 5X00IN24 SETTING SELF-TAPPING SCREWS

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Lower joint areas

   > BLIND RIVET 999.190.227.01

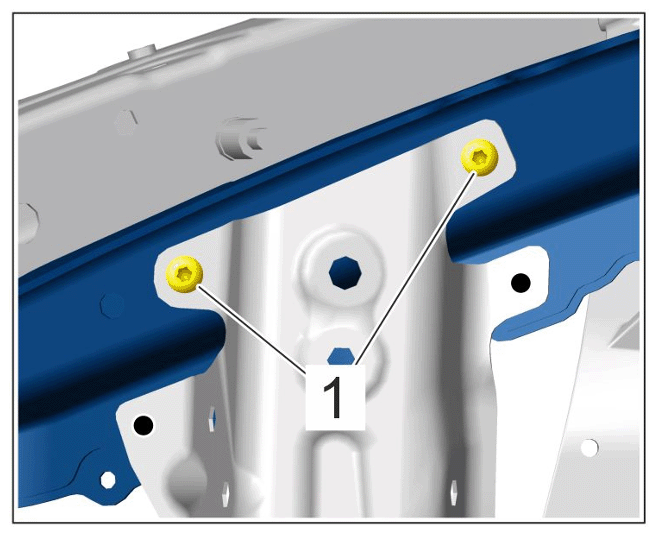

8. Secure spring strut mount.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Joint areas at the top

   1. 8.1 Rivet in spring strut mount. > BLIND RIVET 999.190.229.01
   2. 8.2 Screw in self-tapping screws -1-  .

   > 5X00IN24 SETTING SELF-TAPPING SCREWS

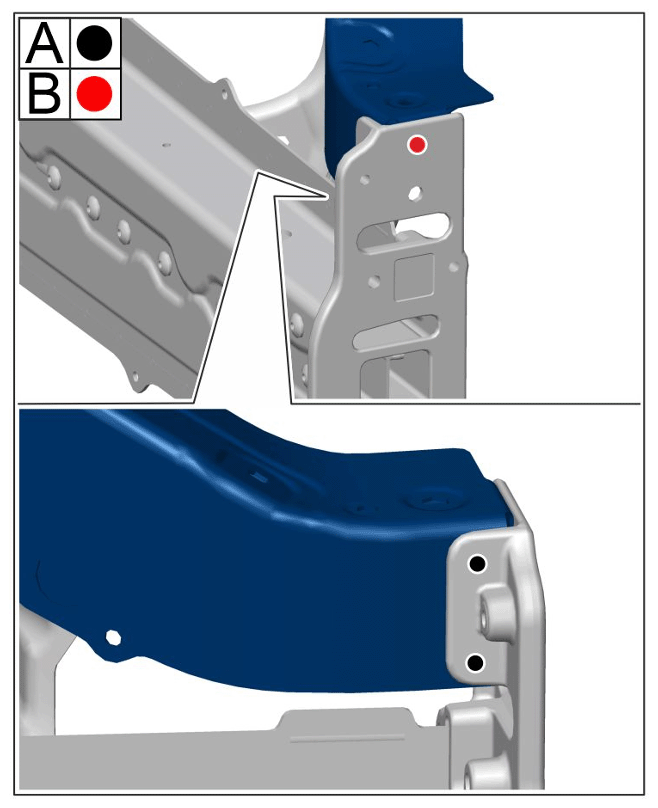

9. Rivet in spring strut mount.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Blind rivets, front

   A	> BLIND RIVET 999.190.230.01
   B	> BLIND RIVET 999.190.228.01

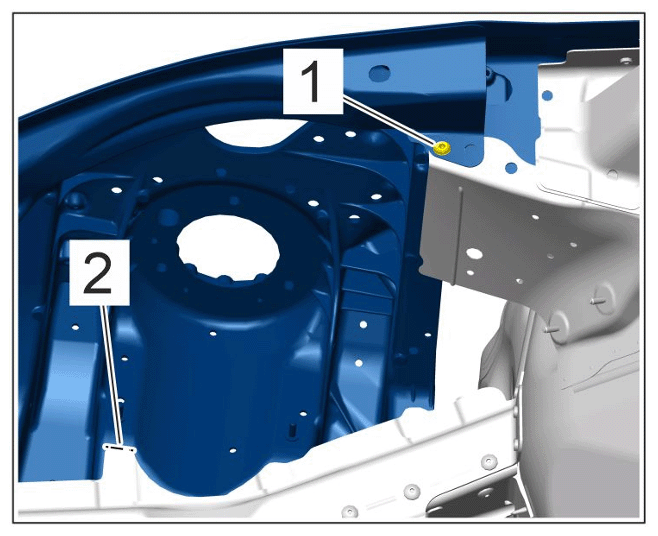

10. Secure spring strut mount.

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Self-tapping screw

    1. 10.1 Screw in self-tapping screw -1-  .

       > 5X00IN24 SETTING SELF-TAPPING SCREWS

    2. 10.2 Apply a full aluminium weld in area -2-  .

       > Welding aluminium
