Disassembling Lock Carrier

WARNING: This page is about a different car, the 2023 Porsche Taycan and 2022 Porsche Taycan. However, it is still accessible from the selected car via links, so may be relevant.

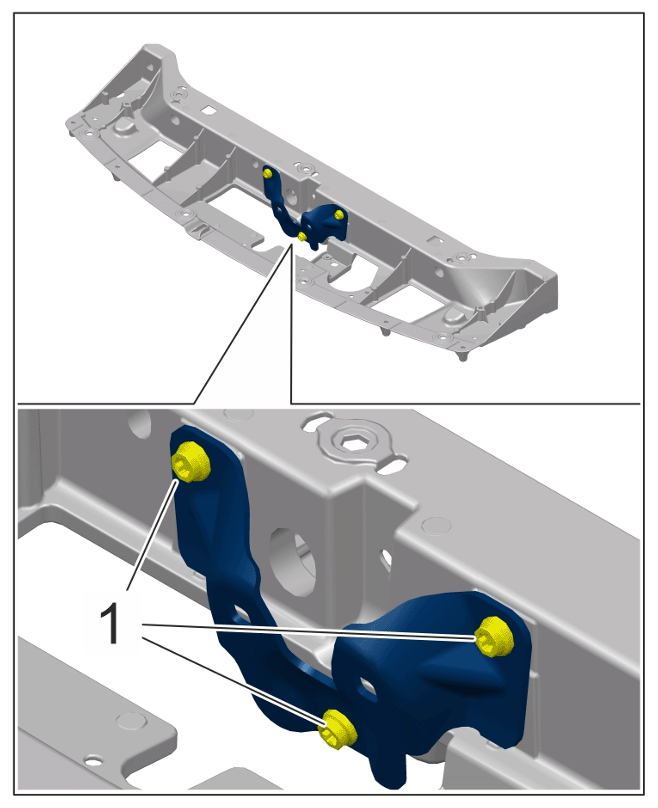

  1. Unscrew screws -1-  on bracket reinforcement.
    G15559791Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Screws
