Technical Values

WARNING: This page is about a different car, the 2023 Porsche Taycan and 2022 Porsche Taycan. However, it is still accessible from the selected car via links, so may be relevant.

Location	Des...	Type	Basic val...

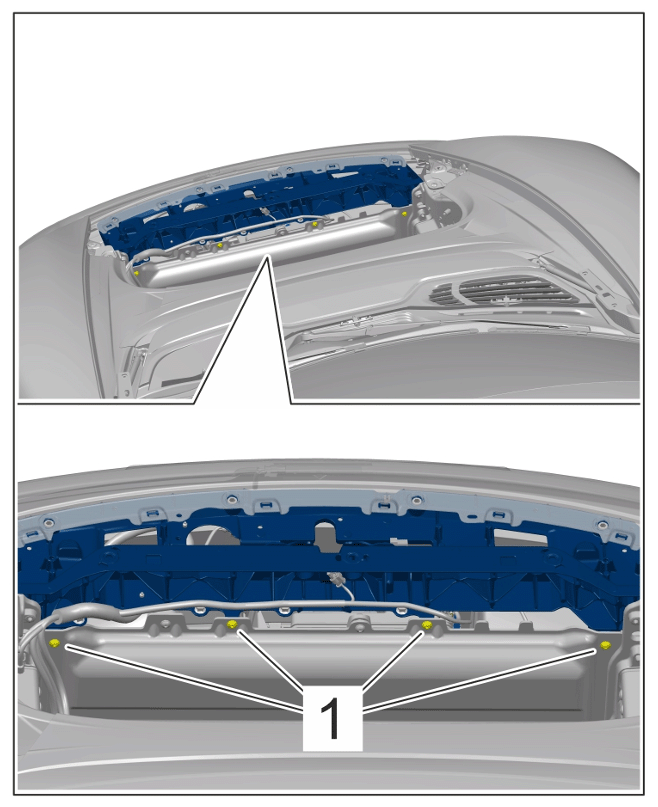

Screws securing pull strap to lock carrier Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws	Item 1	Tightening torque	8 Nm (6 ftlb.)

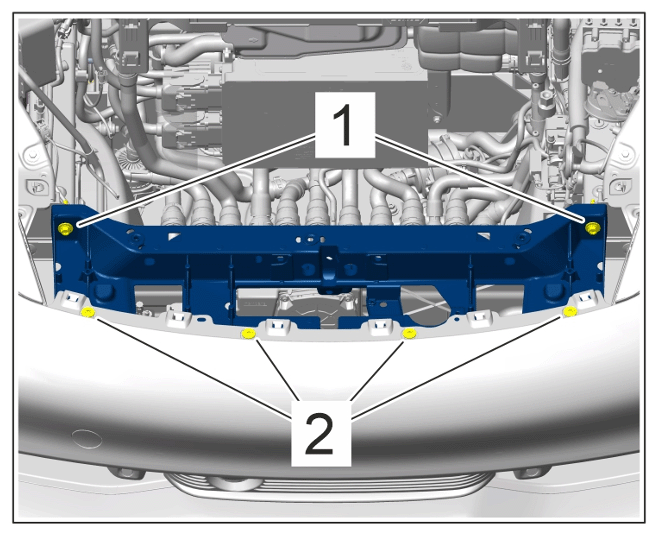

Screws securing lock carrier to impact absorber Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws	Item 1	Tightening torque	20 Nm (15 ftlb.)
Screws securing front apron to lock carrier Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws	Item 2	Tightening torque	5.5 Nm (4 ftlb.)
Screw securing sensor to lock carrier Courtesy of PORSCHE CARS NORTH AMERICA, INC. Front sensor	Item 1	Tightening torque	9 Nm (6.5 ftlb.)

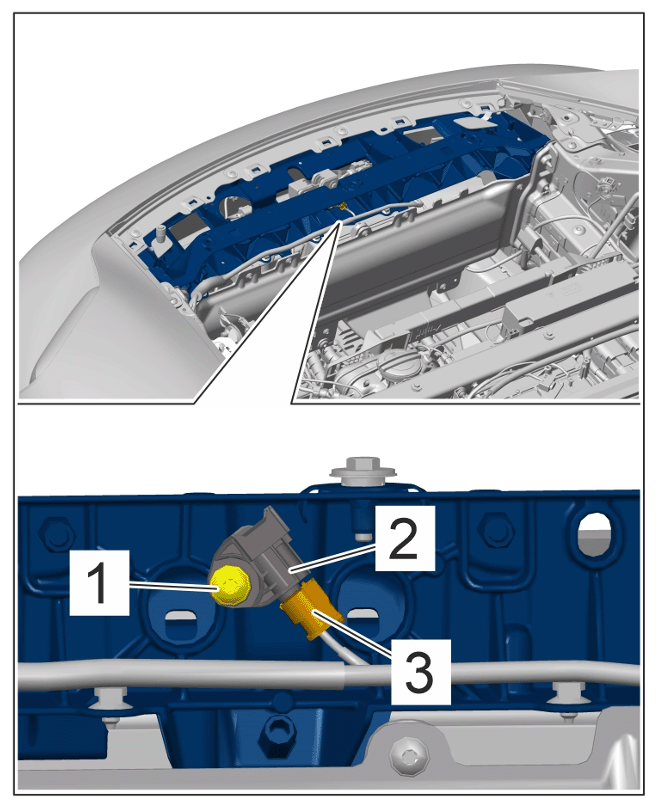

Screw securing washer-fluid reservoir to lock carrier Courtesy of PORSCHE CARS NORTH AMERICA, INC. Washer-fluid reservoir	Item 1	Tightening torque	9 Nm (6.5 ftlb.)
