Removing Lock Carrier

WARNING: This page is about a different car, the 2023 Porsche Taycan and 2022 Porsche Taycan. However, it is still accessible from the selected car via links, so may be relevant.

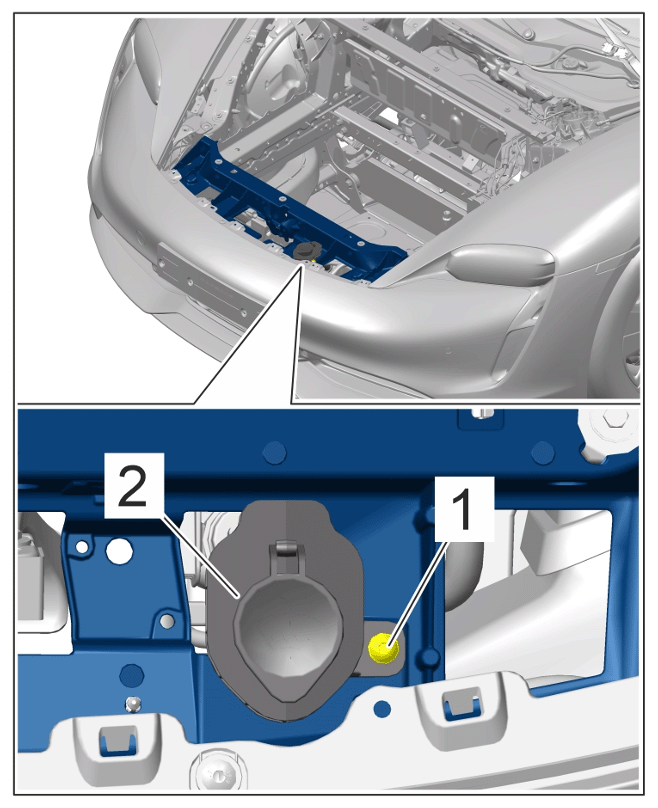

Unscrew screw -1- and pull off washer-fluid reservoir -2- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Washer-fluid reservoir
WARNING:
Improper handling of airbag units
- Triggering of airbag unit.
- System faults can occur.
  → Remove ignition key or remote control (hand-held transmitter) and keep it outside of the transmission range.

  → External power supply must be de-energised.

  → Disconnect the battery and isolate the ground strap so that all contact with a ground carrier is avoided.

  → Wait 1 minute after disconnecting the battery.

  → Only pull off connector on the triggering unit after the waiting time has elapsed.

  → Keep space in front of the airbag unit free.

  → Replace damaged parts.

  → Always set airbag units down with the blow-out opening facing upwards.

  → Do not place any objects on the airbag units.

  → Store airbag units in a safe place.

  → Avoid contact with grease, oil, detergents, liquids or similar substances.

  → Store airbag units in a cool place. Maximum temperature: 90 °C.

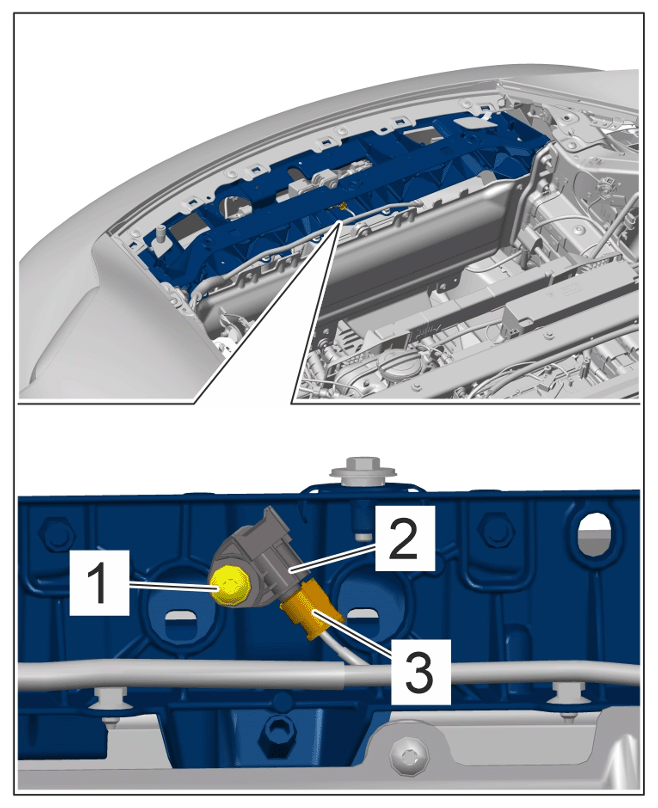

Remove front sensor -2- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Front sensor
1. 2.1 Release and unplug electric plug connection -3- .
2. 2.2 Unscrew screw -1- .
3. 2.3 Remove front sensor -2- .

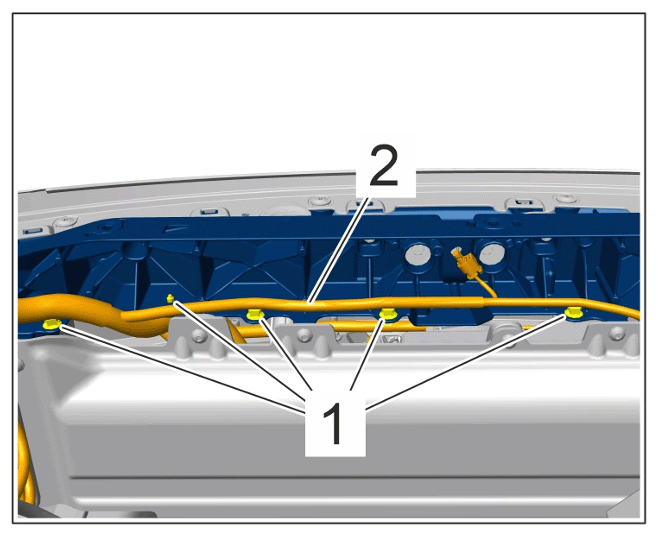

Unclip electric line -2- (-1- ) and set it aside.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Clips

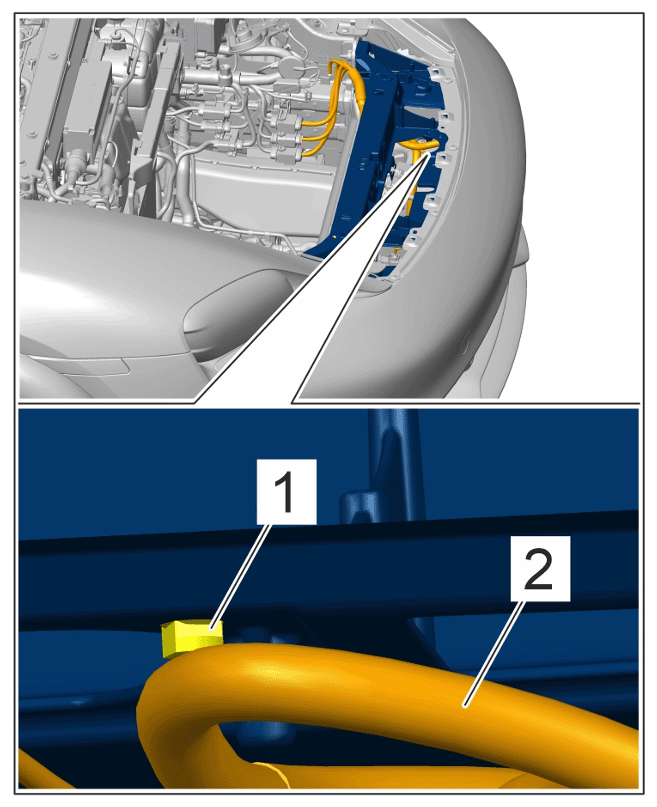

Unclip electric line -2- (-1- ) and set it aside.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Clip

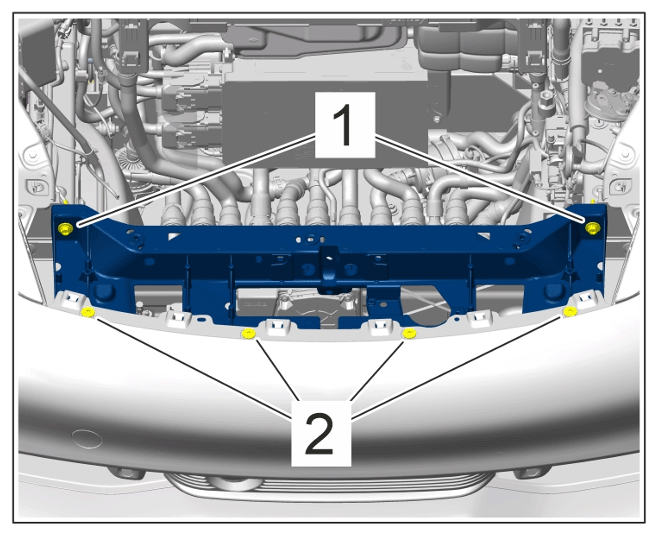

Unscrew and remove screws -1- and -2- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws

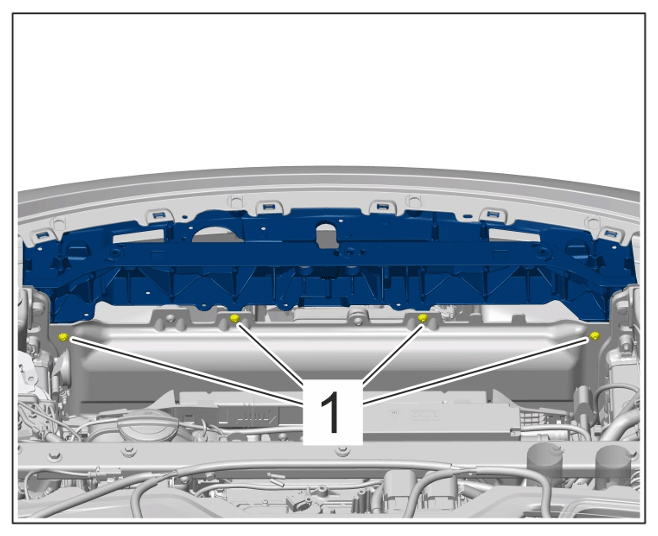

Unscrew and remove screws -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws
Lift front apron and guide out the lock carrier.
