Removing Cross Member

WARNING: This page is about a different car, the 2023 Porsche Taycan and 2022 Porsche Taycan. However, it is still accessible from the selected car via links, so may be relevant.

Information

Some of the repair illustrations show only one side of the vehicle. Naturally, some steps also have to be performed on the opposite side of the vehicle as well. These must be carried out as a mirror image of the steps shown.

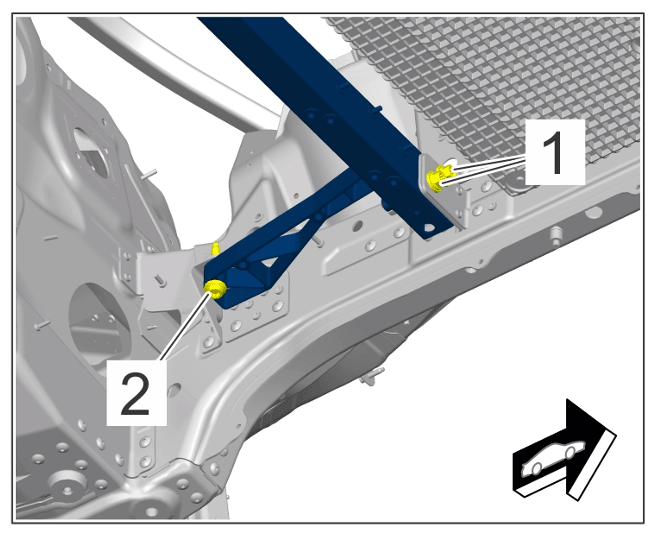

  1. Unscrew and remove screws -1-  and -2-  .
    G15559776Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Screws

  2. Remove cross member.
