Remove Luggage Compartment Liner

WARNING: This page is about a different car, the 2023 Porsche Taycan and 2022 Porsche Taycan. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove luggage compartment light.

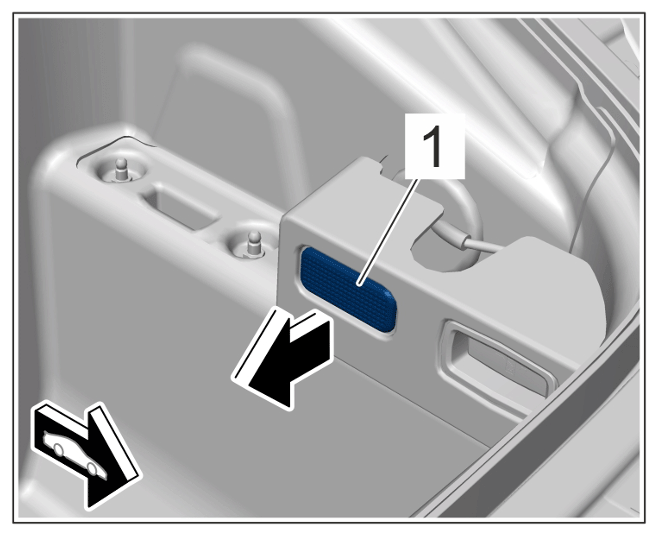

    G15559769Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Luggage compartment light

    1. 1.1 Unclip luggage compartment light -1-  (-Arrow-  ).
    2. 1.2 Release electric plug connection and disconnect it.
  2. Only for vehicles with Trunk Entrapment: Remove Trunk Entrapment switch.

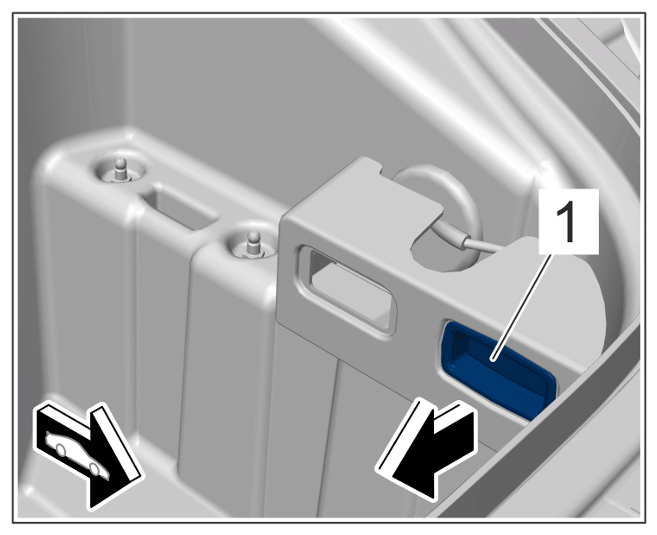

    G15559770Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Trunk Entrapment

    1. 2.1 Unclip Trunk Entrapment switch -1-  (-Arrow-  ).
    2. 2.2 Release and disconnect electric plug connection and guide wiring harness out through the luggage compartment liner.

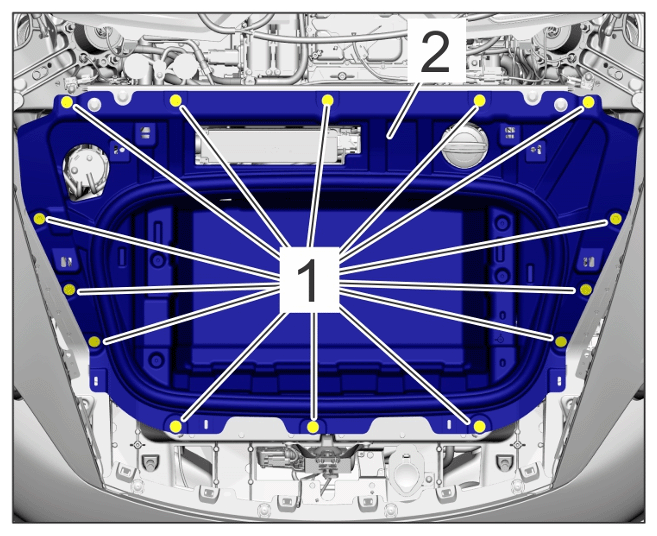

  3. Unscrew screws -1-  and pull out luggage compartment liner -2-  .
G15559771Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Pan
