Filling Oil For Final Drive

Information

• Carefully shake transmission oil container before use  .

1. Unscrew oil filler screw -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

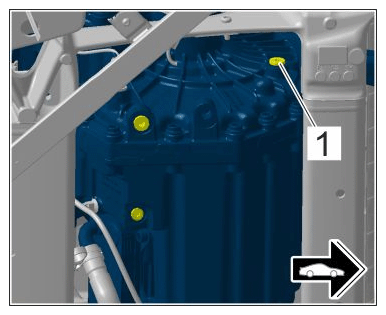

   Oil filler screw on rear axle differential

2. Fill new transmission oil using > VAS 6563 - transmission fluid filler pump set  .

   > Filling capacity 2.55 Liter

3. Fit and tighten new oil filler screw with a new sealing ring.

   > Tightening torque 20 Nm (15 ftlb.)
