39 Final Drive Differential, Differential Lock 2.0L -- Y1A - TAYCAN (Y1A)
>>
WM, 397755 Replacing Servo Motor For Rear-Differential Lock (Angle Transmission)
>>
Technical Values
Technical Values
Location
Description
Type
Basic value
Tolerance 1
Tolerance 2

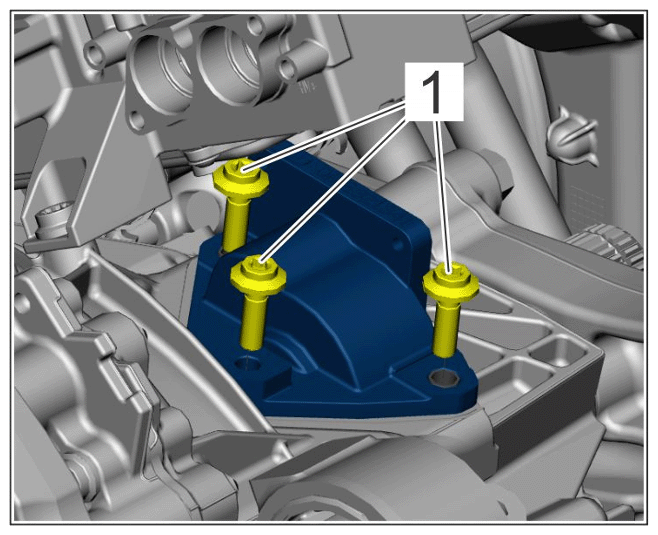

Adapter to housing
Screw, M6 x 35 Item 1
Tightening torque
8 Nm (6 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Adapter for servo motor
Adapter to housing
Screw, M6 x 35 Item 1
Torque angle
65 °
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Adapter for servo motor
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
