Removing Transverse Lock Servo Motor
- Remove servo motor for rear-differential lock -1-
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|

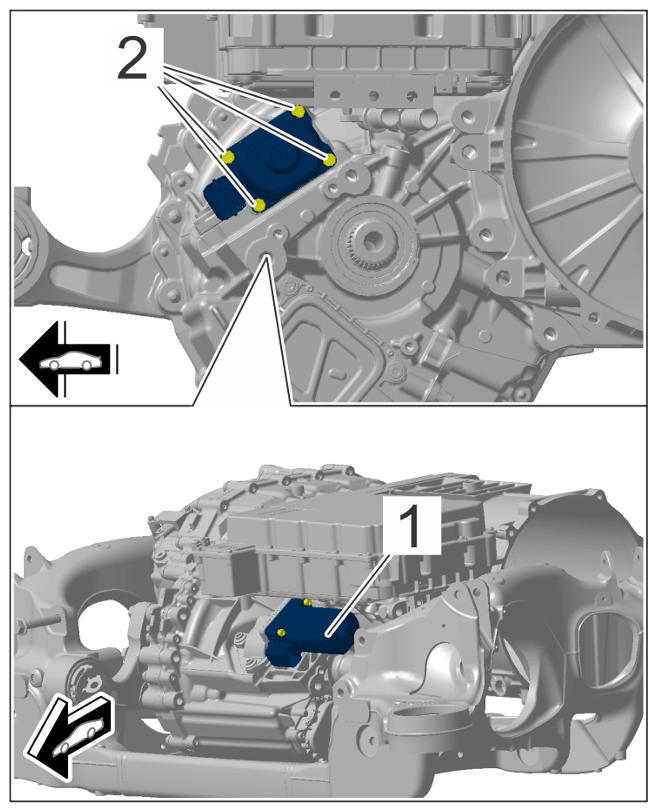

Servo motor for rear-differential lock
- 1.1 Unscrew and remove screws -2-
.
- 1.2 Pull off servo motor for rear-differential lock -1-
.
- 1.3 Replace seal.
