Removing Control Unit For Rear-Differential Lock
NOTE:
NOTIFICATION
Voltage peaks
Voltage peaks
- Risk of damage to electrical load or to the control unit
→ Switch off ignition and keep transmitter key outside of the transmission range (at least 5 m) .
→ Switch off electrical loads before disconnecting or removing them.
Information
Always comply with the regulations for handling ESD-sensitive components!
- Assembly work may only be carried out if the mechanic is wearing the working clothes and shoes approved by Porsche .
- The new part must only be removed from the ESD (electrostatic discharge) protective packaging just before installation and at the position at which the part is to be installed .
- The electrical pins or plug contacts must not be touched .

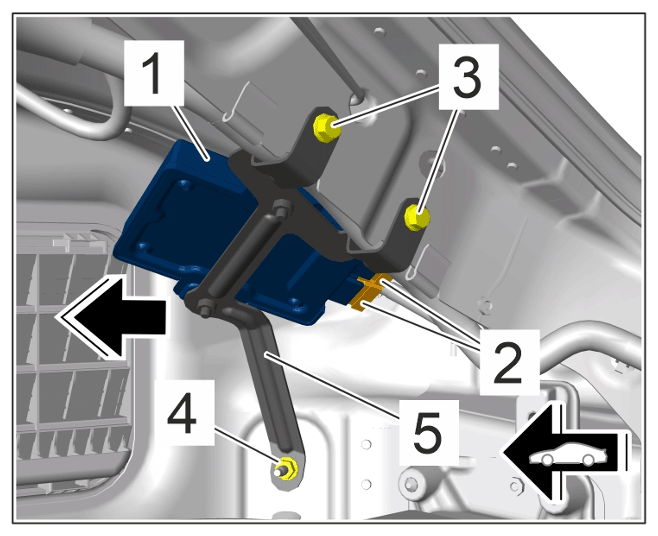

- Loosen control unit for rear-differential lock -1-
.
Electric plug connections
- 1.1 Release and unplug electric plug connections -2- .
- 1.2 Unscrew and remove screws -3- .
- 1.3 Unscrew nut -4- and guide out holder -5- with rear-differential lock control unit -1- .

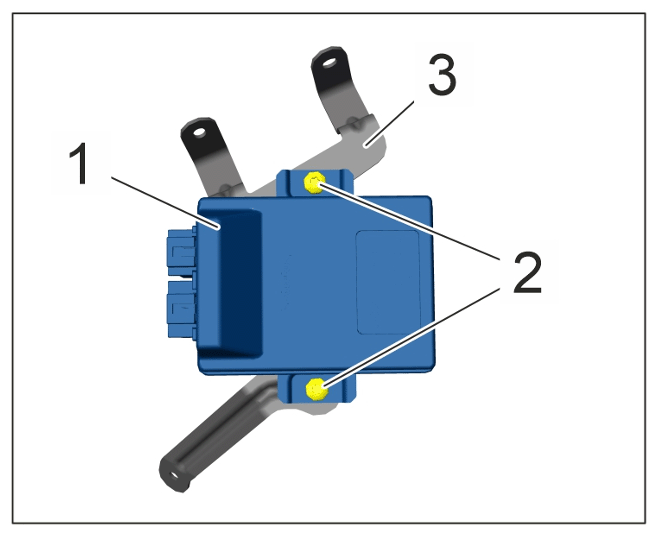

- Unscrew screws -2- and remove control unit for rear-differential lock -1- from holder -3- .
Rear-differential lock control unit
