Removing Rear Final Drive Brackets

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

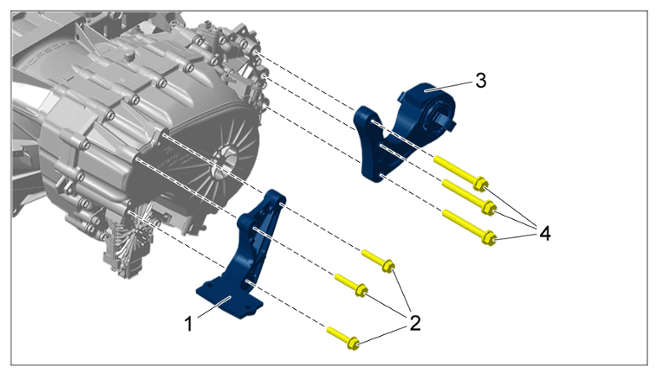

Bracket for rear-axle final drive, right

1. 1.1 Unscrew screws -2-  and -4-  and remove brackets for rear-axle final drive at the right -1-  and -3-  .
2. 1.2 Replace screws -2-  and -4-  .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

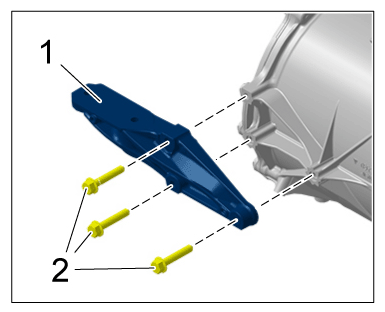

Bracket for electric motor, left

1. 2.1 Unscrew screws -2-  and remove bracket for final drive at the rear left -1-  .
2. 2.2 Replace screws -2-  .

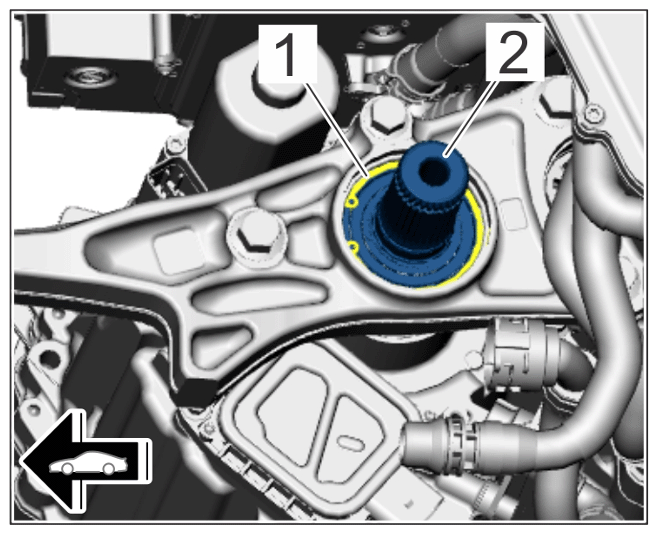

1. 3.1 Remove the circlip -1-  , then remove the gear shaft -2-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

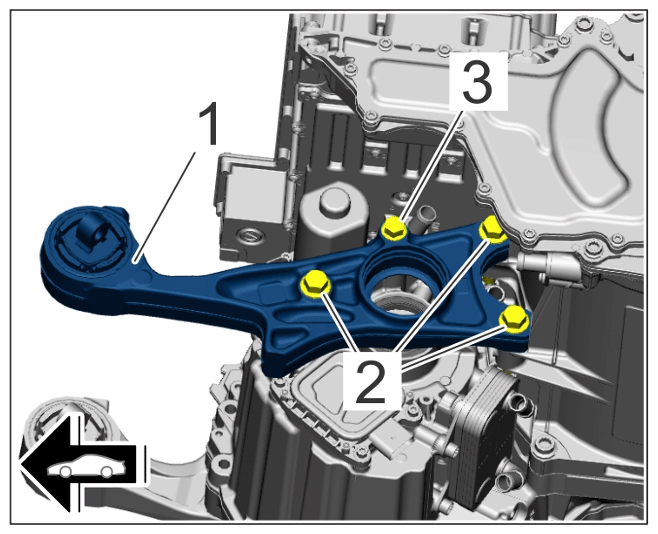

   Front shaft bracket

2. 3.2 Unscrew screws -2-  and remove front bracket -1-  .

   Replace screws -2 and 3-  .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Front left bracket for rear-axle final drive
