Installing Rear Final Drive Brackets

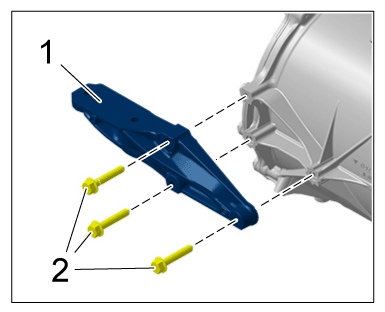

1. Install bracket -1-  for electric motor at the rear left.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Bracket for electric motor, left

   1. 1.1 Tighten bracket for final drive -1-  using new screws -2-  .

   > Initial tightening 50 Nm (37 ftlb.)

   > Final tightening torque angle 60 °

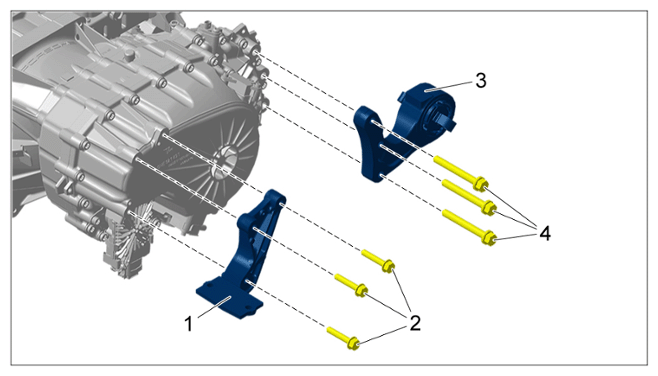

2. Install brackets -1-  and -3-  for rear-axle final drive at the right.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Bracket for rear-axle final drive, right

   1. 2.1 Tighten bracket for final drive -1-  using new screws -2-  .

      > Initial tightening 50 Nm (37 ftlb.)

      > Final tightening torque angle 60 °

   2. 2.2 Tighten bracket for final drive -3-  using new screws -4-  .

      > Initial tightening 70 Nm (52 ftlb.)

      > Final tightening torque angle 90 °

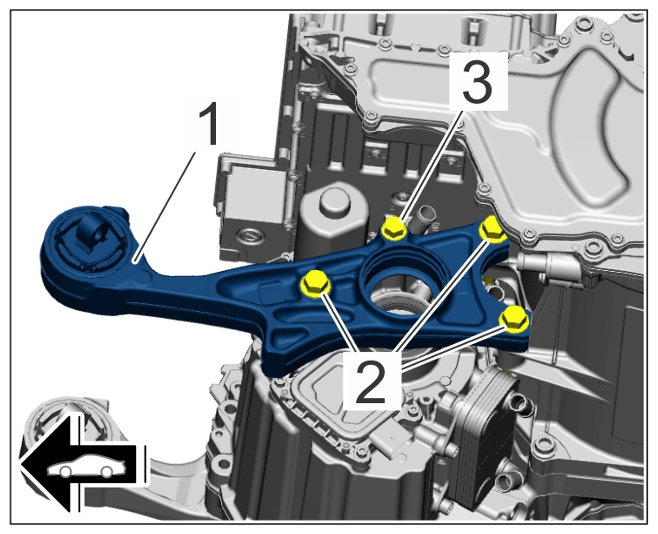

3. Install front carrier.
   1. 3.1 Fit brackets -1-  . Fit and tighten screws.

      Screws -2-  .

      > Initial tightening 70 Nm (52 ftlb.)

      > Final tightening torque angle 90 °

      Screw -3-

      > Initial tightening 60 Nm (44 ftlb.)

      > Final tightening torque angle 90 °

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Front left bracket for rear-axle final drive

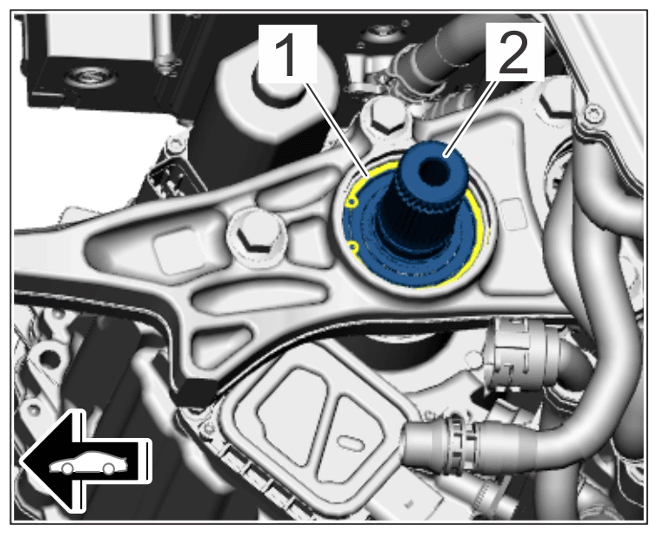

   2. 3.2 Insert the gear shaft carefully, then mount the circlip.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Front left shaft bracket
