Subsequent Work

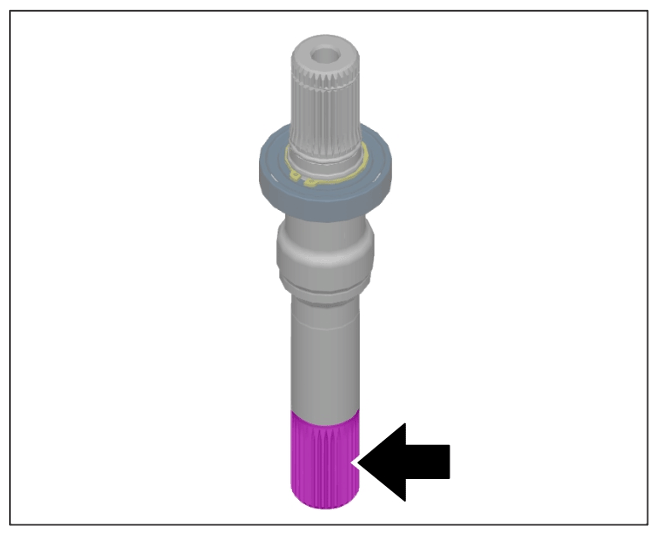

Lightly grease shaft spines -Arrow- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Shaft splines

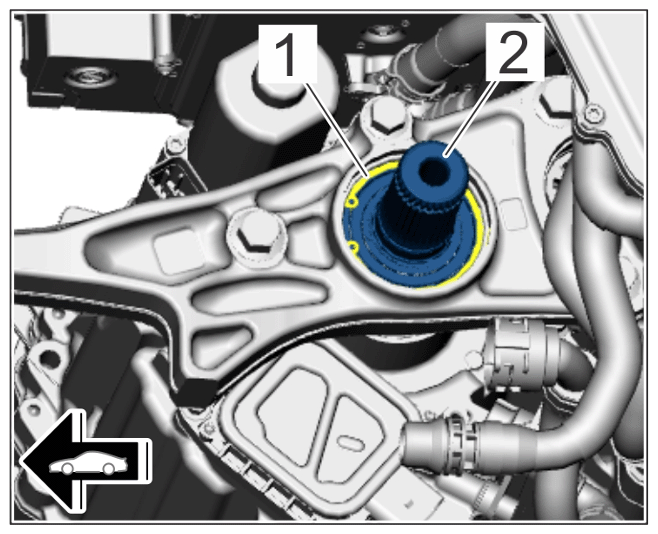

Install shaft -2- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Front shaft bracket

Information

When installing the shaft, make sure not to damage the radial shaft seal. A damaged radial shaft seal must be replaced.

> 392255 REPLACING SEALING RING FOR REAR HALFSHAFT FLANGE
1. 2.1 Carefully insert shaft -2- with bearing into the transmission.
2. 2.2 Fit new circlip -1- .
Install rear left drive shaft.
> 422119 REMOVING AND INSTALLING DRIVE SHAFT
