Replacing Sealing Ring For Rear Left Halfshaft Flange

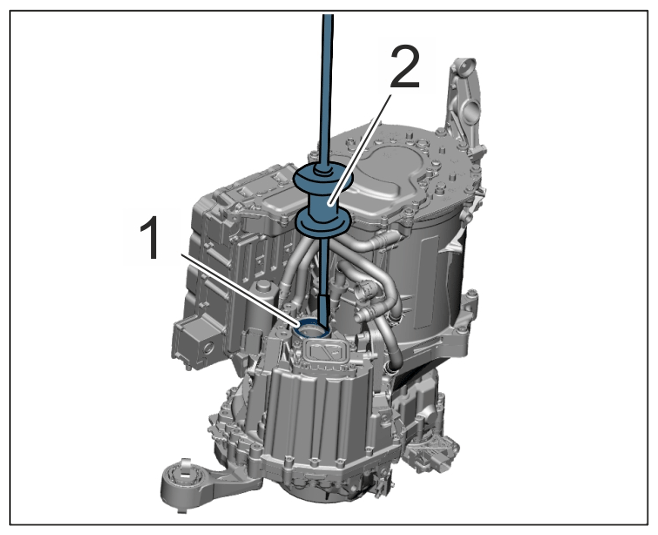

1. Remove old sealing ring -1-  using > VAS 6965 - puller set-2-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Using puller set

2. Tap in new sealing ring as far as it will go using > T90021 - thrust piece-1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Using special tool T90021

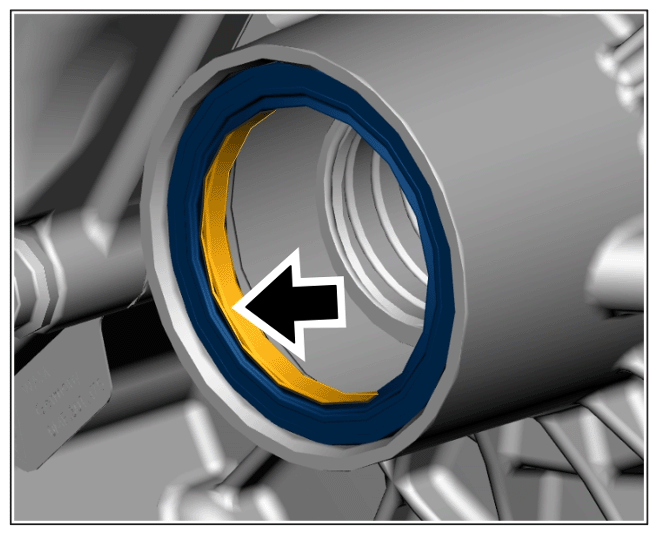

3. Fill space between the dust and sealing lips -Arrow-  with sealing grease. For allocation, see Parts Information - PET.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Sealing grease on radial shaft seal
