Installing Rear Proximity Sensor Antenna

Information

The rear proximity sensor antenna must be replaced following removal.

1. Clean bonding surface on proximity sensor antenna using isopropanol.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

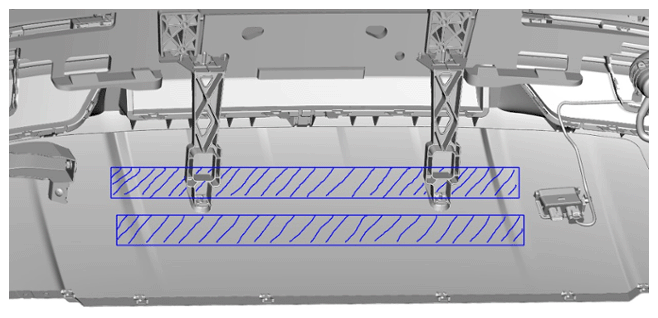

   Bonding surface on proximity sensor antenna

2. Connect electric connection for proximity sensor antenna to proximity sensor control unit.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

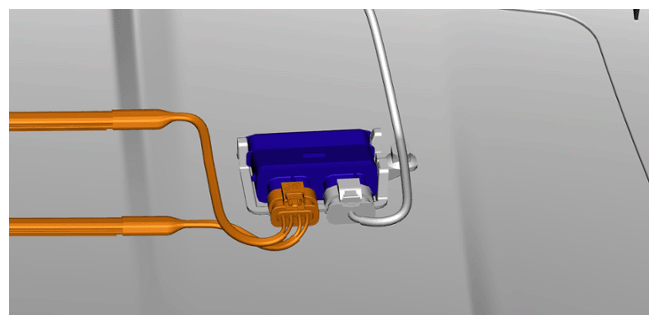

   Electric connection for proximity sensor antenna

3. Stick on proximity sensor antenna.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

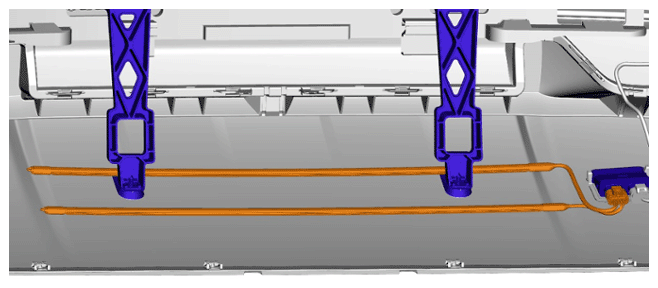

   Sticking on proximity sensor antenna

   1. 3.1 Stick proximity sensor antenna before and behind rear panel mounting in parallel with the rear panel.
   2. 3.2 Press proximity sensor antenna firmly onto the rear panel.
