Removing Rear Lock Upper Part

Information

• When removing the upper part of the lock using a closing aid, first disconnect the plug connection for the power supply.
• This prevents the closing aid motor from starting up while you are disconnecting the plug connection/control system.

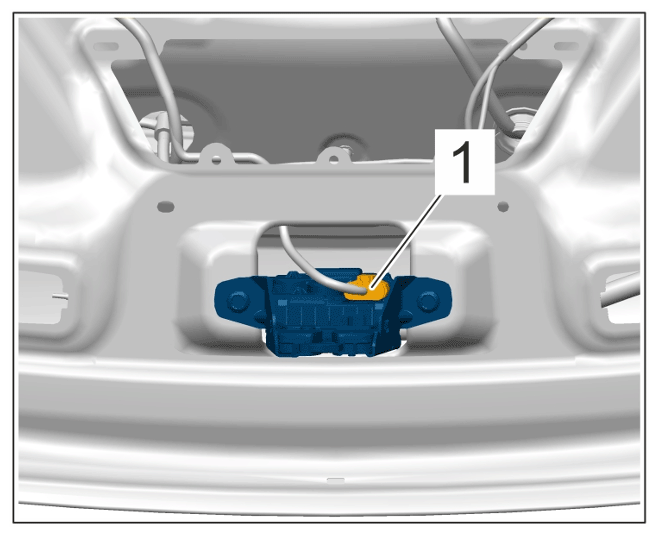

1. Release and unplug electric plug connection -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Electric plug connection

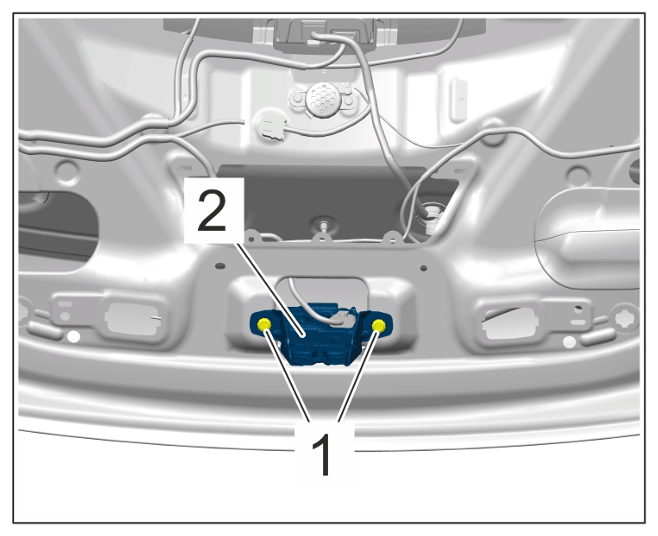

2. Unscrew screws -1-  and remove upper part of rear lock -2-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Screws on upper part of lock

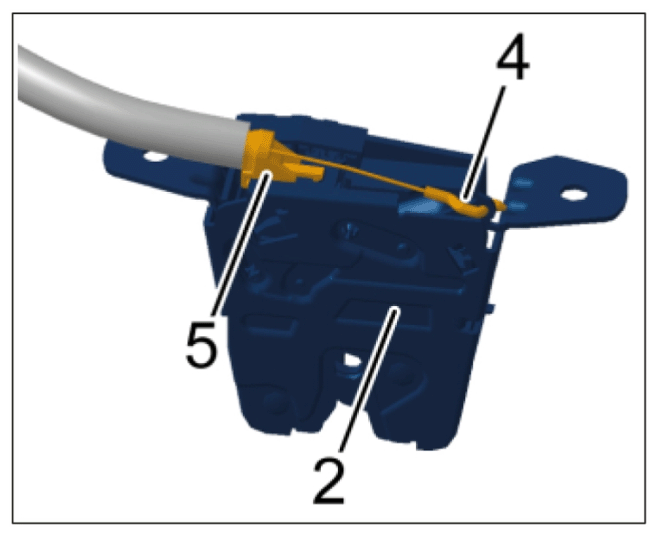

3. Unclip wire cable -4-  at the holder -5-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Unclipping wire cable

   1. 3.1 Disengage wire cable -4-  from rear lock upper part -2-  .

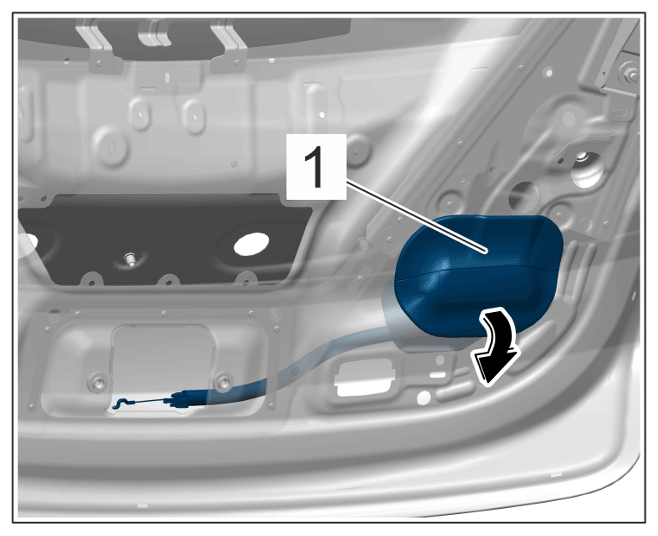

4. Remove foam cap -1-  until the electric plug connection is accessible.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Foam cap

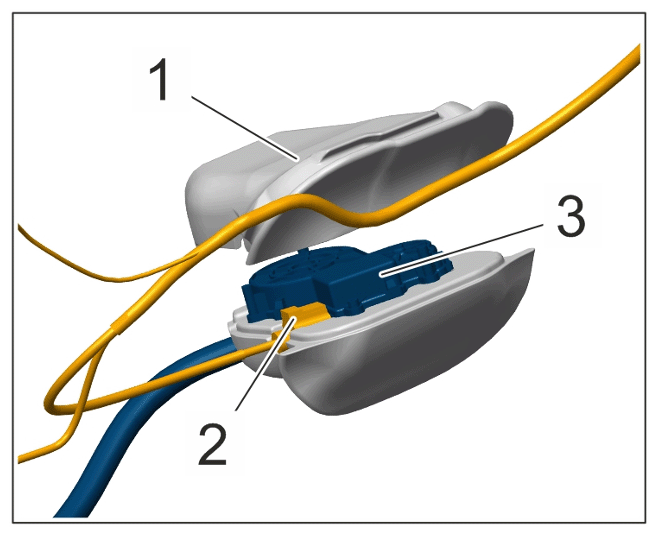

5. Open foam cap -1-  , release electric plug connection -2-  and remove closing aid -3-  .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Foam cap
