Removing Rear Lid Release Switch

NOTE: Voltage peaks
  • Risk of damage to electrical load or to the control unit

    → Switch off ignition and keep transmitter key outside of the transmission range (at least 5 m).

    → Switch off electrical loads before disconnecting or removing them.

  1. Remove rear lid release switch -1-  .

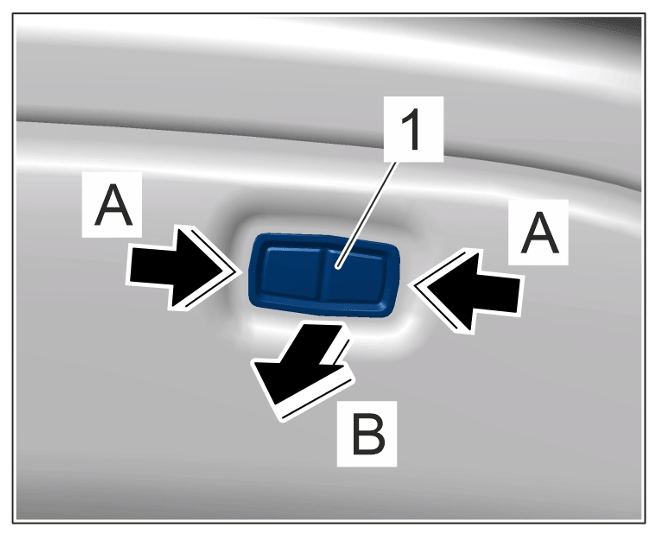

    G15563378Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Rear lid release switch

    1. 1.1 Unclip rear lid release switch -1-  using a suitable tool -arrows A-  .
    2. 1.2 Guide out rear lid release switch -1-  (-arrow B-  ) and release and disconnect electric plug connection.
    3. 1.3 Remove rear lid release switch.
