Removing Actuating Cylinder For Rear Lid

NOTE: Voltage peaks

Risk of damage to electrical load or to the control unit
→ Switch off ignition and keep transmitter key outside of the transmission range (at least 5 m).

→ Switch off electrical loads before disconnecting or removing them.

Remove actuating cylinder for rear lid -1- .

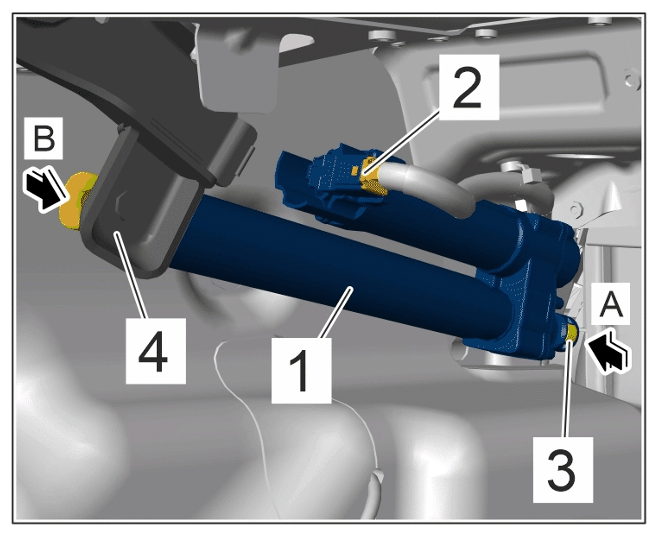

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Actuating cylinder for rear lid
1. 1.1 Release electric plug connection -2- and disconnect it.
2. 1.2 Clamps -3 and 4- and release -Arrows A and B- .
3. 1.3 Unclip actuating cylinder for rear lid -1- from rear lid hinge.
4. 1.4 Remove actuating cylinder for rear lid -1- .
