Technical Values

Location	Description	Type	Basic value

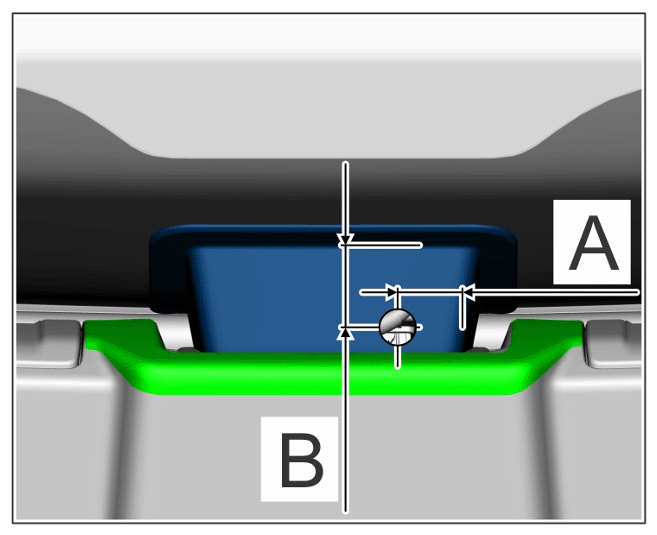

Position of bore for emergency release	Item A	Length	20 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Position of bore for emergency release
Position of bore for emergency release	Item B	Length	30 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Position of bore for emergency release

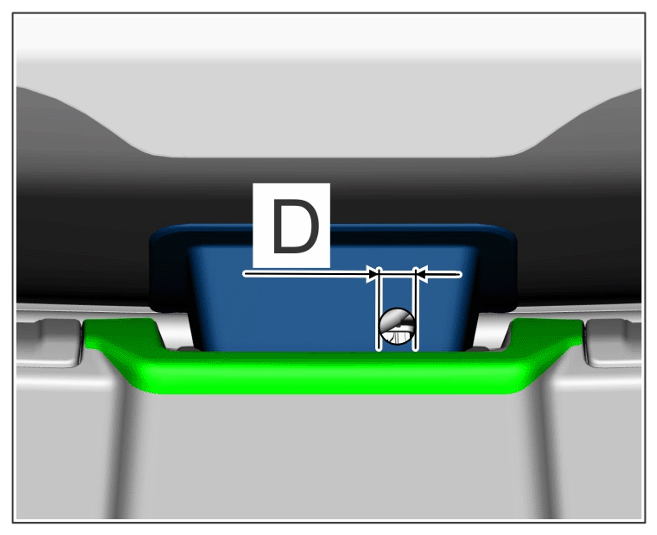

Diameter of bore for emergency release	Item D	Length	12 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Diameter of bore for emergency release
