Removing Mechanical Power Supply Flap (Module)

Information

The component cannot be removed without damaging it and must always be replaced.

1. Open mechanical power supply flap (module).

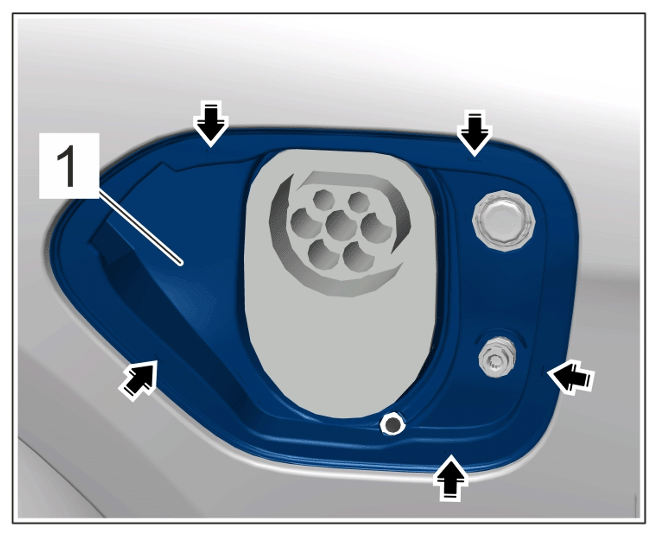

2. Pierce mechanical power supply flap (module) -1-  at the marked positions -Arrows-  using a slotted screwdriver and unlock it.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Mechanical power supply flap (module)

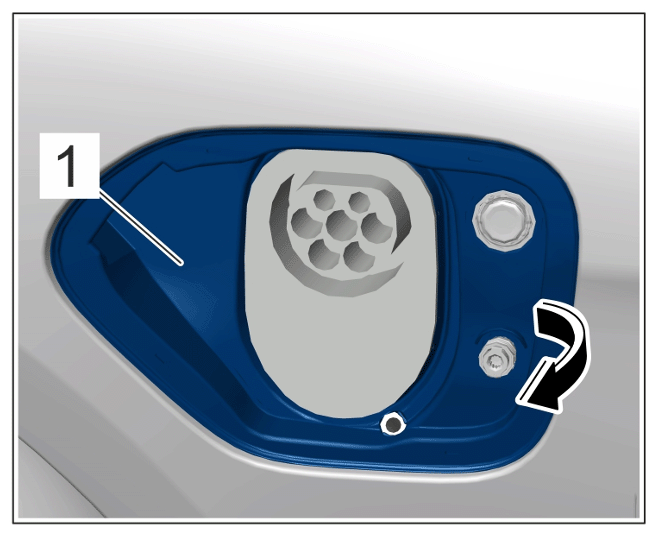

3. Swivel out mechanical power supply flap (module) -1-  (-Arrow-  ) until the electric plug connections are accessible.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Mechanical power supply flap (module)

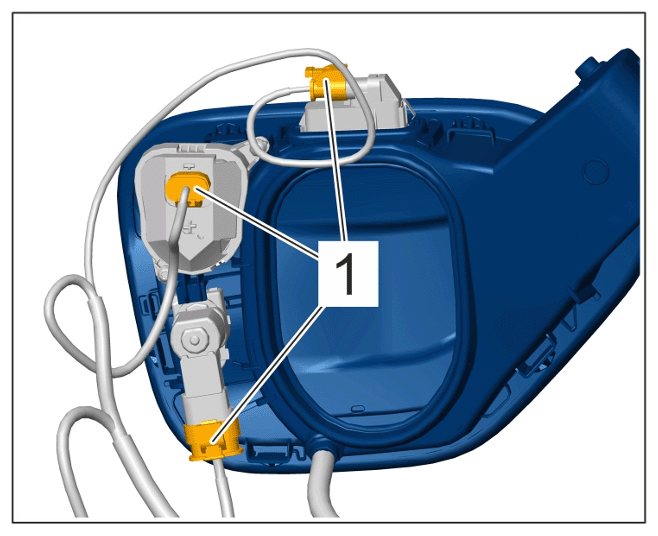

4. Release and disconnect electric plug connections -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Electric plug connections

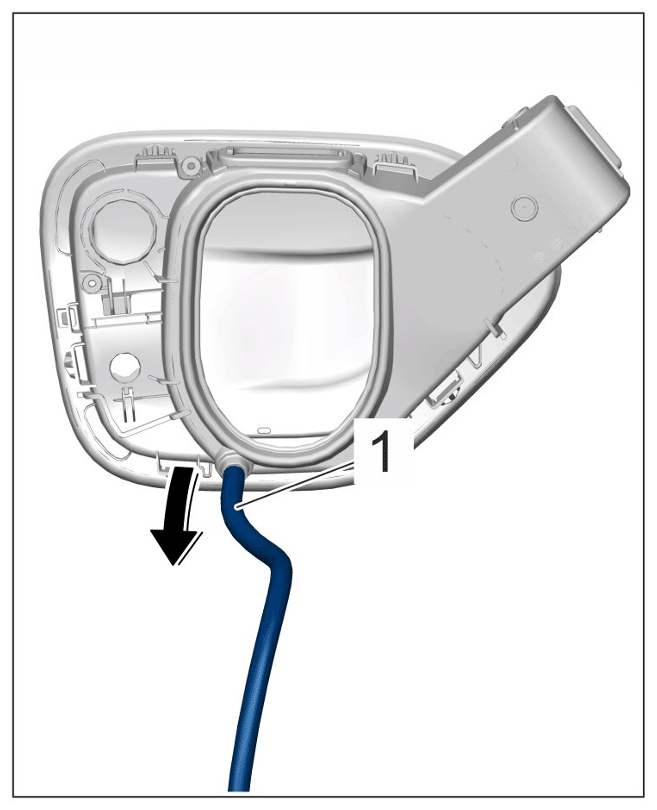

5. Disconnect water drain hose for mechanical power supply flap (module) -1-Arrow-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Drain hose for mechanical power supply flap (module)

6. Remove mechanical power supply flap (module).

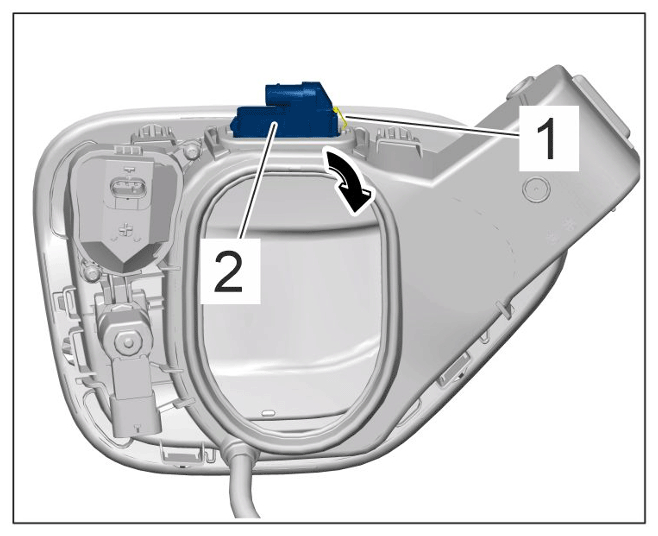

7. Release clip -1-  , swivel out lighting for mechanical power supply flap (module) -2-  and remove it -Arrow-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Lighting for mechanical power supply flap (module)

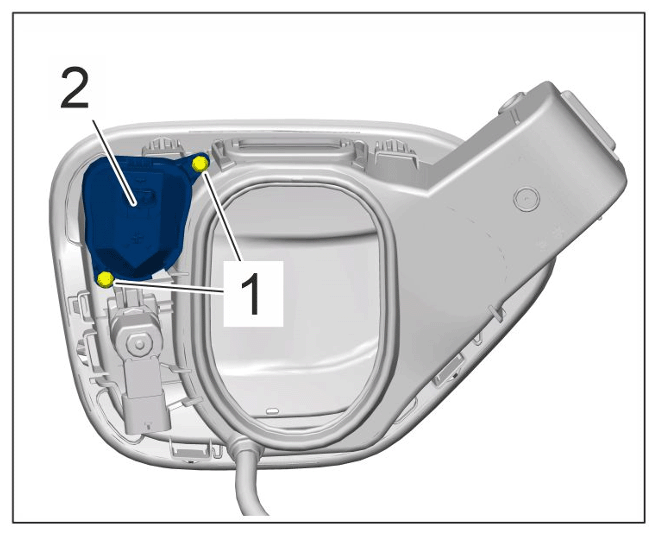

8. Unscrew screws -1-  and remove holder for mechanical power supply flap (module) -2-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Holder for mechanical power supply flap (module)

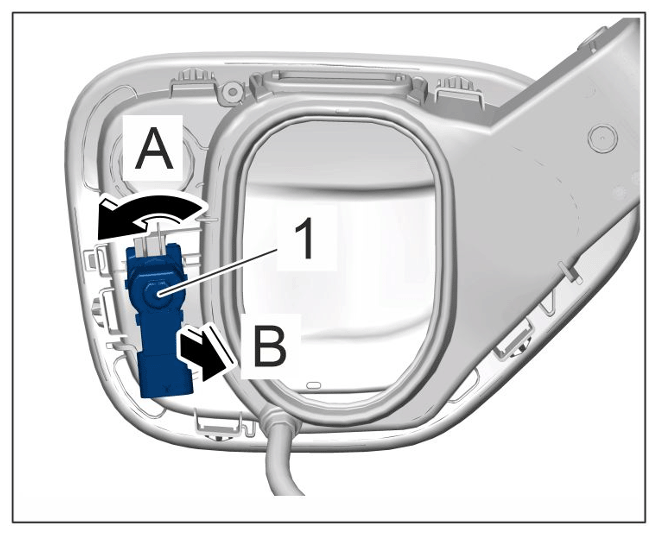

9. Turn actuator for mechanical power supply flap (module) -1-  90°, release -arrow A-  and remove -arrow B-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Locking mechanical power supply flap (module)
